HP Z24n G3 - Illustrated Parts Catalog; Major Component Identification

8
3 Illustrated parts catalog

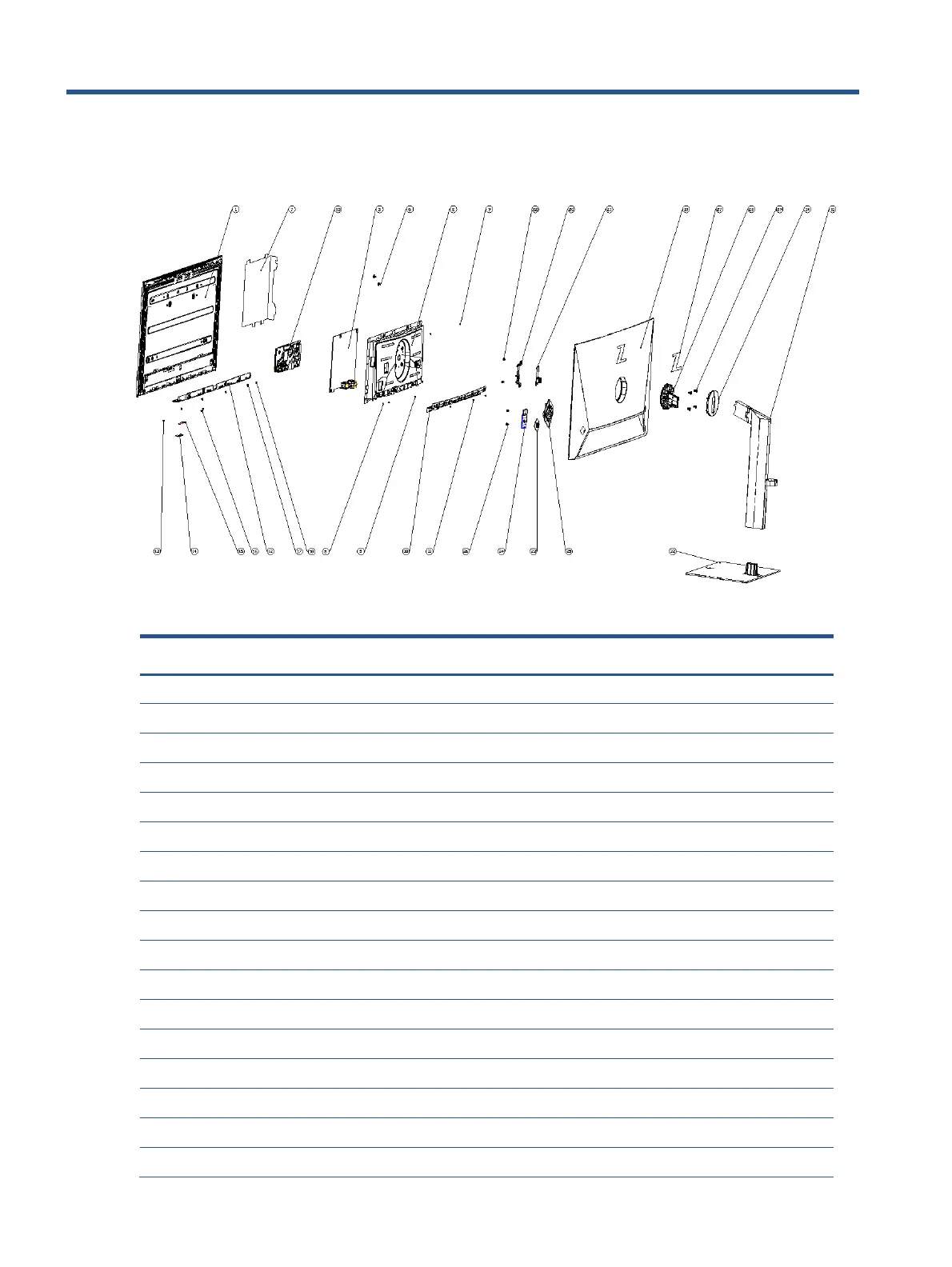

To identify the monitor major components, use this illustration and table.
Table 3-1: Monitor major components and their descriptions
Item
Description
Qty
1
LCM Module Z24n G3
1
2
Main Chassis Bracket Z24n G3
1
3
Power Board Z24n G3
1
4
Interface Board Z24n G3
1
5
Screw M3*7.5 Tapping Metal
1
6
Screw_Cap Head_M4*8_CHQ1018
2
7
Power Mylar Z24n G3
1
8
Screw Double Thread_Flat_M3_10
2
9
Screw Mac Wafer M3*0.5*L4NI
4
10
IO Cover Z24n G3
1
11
Screw MAc Wafer M3*0.5*L4NI
3
12
Bezel Bottom Z24n G3
1
13
Power_Lens_Z24f_Z24_Z27
1
14
Power_Key_Z24f_Z24_Z27
1
15
Power Key Board Z Series
1
16
Screw_Tapping_None_Flat_0.2mm_Head
1
17
Screw_M2×2.7×0.8T_U2419H
3
