4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions” sections in
the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare the area
for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

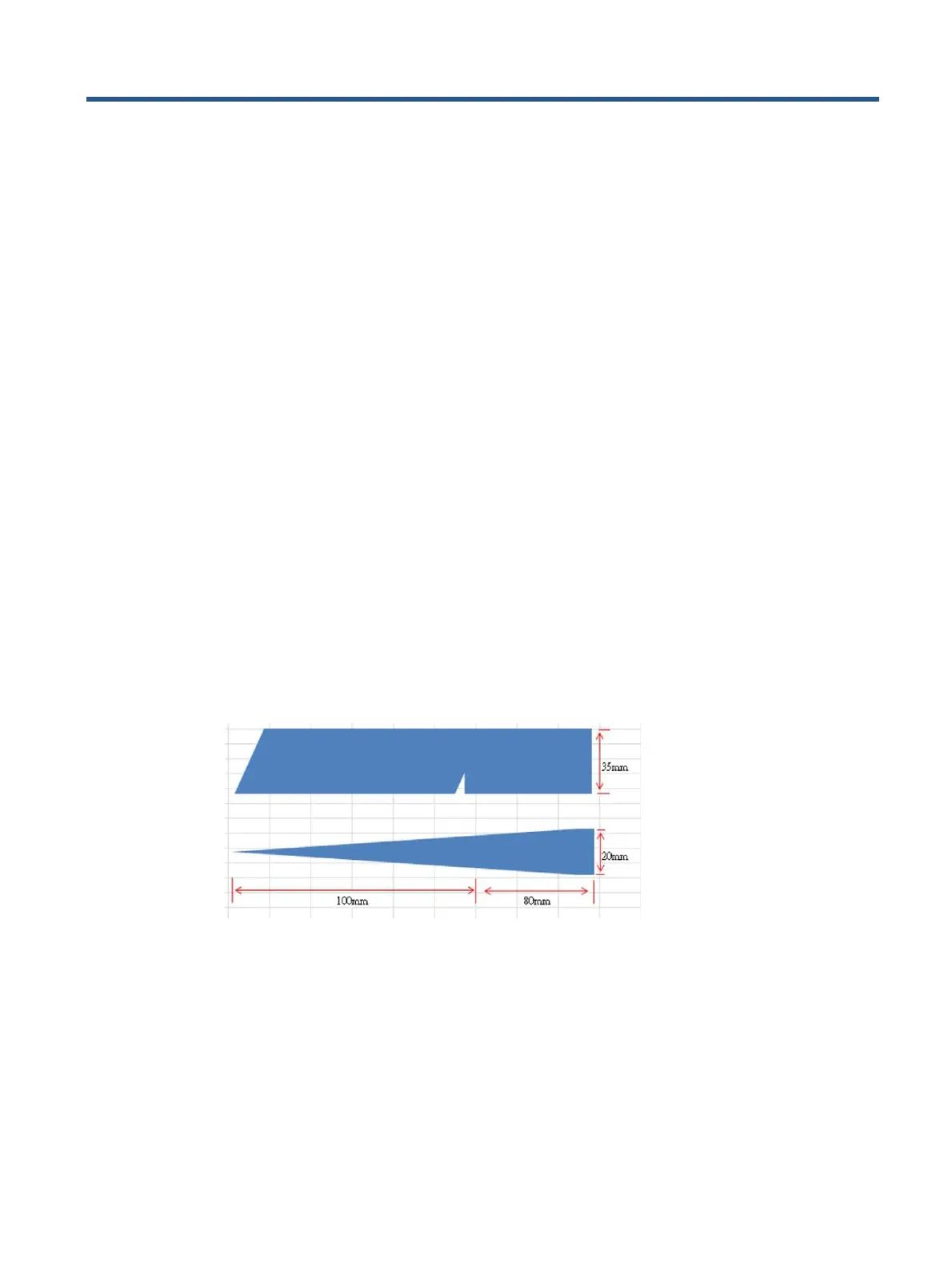

 Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
1) Pull the release button to remove Stand Base From Display Head

HP Z24n G3 Specifications

General

HD type	WUXGA
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Viewable size, vertical	324 mm
Contrast ratio (typical)	1000:1
Display number of colors	-
Display diagonal (metric)	61 cm
Viewable size, horizontal	518.4 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
HDMI	Yes
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Sustainability certificates	ENERGY STAR
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Number of OSD languages	10
Panel mounting interface	100 x 200 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	415 mm
Package width	625 mm
Package height	142 mm
Package weight	7600 g
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	63 W
Power consumption (standby)	0.5 W
Power consumption (typical)	28 W
Product color	Silver
Heavy metals free	Hg (mercury)
Market positioning	Business
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	195 mm
Height (with stand)	521.4 mm
Weight (with stand)	4900 g
Depth (without stand)	38.5 mm
Width (without stand)	531.7 mm
Height (without stand)	342.9 mm
