HP Z24q G3 User Manual

9
 CAPXON: www.capxongroup.com

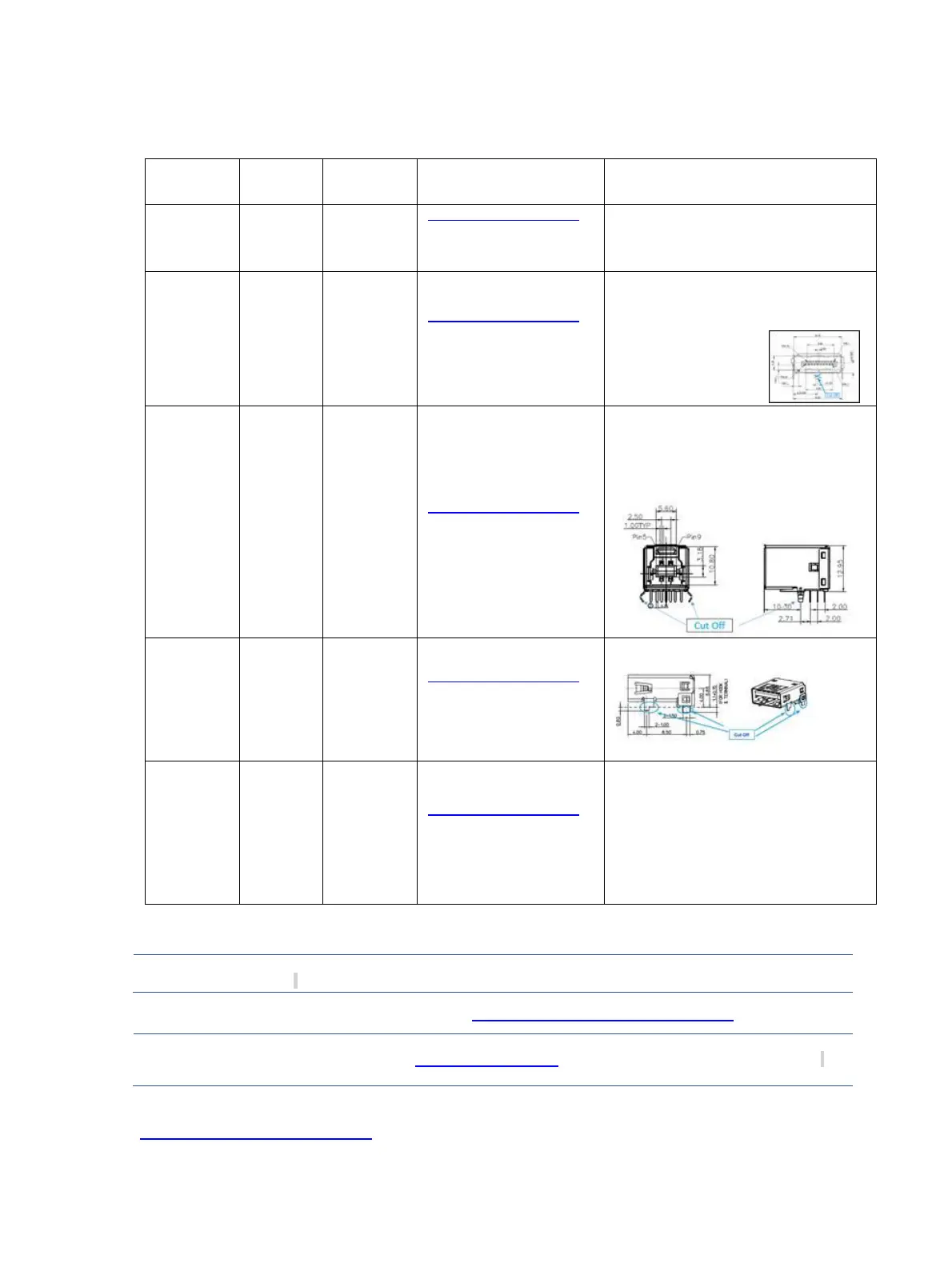

Connectors by manufacturer
Component
description
Location
identifier
Component
distributor
Distributer part number
Remark
HDMI
HDMI1
Switchcraft
Inc.
https://www.digikey.com
PN:
137-RAHHD19TR-ND
1.Modify the rear cover I/O metal and
plastic.
DP
DP1
DP2
Molex
https://www.digikey.com
PN:
WM14328DKR-ND
1. Only DP1.1
2. Modify the rear cover I/O metal
3.Cut off the through hole
USB-B
USB1
Amphenol
ICC
https://www.digikey.com
PN:AE11189-ND
1. Modify the rear cover I/O metal
and plastic.
2. Cut off the Pin as below
USB-A
USB2
USB3
Molex
https://www.digikey.com
PN:
WM10413TR-ND
1.Cut off the Pin as below
USB-A
USB4
USB5
Molex
https://www.digikey.com
PN:
WM10413TR-ND
● 1. Modify the rear cover I/O metal
and plastic.
● 2. Change the height from 15mm
to 11.5mm
● 3. Cut off the Pin as below
NOTE: The connector may need to be modified to meet functionality, regulatory and safety requirements if
it is not an exact match.
You can purchase cables from the HP part store at https://partsurfer.hp.com/Search.aspx.
NOTE: HP continually improves and changes product parts. For complete and current information about
supported parts for your computer, go to http://partsurfer.com, select your country or region, and then
follow the on-screen instructions.
Internal and External Power Supplies are available for purchase from the following EU distributor: EET
https://www.eetgroup.com/en-eu/

HP Z24q G3 Specifications

General

Haze rate	25 %
Color depth	10 bit
Color gamut	99 %
Pixel pitch	0.21 x 0.21 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	90 Hz
Display number of colors	1.07 billion colors
Digital vertical frequency	50 - 90 Hz
Digital horizontal frequency	30 - 140 kHz
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
Product color	Silver
Market positioning	Business
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	74 W
Power consumption (standby)	0.5 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
DisplayPort version	1.4
Package depth	141 mm
Package width	625 mm
Package height	373 mm
Package weight	7400 g

Weight and Dimensions

Depth (with stand)	195 mm
Width (with stand)	538.4 mm
Height (with stand)	489.3 mm
Weight (with stand)	4800 g
Depth (without stand)	38.5 mm
Height (without stand)	313.7 mm
