HP Z24q G3 User Manual

13

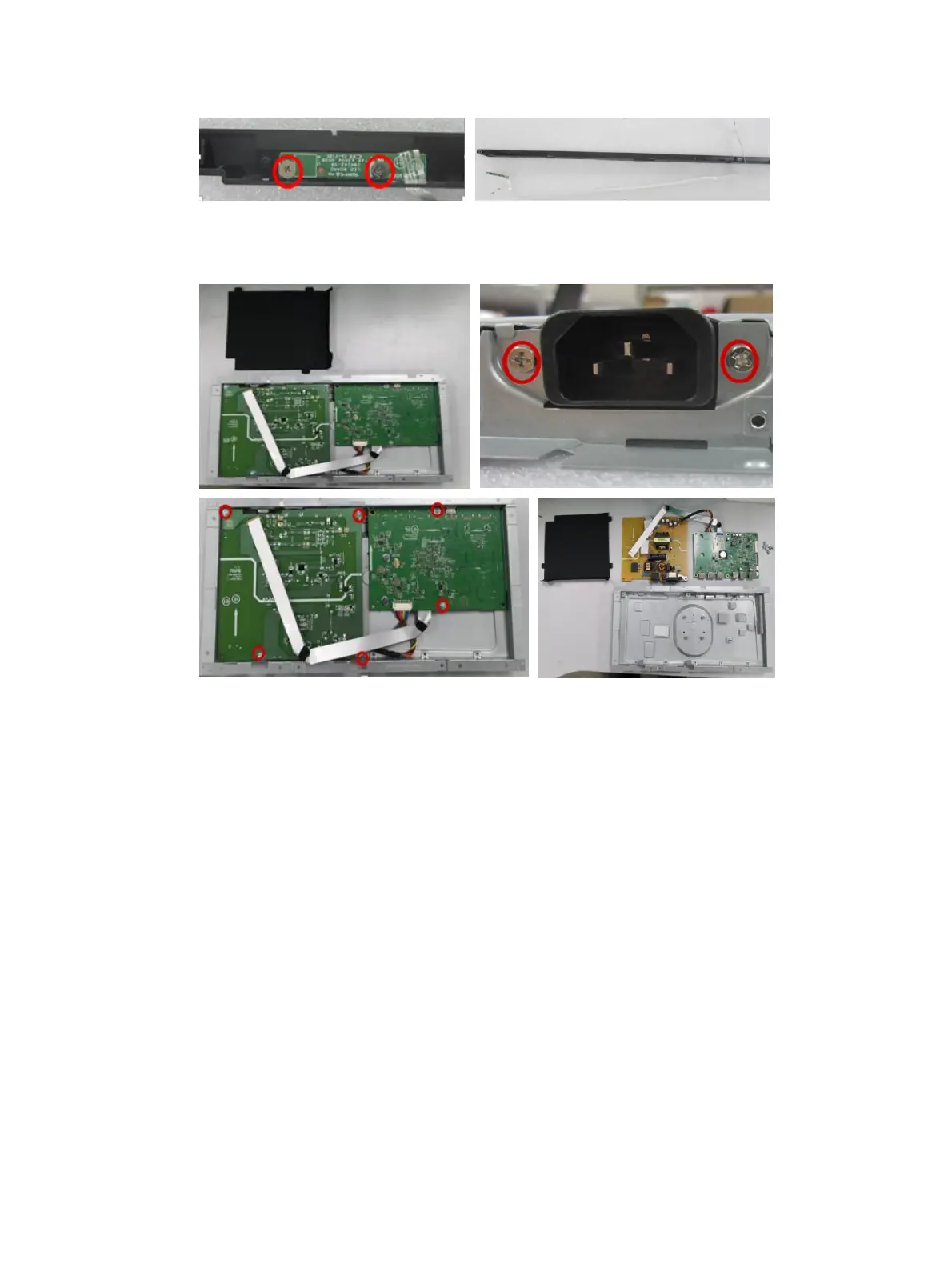

8) Remove Power Key Board from Bezel bottom assy.(Remove two screws)
9) Disassemble Bracket Assembly: remove black Mylar, then release the 2pcs AC screws from bracket,
Release the 5pcs screws for releasing the power board and interface board.
Power board
The power board part number is 755.08002.0001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
Remove the power board:
1) The HP Z24q G3 power board connector position is as follows:

HP Z24q G3 Specifications

General

Haze rate	25 %
Color depth	10 bit
Color gamut	99 %
Pixel pitch	0.21 x 0.21 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	90 Hz
Display number of colors	1.07 billion colors
Digital vertical frequency	50 - 90 Hz
Digital horizontal frequency	30 - 140 kHz
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
Product color	Silver
Market positioning	Business
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	74 W
Power consumption (standby)	0.5 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
DisplayPort version	1.4
Package depth	141 mm
Package width	625 mm
Package height	373 mm
Package weight	7400 g

Weight and Dimensions

Depth (with stand)	195 mm
Width (with stand)	538.4 mm
Height (with stand)	489.3 mm
Weight (with stand)	4800 g
Depth (without stand)	38.5 mm
Height (without stand)	313.7 mm
