HP Z24q G3 - Page 14

11

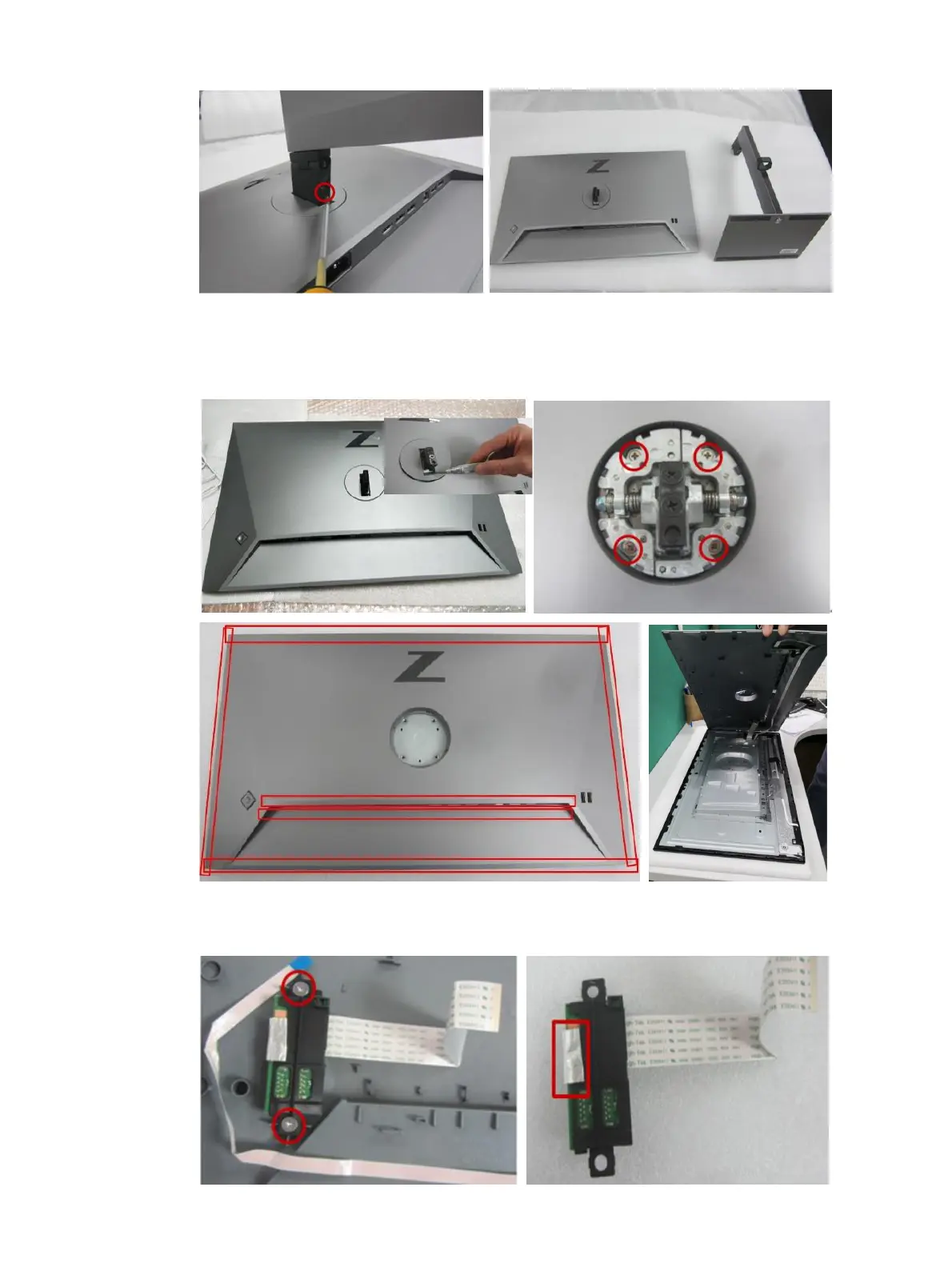

2) Remove Rear Cover From Display Head: Use the tool to remove the hinge cover, then Release the four
screws from back bracket and remove the hinge, then Loose all the hooks by hand for pulling the rear
cover
3) Remove USB BD Screws to remove USB BD: Remove the EMI gasket, then loose the two hooks by hand, then
remove the cable
