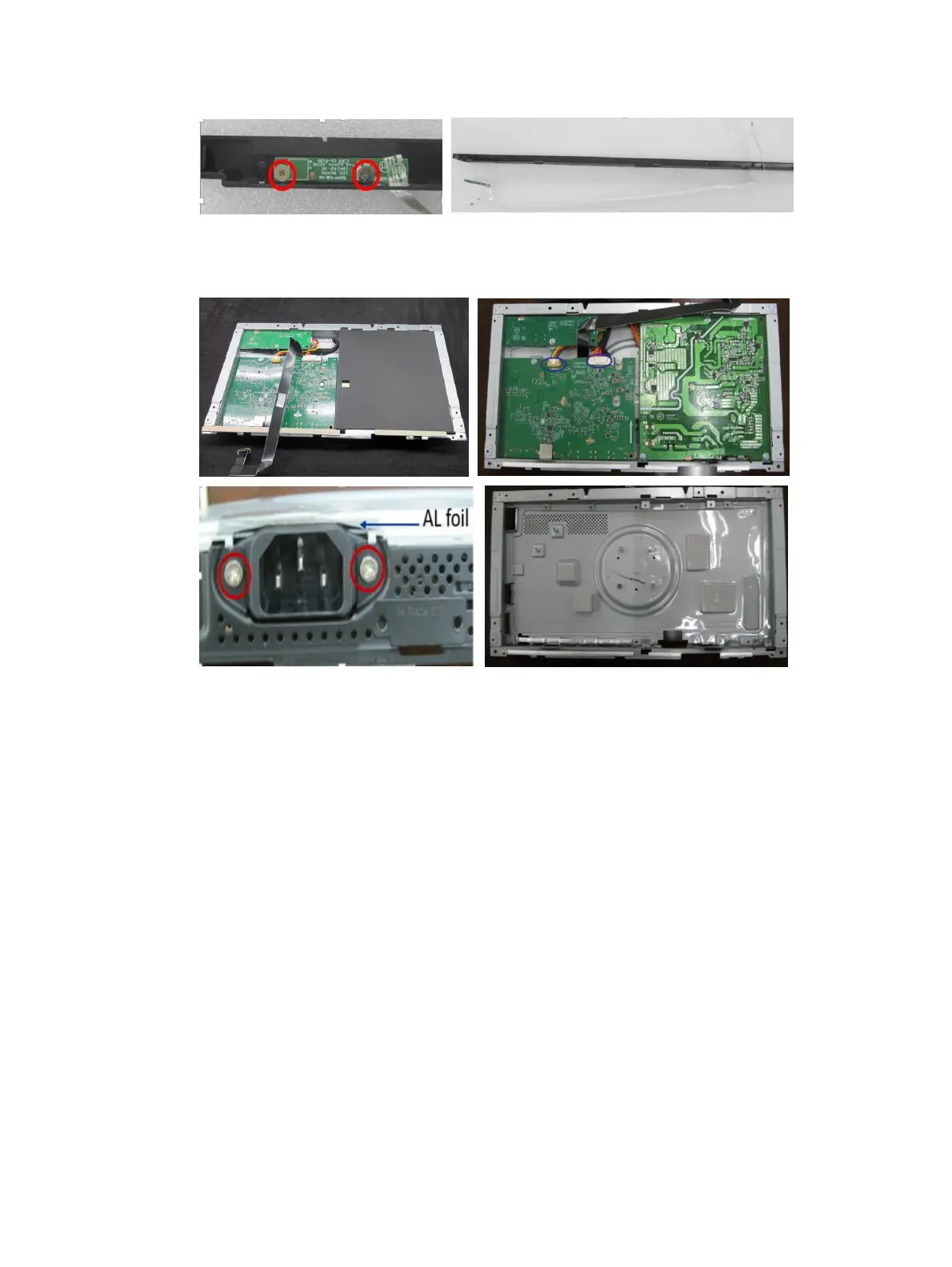

8) Remove Power Key Board from Bezel bottom assy.(Remove two screws)
9) Disassemble Bracket Assembly: remove black Mylar, then release the six screws for releasing the power
board and interface board. Remove the two AC screws and remove all boards.
Power board
The power board part number is 755.06D05.0001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
Remove the power board:
1) The HP Z27k G3 power board connector has no connector:
