3) Lift the CN5201 connector from the circuit board
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
USB connector CN1001

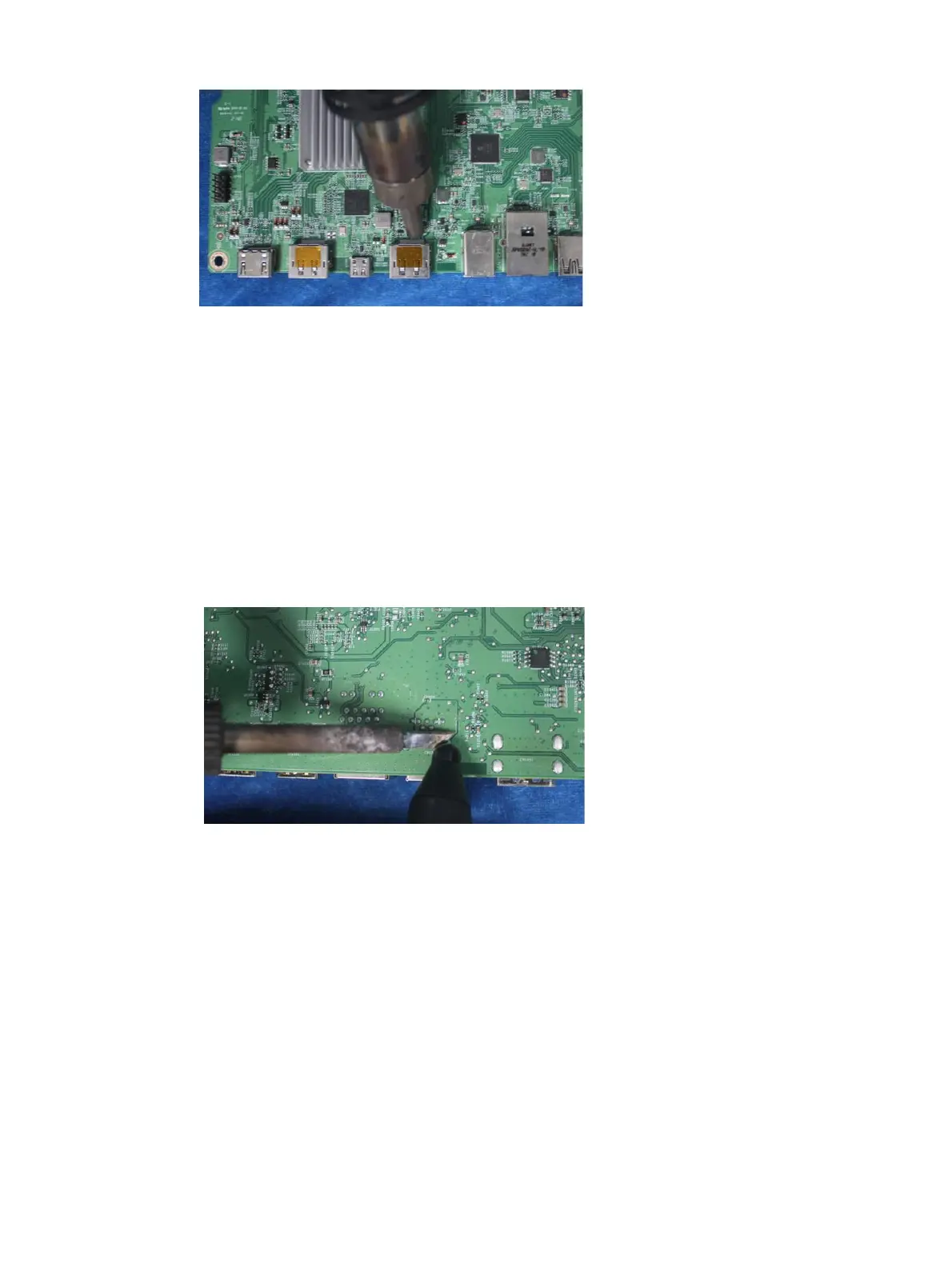

Repair the USB connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the CN1001 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
RJ45 connector CN1201
Repair the RJ45 connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
