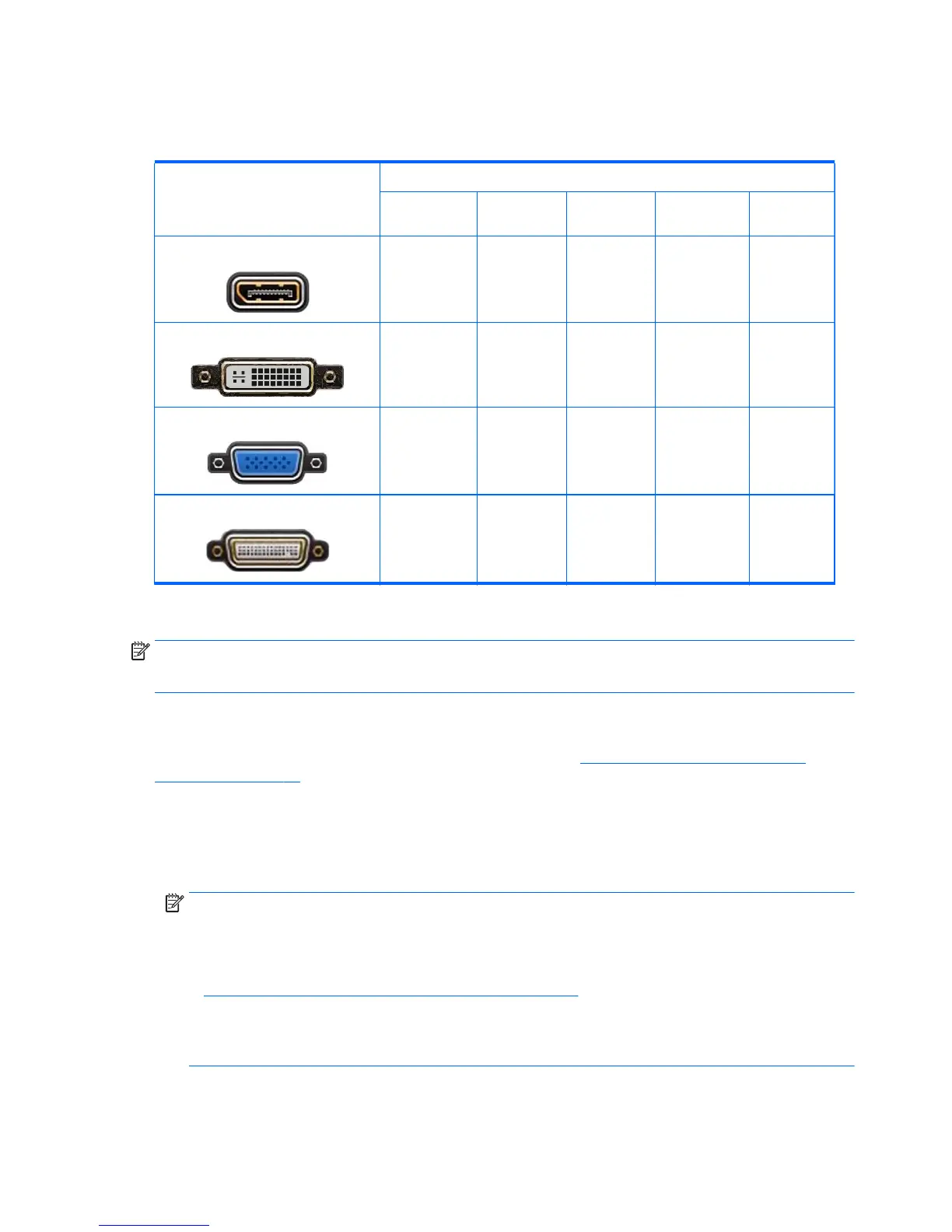

Matching graphics cards to monitor connectors
The following table describes monitor configuration scenarios.
Graphics card interface connector
Monitor connector
VGA DVI Dual Link DVI
DisplayPort
(DP)
HDMI
D
ISPLAY P ORT
DisplayPort to
VGA adapter
(sold
separately)
DP to DVI
adapter
DP to DL DVI
adapter
DP cable
DP to HDMI
adapter
DVI—I (
WHITE )
DVI to VGA
adapter
DVI cable DL DVI cable N/A N/A
VGA (
BLUE )
No adapter
required
DVI-I to VGA
adapter
N/A N/A N/A
DMS-59*
DMS-59 to VGA
adapter
DMS-59 to DVI
adapter
N/A
DMS-59 to DP
adapter
N/A
*
This interface is a dual-monitor graphics interface card that supports two VGA, two DVI, or two DP monitors.
NOTE: HP graphics cards include monitor cable adapters unless otherwise indicated.
DisplayPort connections have the highest performance; VGA connections have the lowest.
Identifying monitor connection requirements
The following are various scenarios for connecting monitors. ( See Matching graphics cards to monitor
connectors on page 16 for more information about the different graphics cards):
●
Graphics card with DisplayPort output — If the graphics card has four DisplayPort outputs, you can
connect a monitor to each connector. Use the proper adapters if required.
●
Graphics card with DVI output — If you have a graphics card with two DVI outputs, you can connect a
monitor to each connector. Use the proper adapters if required.
NOTE: Models that have only one DVI port always have a second graphics output option (DisplayPort
or VGA).
Many graphics cards provide more than two monitor outputs but limit you to using only two at a time.
Consult the graphics card documentation or look up information on the card according to the procedure
in
Matching graphics cards to monitor connectors on page 16.
On a system with two DVI connections, port number 1 provides the primary display, which is where the
BIOS POST screen appears after a system boot. (Only one card is used during BIOS POST unless you
change the BIOS setting.)
16 Chapter 3 Setting up the workstation

HP Z440 Specifications

General

Tcase	66.2 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Processor cache	10 MB
Processor cores	4
Processor model	E5-1620V3
System bus rate	0 GT/s
Processor series	Intel Xeon E5-1600 v3
Processor socket	LGA 2011-v3
Processor threads	8
Processor codename	Haswell
Number of QPI links	0
Processor frequency	3.5 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x4, 1x8, 1x16
Thermal Design Power (TDP)	140 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	8x DIMM
Internal memory	16 GB
Memory channels	Quad-channel
Memory clock speed	2133 MHz
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Optical drive type	DVD Super Multi
Total storage capacity	256 GB
BD interface type	SATA
Discrete graphics card model	Not available
Recovery operating system	Windows 8.1 Pro
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
PS/2 ports quantity	2
USB 2.0 ports quantity	5
Chassis type	Mini Tower
Product color	Black
Country of origin	China
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C612
Scalability	1S
Processor code	SR20P
Processor ARK ID	82763
Intel TSX-NI version	0.00
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX 2.0
Intel Identity Protection Technology version	1.00
Intel® Small Business Advantage (Intel® SBA)	-
Power supply	700 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	445 mm
Width	169 mm
Height	432 mm
Weight	11000 g
