Graphics card with VGA and DL-DVI output — If the workstation does not have a PCIe graphics card,
but has one or more SVGA and/or DL-DVI outputs, you can connect a monitor to each output.
●
Graphics card with DMS-59 output — If the workstation has a PCIe graphics card with a DMS-59
output, use the appropriate adapter to connect your monitor.
Adapters are available to connect the DMS-59 output to two DVI or two VGA monitors.
Connecting and configuring monitors
NOTE: The supported graphics cards typically allow at least two monitors, as shown in this section; some
supported cards allow more monitors. Refer to the graphics card documentation for details.

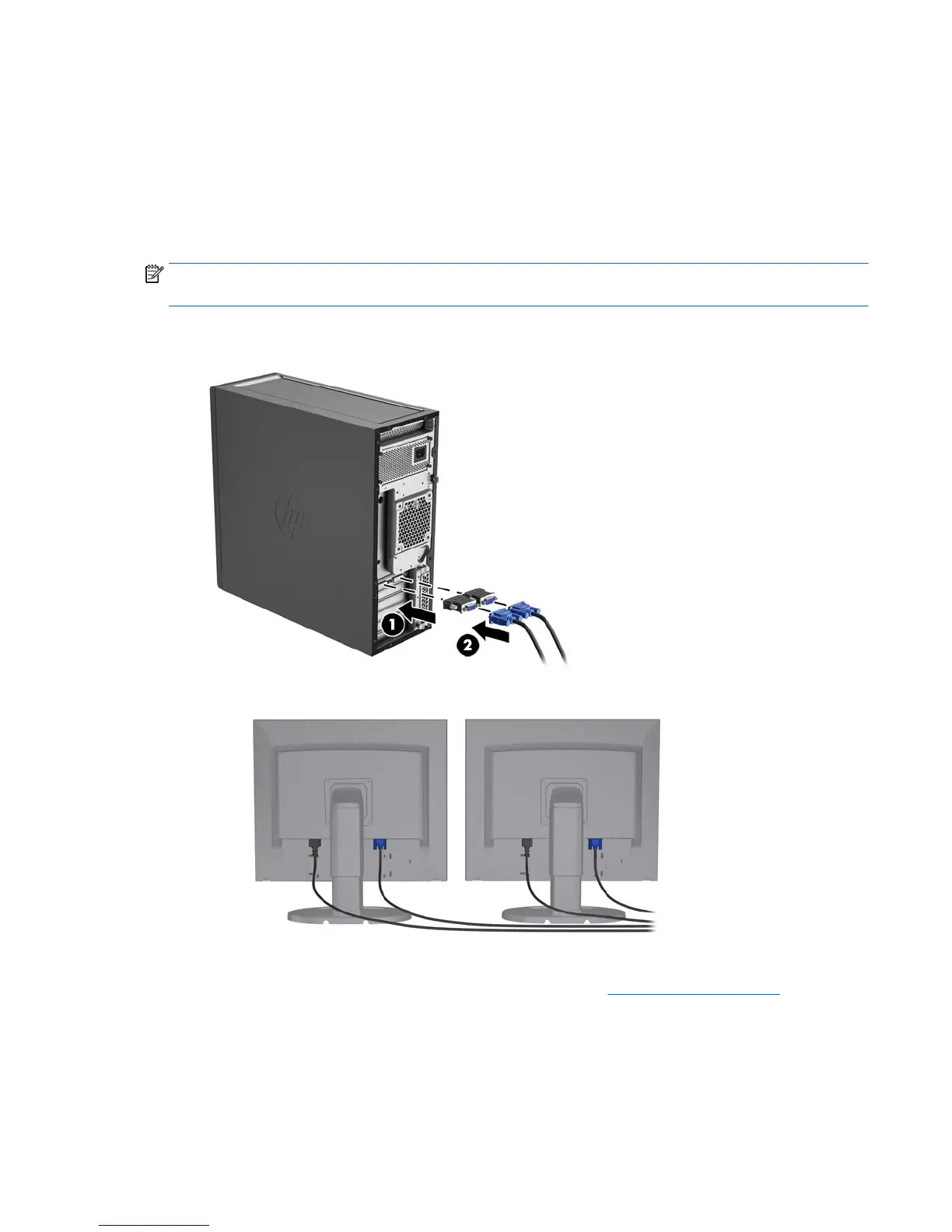

1. Connect the monitor cable adapters (1) (if required) to the workstation, then connect the appropriate
monitor cables to the adapters (2) or directly to the graphics card.
2. Connect the other ends of the monitor cables to the monitors.
3. Connect one end of the monitor power cord to the monitor and the other end to an AC outlet.
4. Configure the monitor. For details, refer to Microsoft Help or to
http://www.microsoft.com.
For monitor setup in Linux, you can often use the settings tool for the graphics cards (e.g., NVIDIA
nvidia-settings or AMD Catalyst Control Center). In some recent Linux releases, the window manager
system (e.g., Gnome 3) preferences must also be modified.
Adding monitors 17

HP Z440 Specifications

General

Tcase	66.2 °C
Bus type	QPI
Stepping	R2
FSB Parity	No
Processor cache	10 MB
Processor cores	4
Processor model	E5-1620V3
System bus rate	0 GT/s
Processor series	Intel Xeon E5-1600 v3
Processor socket	LGA 2011-v3
Processor threads	8
Processor codename	Haswell
Number of QPI links	0
Processor frequency	3.5 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.6 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x4, 1x8, 1x16
Thermal Design Power (TDP)	140 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333, 1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	8x DIMM
Internal memory	16 GB
Memory channels	Quad-channel
Memory clock speed	2133 MHz
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
Optical drive type	DVD Super Multi
Total storage capacity	256 GB
BD interface type	SATA
Discrete graphics card model	Not available
Recovery operating system	Windows 8.1 Pro
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
PS/2 ports quantity	2
USB 2.0 ports quantity	5
Chassis type	Mini Tower
Product color	Black
Country of origin	China
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C612
Scalability	1S
Processor code	SR20P
Processor ARK ID	82763
Intel TSX-NI version	0.00
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX 2.0
Intel Identity Protection Technology version	1.00
Intel® Small Business Advantage (Intel® SBA)	-
Power supply	700 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	445 mm
Width	169 mm
Height	432 mm
Weight	11000 g
