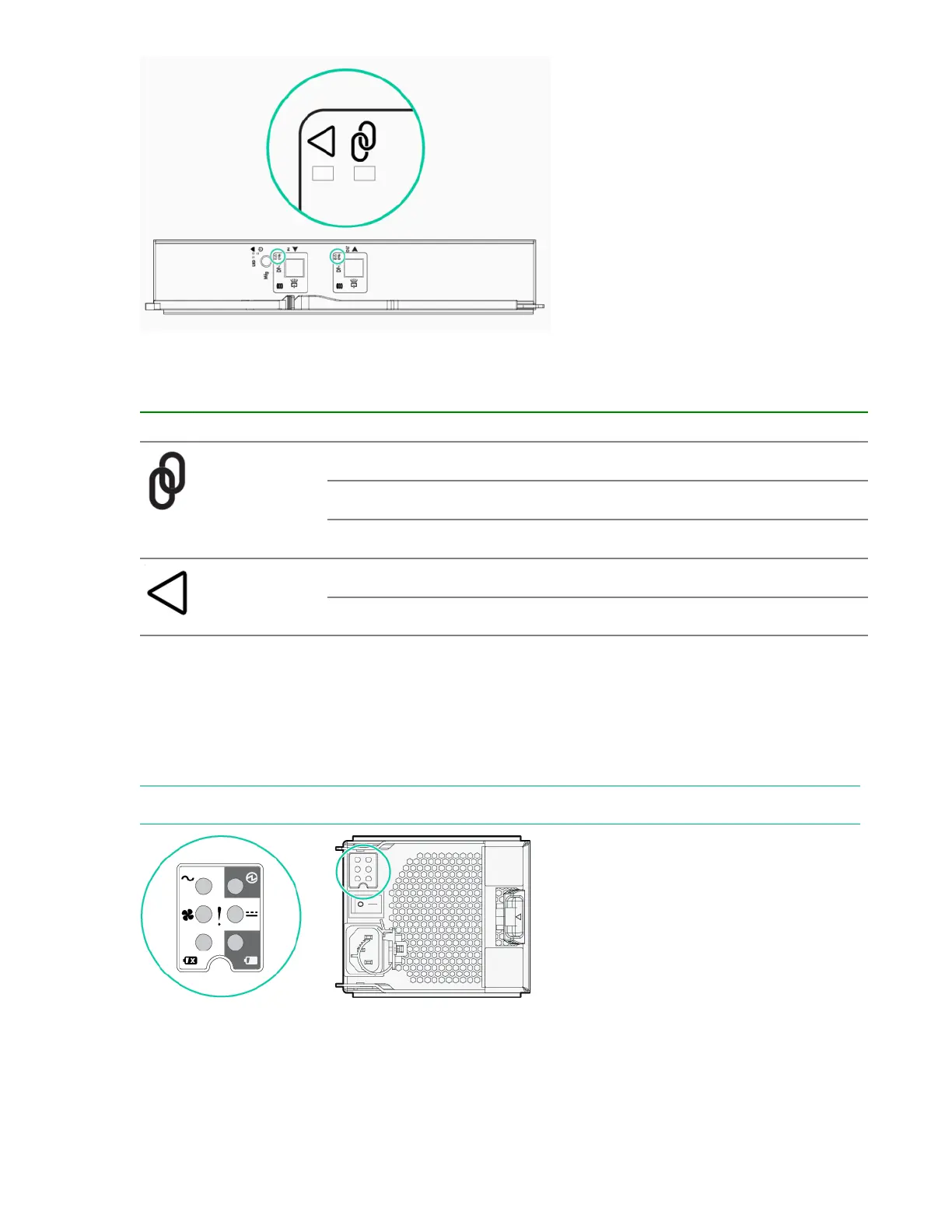

Figure 104: SAS ports LEDs, I/O module
Table 32: SAS ports LEDs, I/O module
LED Function Status State
Activity Green solid Links up, but no activity
Off No cable, bad cable, not ready or no power
Green flashing Activity
Fault Amber solid Fault
Off No fault
Power cooling module LEDs
Power cooling module LEDs, alternating-current, controller node enclosure
This information applies only to the HPE 3PAR 764W power cooling module for the HPE 3PAR StoreServ
8000 Storage system.
NOTE: Labels on the PCM for the controller node enclosure show the model as 760W PCM Gold Series.
Figure 105: 764W PCM LEDs, alternating-current, controller node enclosure rear view
