Table 34: 580W PCM LEDs, drive enclosure rear view
LED Function Status State
AC input fail Amber solid No AC power or PCM fault
Amber flashing
• Partner PCM Faulty/Off or Firmware Download
• Locate active
PCM OK Green solid AC Present and PCM On / OK
Green flashing Standby mode
Fan fail Amber solid PCM fail or PCM fault
Amber flashing Firmware download
DC output fail Amber solid
• No AC power
• Fault
• Out of tolerance
Amber flashing Firmware download
Power cooling module LEDs, direct-current system
This information applies only to the HPE 3PAR -48VDC 764W Power Cooling Module for the HPE 3PAR
StoreServ 8000 Storage system.
NOTE:
• The power switch on the HPE 3PAR -48VDC 764W Power Cooling Module is inverted 180° from the
orientation of the power switch on the alternating-current (AC) power cooling module.
• Labels on the HPE 3PAR -48VDC 764W Power Cooling Module show the model as -48VDC INPUT
764W PCM.

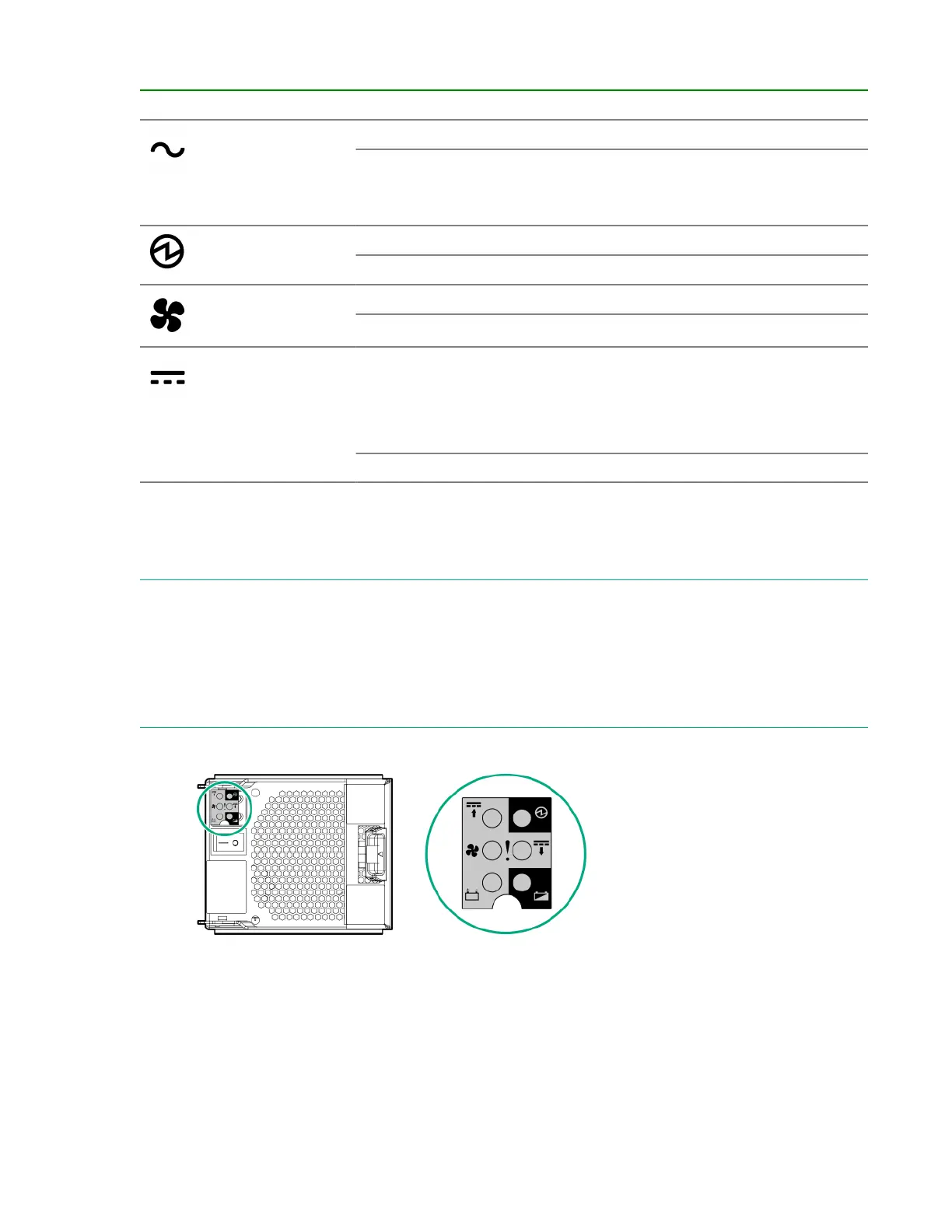

Figure 107: -48VDC 764W PCM LEDs
