Port type Description
6 Cluster Interconnect
Link
Cluster Interconnect Link ports (Intr0, Intr1) used only with 4-node storage
systems for the controller nodes 0 and 1 to controller nodes 2 and 3
connection.
7 Console port Console port (MFG) is a serial connection for service procedures.
Ethernet onboard ports
The controller node has two Ethernet onboard (built-in) ports:
• MGMT—Onboard port for the network connection
• RC-1—Onboard port for an HPE 3PAR Remote Copy or HPE 3PAR File Persona connection

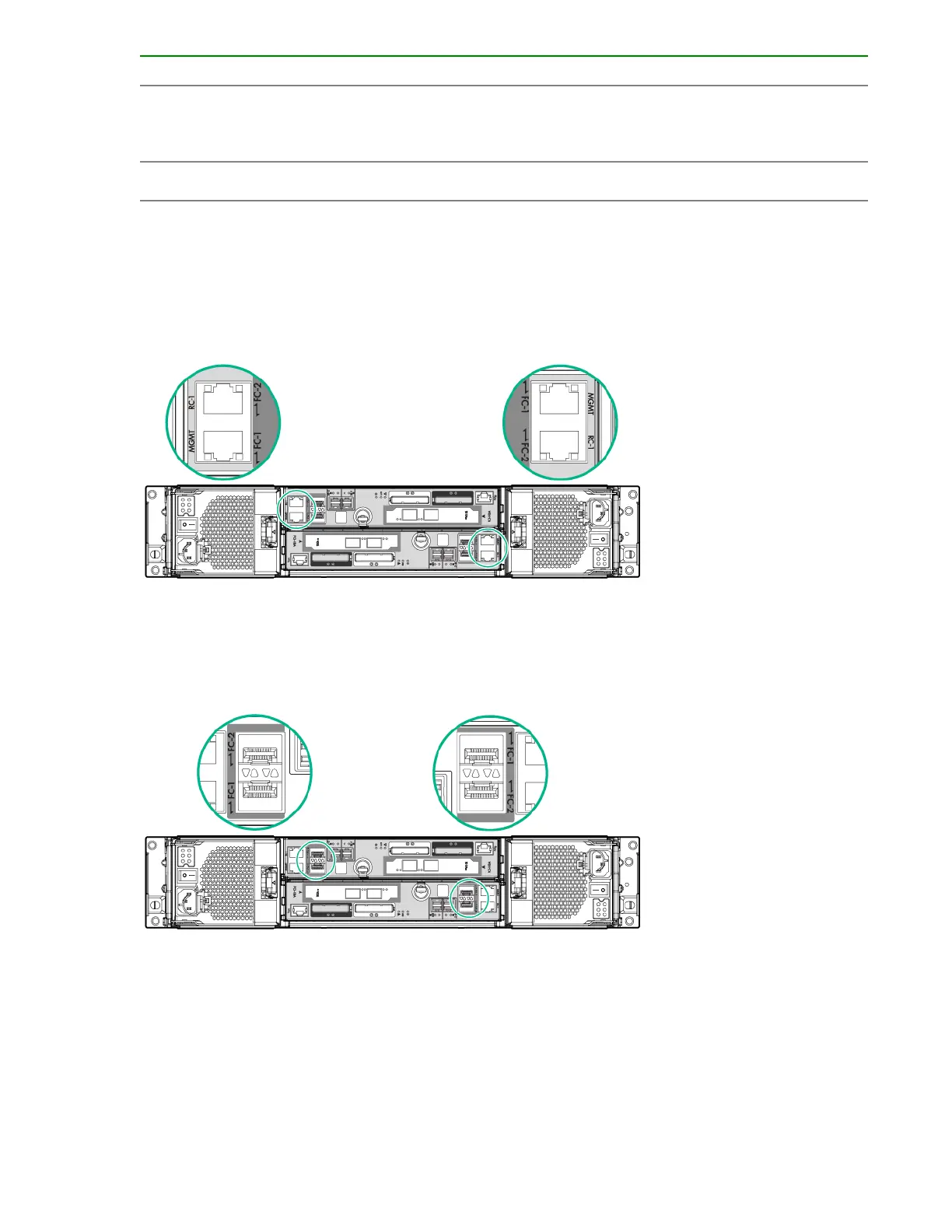

Figure 60: Ethernet onboard ports, controller node enclosure rear view
FC onboard ports
The controller node has two Fibre Channel (FC) onboard ports and each port includes two LEDs. The
arrow head-shaped LEDs point to the port they are associated with.
Figure 61: FC onboard ports, controller node enclosure rear view
More information 95
