Task Command
Display PIM snooping neighbor information.
display pim-snooping neighbor
[
vlan
vlan-id ]
[
slot
slot-number ] [
verbose
]
Display PIM snooping routing entries.
display pim-snooping routing-table
[
vlan
vlan-id ]
[
slot
slot-number ] [
verbose
]
Display PIM snooping router port information .
display pim-snooping router-port
[
vlan
vlan-id ]
[
slot
slot-number ]
Display statistics for the PIM messages learned
through PIM snooping.
display pim-snooping statistics
Clear statistics for the PIM messages learned
through PIM snooping.
reset pim-snooping statistics
PIM snooping configuration example
Network requirements
As shown in Figure 16:
• RIP runs on the network.
• Source 1 sends multicast data to multicast group 224.1.1.1, and Source 2 sends multicast data
to multicast group 225.1.1.1.
• Receiver 1 belongs to multicast group 224.1.1.1, and Receiver 2 belongs to multicast group
225.1.1.1.
• Router C and Router D run IGMP on GigabitEthernet 1/0/1. Router A, Router B, Router C, and
Router D run PIM-SM.
• GigabitEthernet 1/0/2 on Router A acts as a C-BSR and a C-RP.
Configure IGMP snooping and PIM snooping on Switch A so that Switch A forwards PIM messages
and multicast data to only the routers that are interested in the multicast data.

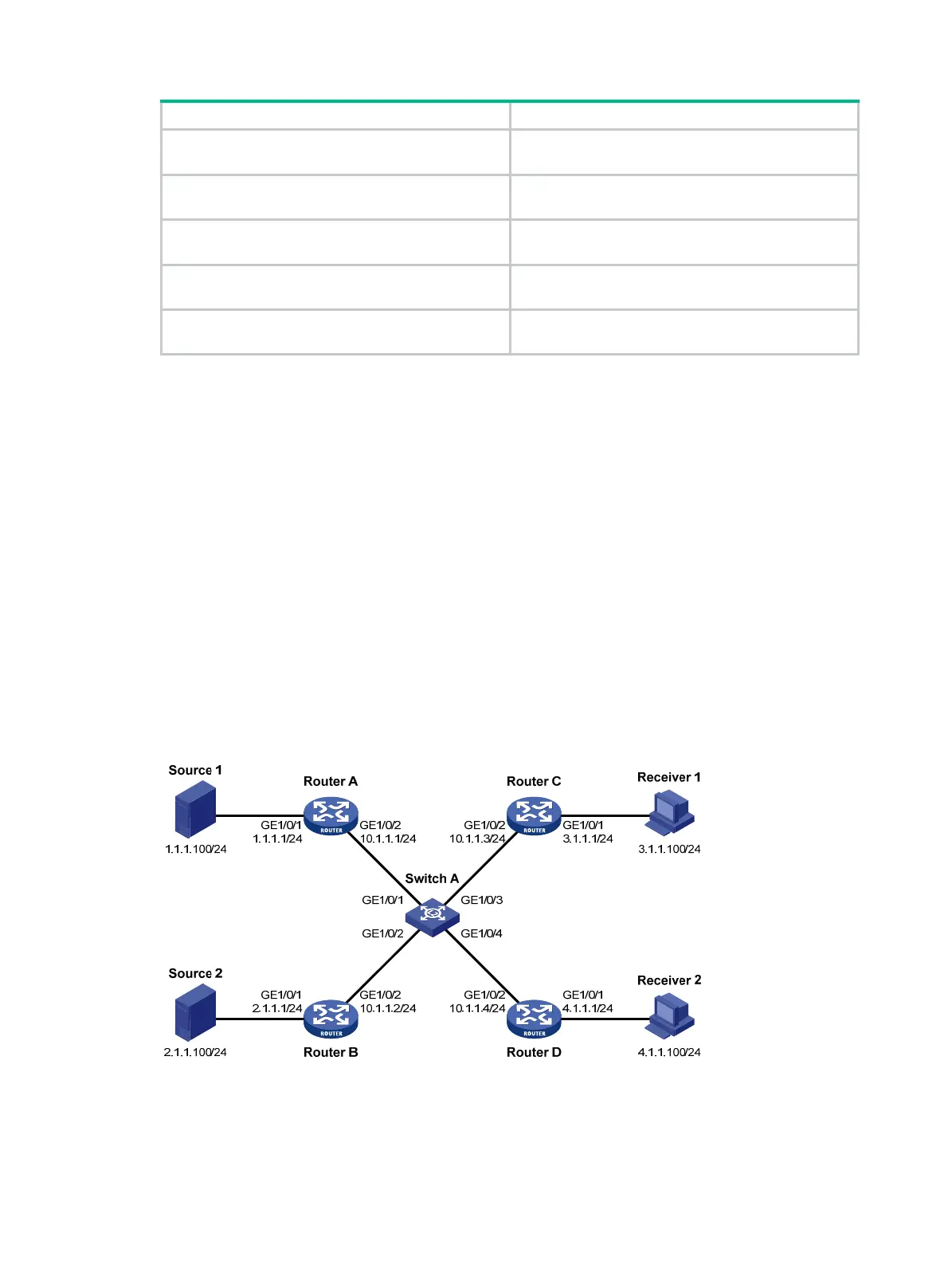

Figure 16 Network diagram
Configuration procedure
1. Assign an IP address and subnet mask to each interface according to Figure 16. (Details not
shown.)
2. Configure RIP on all the routers. (Details not shown.)
