HPE SimpliVity 2600 Gen10

Chapter 1: Component identification 8
Back panel components - HPE SimpliVity 170 Gen10 server
The HPE SimpliVity 2600 Gen10 chassis supports up to four HPE SimpliVity 170 Gen10 servers. Each server

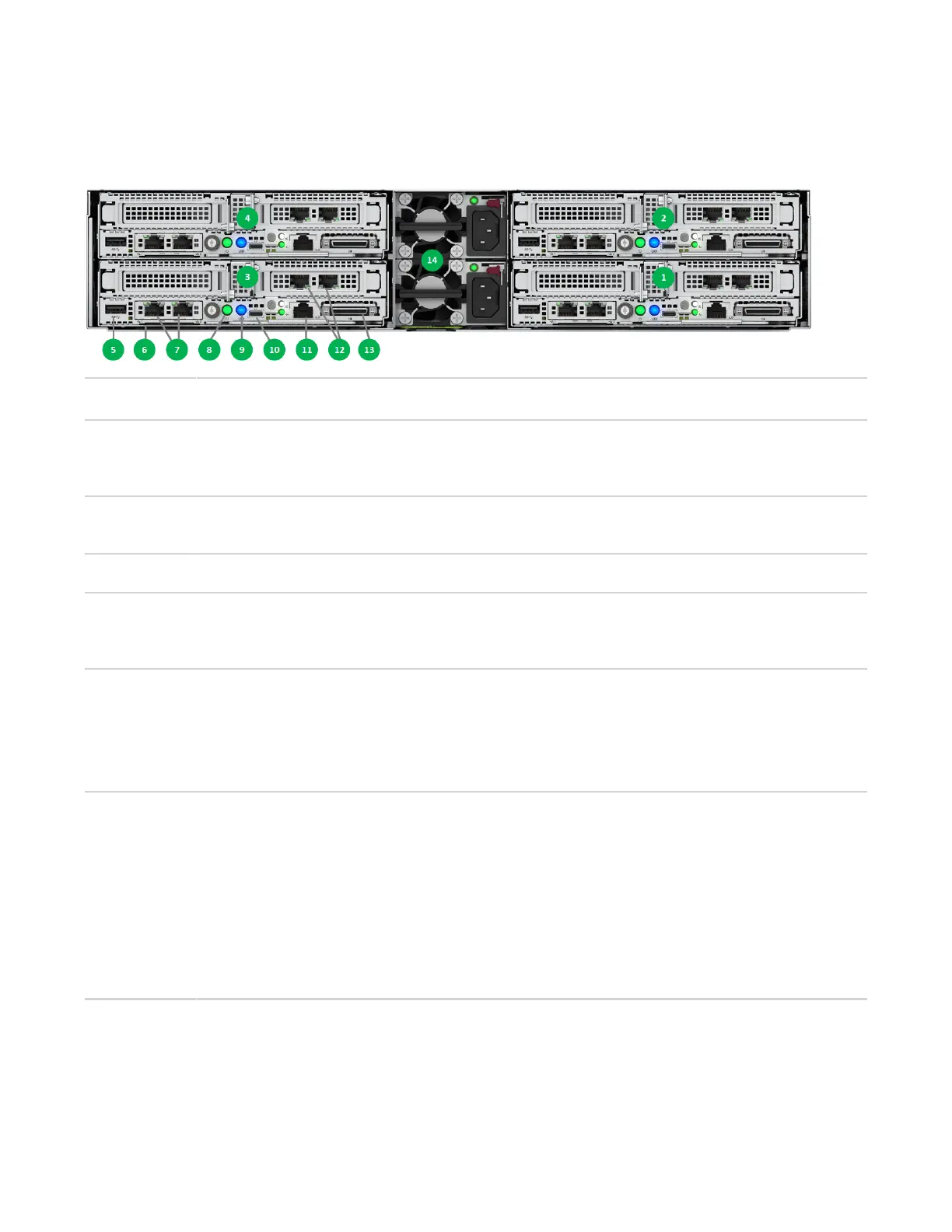

requires management and data connections and provides LED status indicators. The following graphic shows the
components for one server, but the components are identical for all four.
Callout Item Description
1, 2, 3, 4 Servers 1-4 Up to four HPE SimpliVity 170 servers, each containing six
drives, are supported in the HPE SimpliVity 2600 Gen10
chassis.
5 USB 3.0 connector USB 3.0 connector that enables you to connect a USB device,
such as a mouse or keyboard.
6 Pull tab Provides server serial number and iLO label.
7 Media Module Adapter 1 GbE Media Module Adapter containing two ports numbered
1 and 2, from left to right for the HPE SimpliVity Management
network.
8 Power button/LED Solid green = System on
Flashing green = Performing power on sequence
Solid amber = System in standby
Off = No power present
9 UID button/LED Solid blue = Activated
• 1 flash per second = Remote management or firmware
upgrade in progress
• 4 flashes per second = iLO manual soft reboot sequence
initiated
• 8 flashes per second = iLO manual hard reboot sequence in
progress
Off = Deactivated
