HPE SimpliVity 2600 Gen10

Chapter 1: Component identification 9
Callout Item Description
10 iLO service port Use to download the Active Health System Log to a supported
USB flash drive. Also provides a connection for a client (such
as a laptop) with a supported USB to Ethernet adapter to
access the iLO web interface, remote console, CLI, iLO
RESTful API, or scripts.
11 iLO management port Dedicated port for remote, out-of-band, web-based
management using Integrated Lights-Out (iLO), an HPE
proprietary embedded server management technology.
12 PCIe Slot 2 Two 10 GbE ports numbered 1 and 2, from right to
left. Use interfaces 1 and 2 for the HPE SimpliVity
Management,federation, and storage networks.
13 SUV connector Provides serial, USB, and a video port connection for
maintenance purposes.
14 Power supplies Two redundant hot plug power supplies with fans. Each power
supply has a status indicator LED for AC power present
(green).
If you need to replace a power supply, always disconnect the
power cord before removing the power supply.

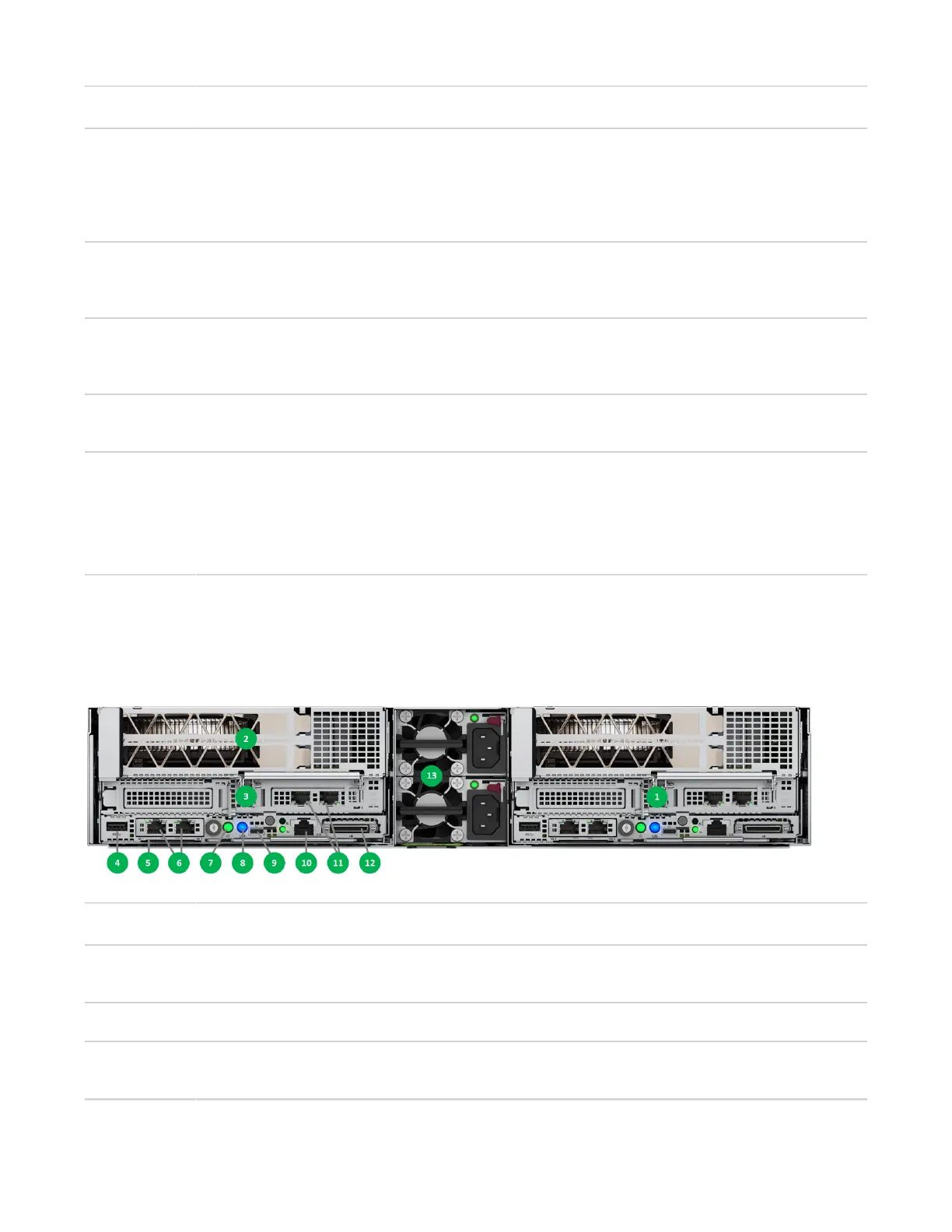

Back panel components - HPE SimpliVity 190 Gen10 server
The HPE SimpliVity 2600 Gen10 chassis supports two HPE SimpliVity 190 Gen10 servers. Each server requires
management and data connections. Each server is 2U in height and has the capability to accommodate an
optional NIC or GPU accelerator.
Callout Item Description
1, 3 Server 1 and 3 Two HPE SimpliVity 190 2U servers, each containing six drives,
are supported in the HPE SimpliVity 2600 Gen10 chassis.
2 PCI slot 3 Optional NIC or GPU accelerator for each server.
4 USB 3.0 connector USB 3.0 connector that enables you to connect a USB device,
such as a mouse or keyboard.
