HPE STOREONCE 5500

1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
IOM A
IOM B
IOM A
IOM B
IOM A
IOM B
IOM A
IOM B
P2
P1
P1P2
#4
#2
P2

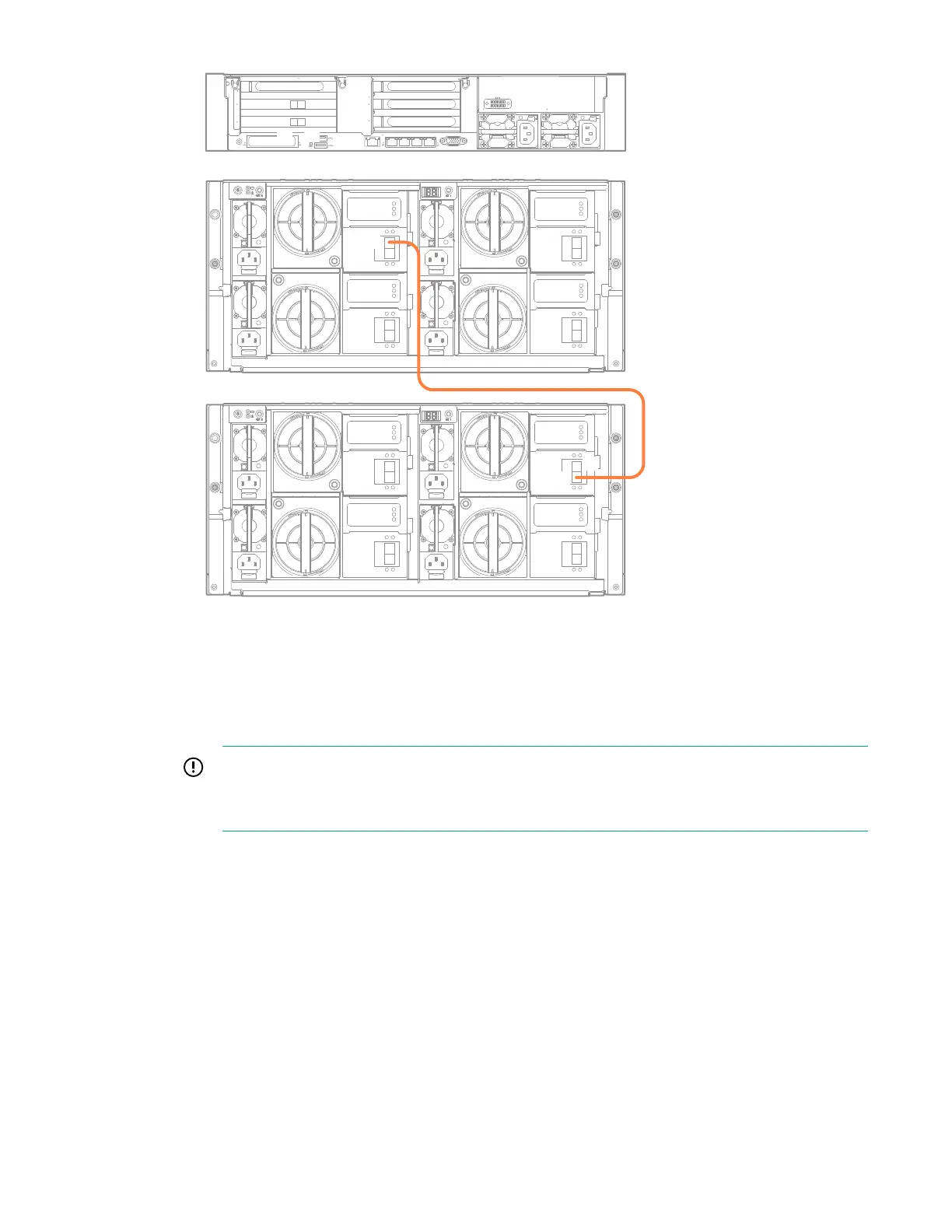

4. Connect the fourth enclosure to Port 2 in the RAID controller card in slot 3 of the head server, as
follows:
a. Remove the existing SAS cable from: Enclosure 2, Drawer 2, IOM B, P2.
b. Connect the SAS cable to: Enclosure 4, Drawer 2, IOM B, P2.
IMPORTANT:
Do not disturb the SAS cabling between the RAID controller card in slot 3, Port 1 and
Enclosure #2.
Cabling Capacity Upgrade enclosures 33
