Shenzhen Hpmont Technology Co., Ltd Chapter 5 Operation Instructions
HD5L Series Controller User Manual ―49―
• The function parameter can’t be modified, such as the actual detected parameters or recorded
parameters etc.
• Only when the controller stops can it modify the function parameter.
• Only input the correct password can it edit the function parameter due to the valid password.
Switching display parameters at stopping state
There are six stopping parameters(F15.08
－
F15.13) of the HD5L controller. For example, set the
parameter to be default value and the Figure 5-7 describes the operation of displaying
parameters.

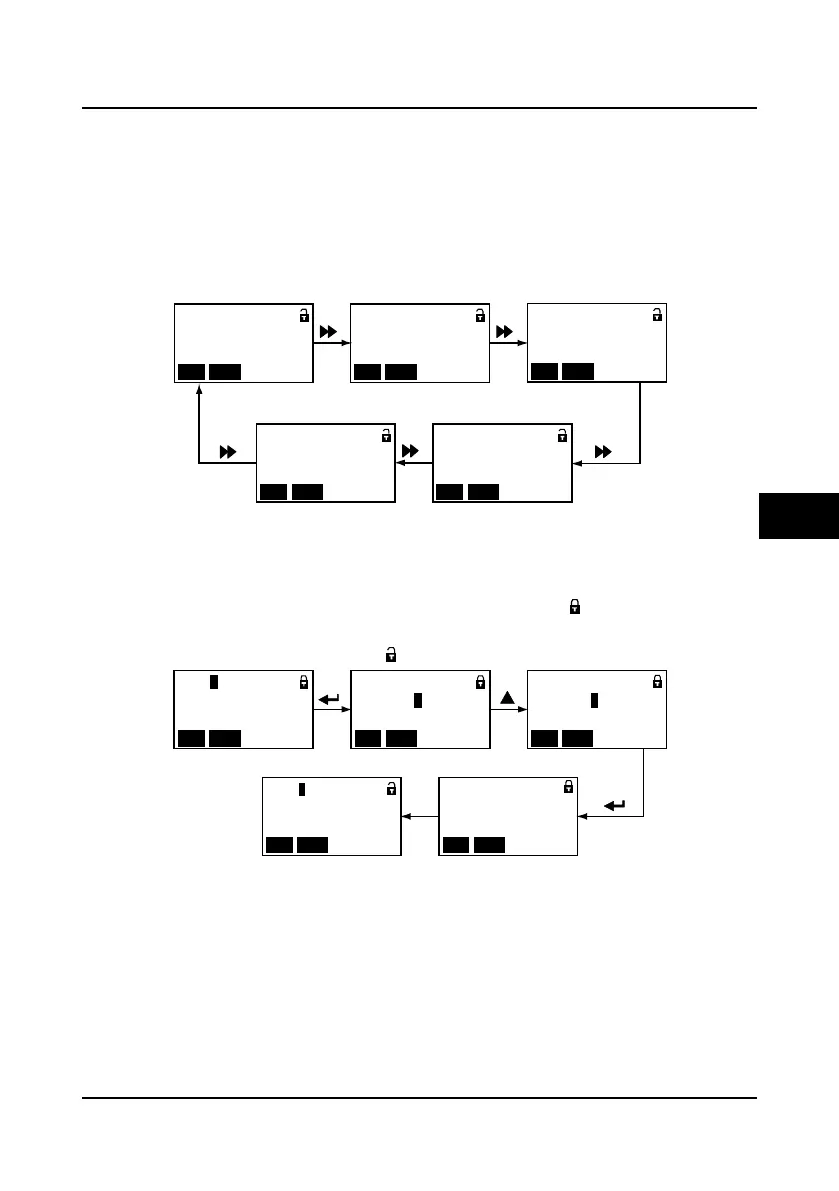

Figure 5-7 Switching display parameters at stopping state
Unlock user’s password
When user set F01.00 to non-zero value and detect no press on the panel within 5 minutes, the
user’s password will be valid. The lock identification of panel will be .
The operation of unlock user’s password is as shown in Figure 5-8 which takes 4 as the user’s
password. The lock identification will be when it successfully unlocks.
Figure 5-8 Operation of unlocking user’s password
Ready para.
Setting speed
=0 1.5 0 0 m/s
ALMSTOPUP LO/RE
F15.08 = 4
Ready para.
DC bus voltage
=0 1.5 3 7 V
ALM
STOPUP LO/RE
F15.09 = 14
Ready para.
AI1 voltage disposal
=0 1.6.0 0 V
ALM
STOPUP LO/RE
F15.10 = 16
Ready para.
Output terminal state
=0000 0000 0000 0000
ALMSTOPUP LO/RE
F15.12 = 27
Ready para.
Input terminal state
=0000 0000 0000 0000
ALM
STOPUP LO/RE
F15.11 = 26
F01.00
=0 0 0 0 4
User password
ALMSTOPUP LO/RE
F01.00
User password
菜单模式
ALMSTOPUP LO/RE
F01.00
=0 0 0 0 0
User password
ALMSTOPUP LO/RE
F01.01
Menu mode
菜单模式
ALMSTOPUP LO/RE
Unlock success
ALMSTOPUP LO/RE
Third-level menu
Unlock success
Fourth-level menu Input correct password
Third-level menu
5
