1.Specications
Item Specication
Adjustment of the wire crimp height Adjustable in 8 stages by turning dial
Adjustment of the insulation crimp height Adjustable in 8 stages by turning dial
Outside dimensions 170 mm (length, height) x 170 mm (width) x 80 mm (depth)
(with the ram placed in its lower dead center)
Weight Approximately 5 kg
Main unit of applicable crimping machine Applicable to the full-automatic crimping machines manufactured by
the respective manufacturers. Common to the attachment of the
applicator manufactured by Japan Automatic Machine Co., Ltd.
Feed lever /
供料杆
Insulation crimp height adjusting dial /
调整绝缘夹紧高度拨盘
Wire stopper /
线止动器
Base plate /
底板
Terminal rail /
台轨
Cam lever /
凸轮杆

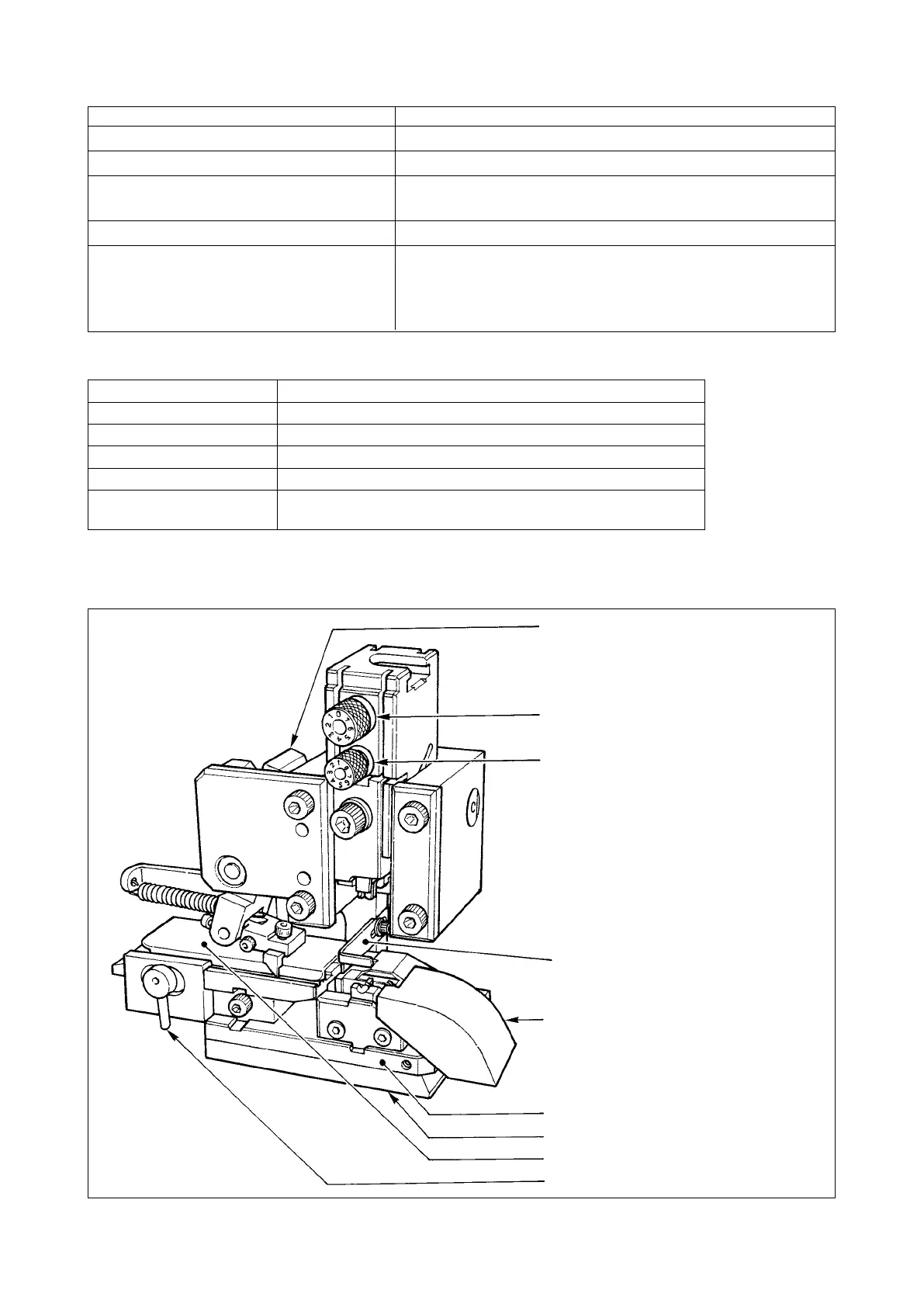

2.Conguration
1. 规格
* There are cases where the shape may vary in accordance with the models.
※ 机种不同，形状与图示有可能不同。
2. 各部的名称
Wire crimp height adjusting dial /
夹紧高度调整拨盘
Adapter plate /
附属板
Carrier chute /
传送供料器
项目 规格
夹紧高度调整 拨盘式 8 档调整
调整绝缘夹紧高度 拨盘式 8 档调整
外形尺寸 ( 压头下死点时 ) 纵 ( 高速 ) 170mm× 横 170mm× 进深 80mm
重量 约 5kg
适合压接机主机
适用于各公司的全自动压接机
与日本自动机器公司制的供料器附件通用
