4.1.1Disassembly, inspection and assembly of Steering
Vertical Column
4.1.1.1Disassembly of Steering Vertical Column

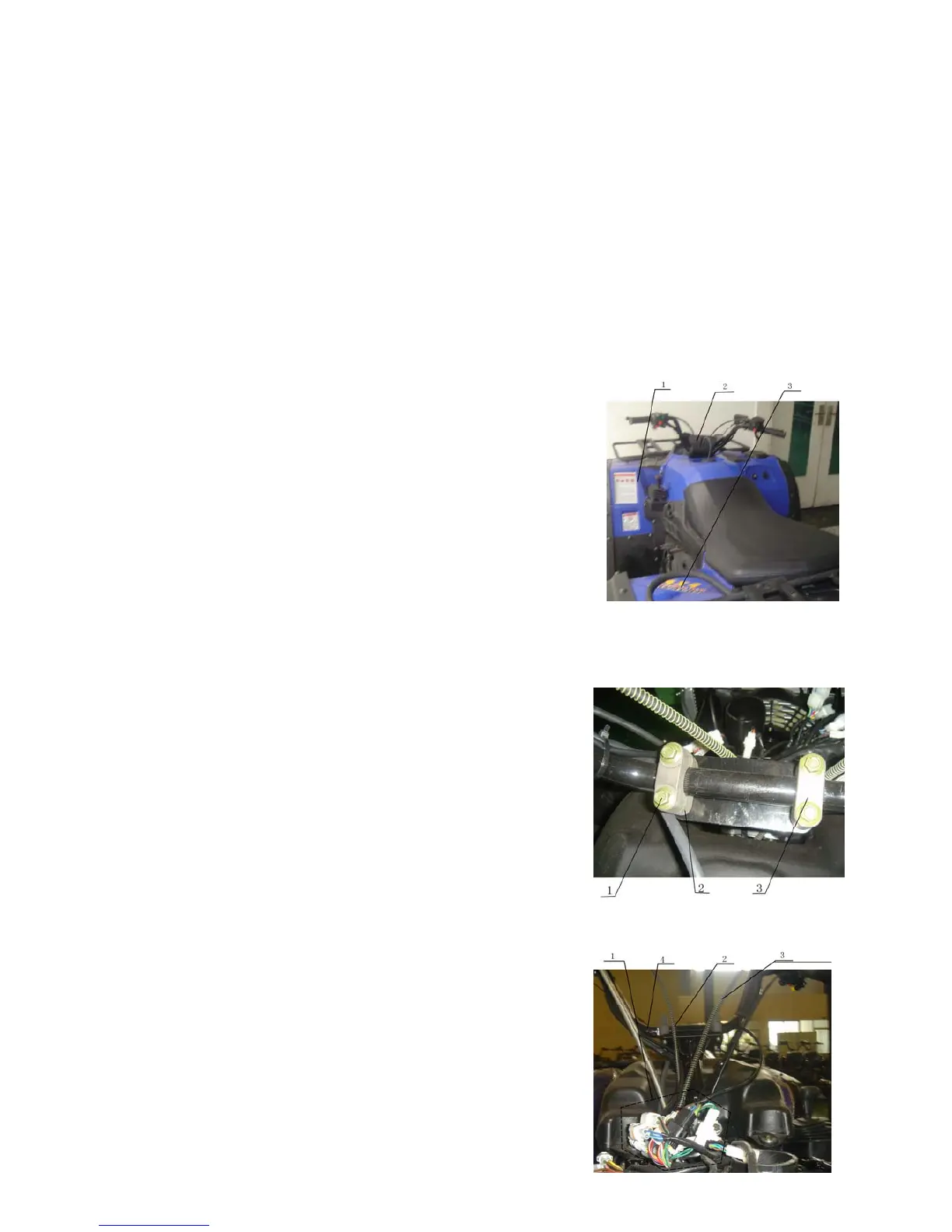

1.Remove all of the Plastic cover and Plastic oranments on
Steering Bar (Figure 4-1-1
1）. Front Mud Shield
2）.Plastic Ornament
3）.Rear Mud Shield
2.Remove Steering Bar Holder
(Figure 4-1-2)
Figure 4-1-1
1）. Hexagon Flange Bolt M8×30
2）.Steering Bar Holder
3）.Steering Bar Clip
3.Unplug all cables and connecting
wires and remove the Steering Bar
(Figure 4-1-3) Figure 4-1-2)
1）Connecting Wire
2）Rear Brake Cable
