3）Front Brake Cable
4）Steering Bar

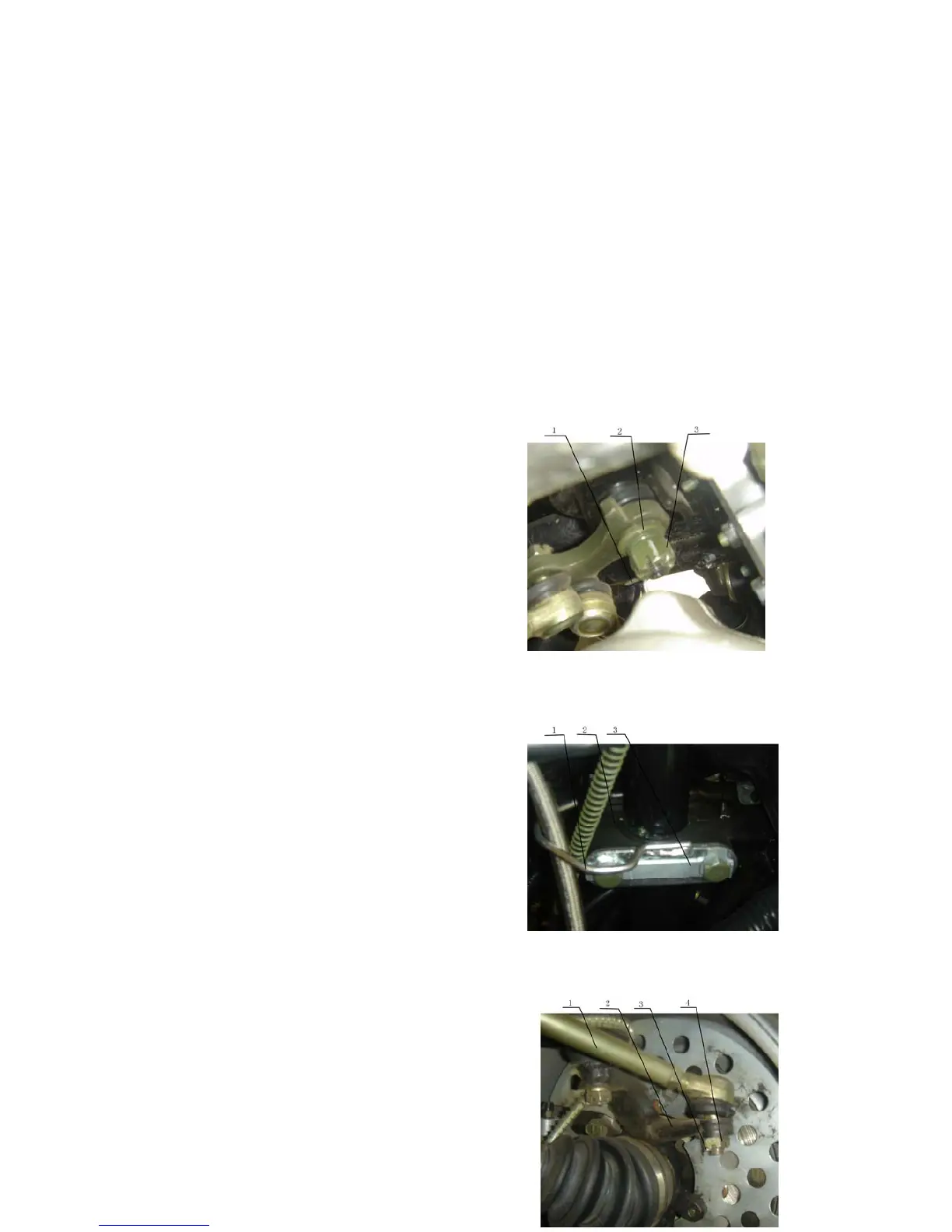

4.Remove the cotter pin, Figure 4-1-3)
open-groove nut and
cushion at the bottom
of the Steering Vertical Column. (Figure 4-1-4)
1）.cotter pin 3.2×32
2）.cushionф14×ф32×4
3）.Hexagon open-groove nut M14
5、Remove the supporting
brackets of the steering
vertical column Figure 4-1-4
(Figure 4-1-5)
1)Supporting stent
2)Inner and outer supporting
Bracket
3)safety cushion
Figure 4-1-5
6.Remove outer ball pin
components on tension
rod form turning joint
