ELECTRICAL SHOCK HAZARD – To ensure safety, turn off electrical power supply at service entrance panel before making any
electrical connections to avoid possible electric shock hazard. Failure to do so could result in property damage, serious personal injury,
or death.
A. GENERAL OPERATING CONDITIONS
• Temperature
o Operating Ambient Temperature Range: 14 – 140
o
F (-10 to 60
o
C)
o Operating Relative Humidity: Up to 90% at 104
o
F (40
o
C)
B. WIRING INFORMATION
1. This appliance must be properly grounded. Ensure the electrical outlet (120V / 15 Amp minimum) that the appliance will be plugged
into is properly grounded.
This appliance is equipped with a three prong plug. It should only be plugged directly into a properly grounded three prong receptacle.
DO NOT remove the ground plug from the plug. Doing so could result in property damage, serious personal injury, or death.
2. The wiring diagrams contained in this manual are to be used for reference purposes only.
3. Refer to these diagrams and the wiring diagrams of any external controls used with the installation when wiring the appliance. Read,
understand, and follow all wiring instructions supplied with the controls.
4. Do not disconnect the power supply when the appliance is in normal operation.
NOTE: For additional electrical protection, the use of a surge protector is recommended. Damage caused by power surges is not
covered by the warranty.

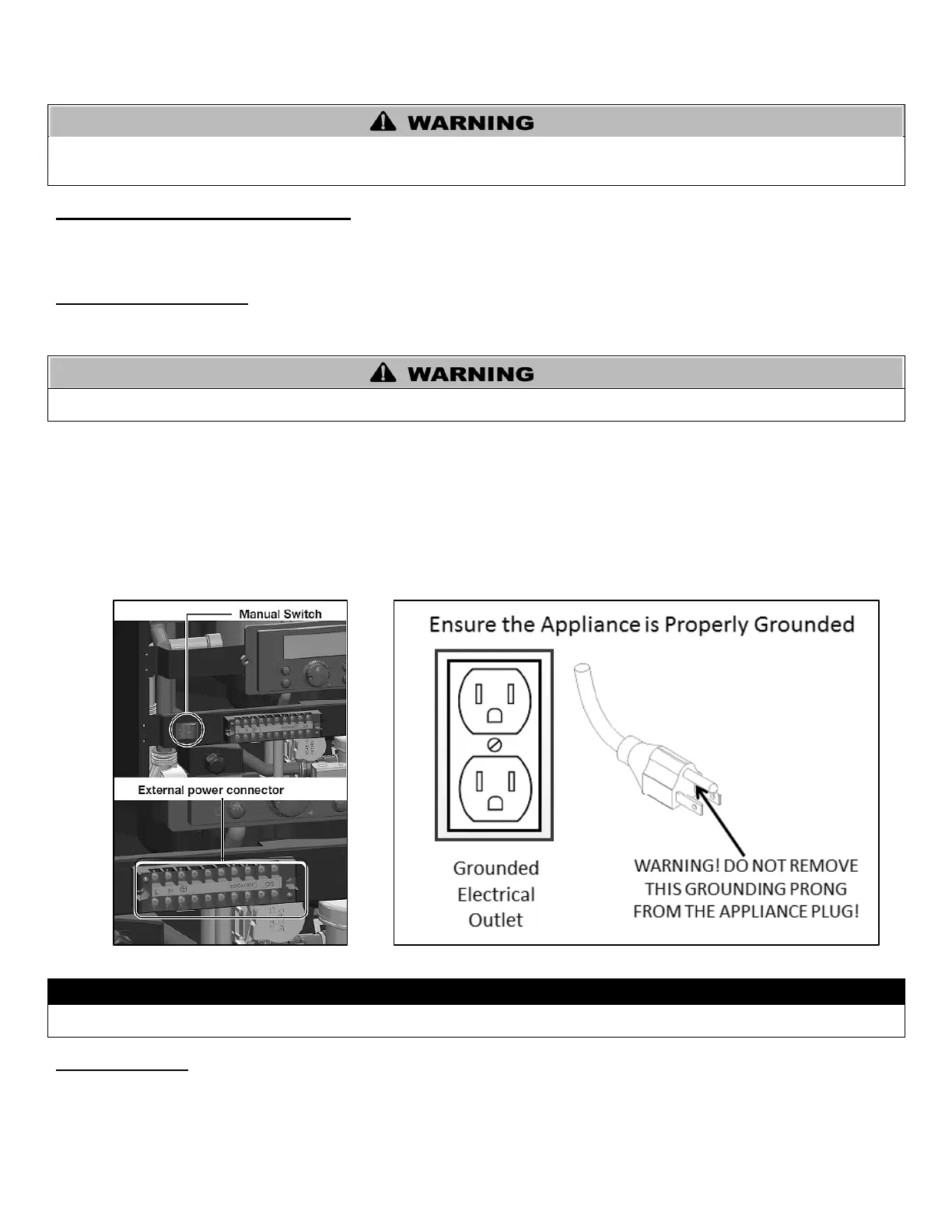

Figure 30 – Manual Power Switch and Appliance Plug Details
If the appliance display does not come ON, first check the plug. Then check the electrical panel circuit breaker and reset it if necessary.
If the circuit breaker trips again, do not reset. Disconnect the plug and have a qualified technician diagnose the problem.
C. DIP SWITCHES
There is one set of DIP switches. The appliance is default set at the factory to operate on Natural Gas with a 3” vent.
To Next Page
