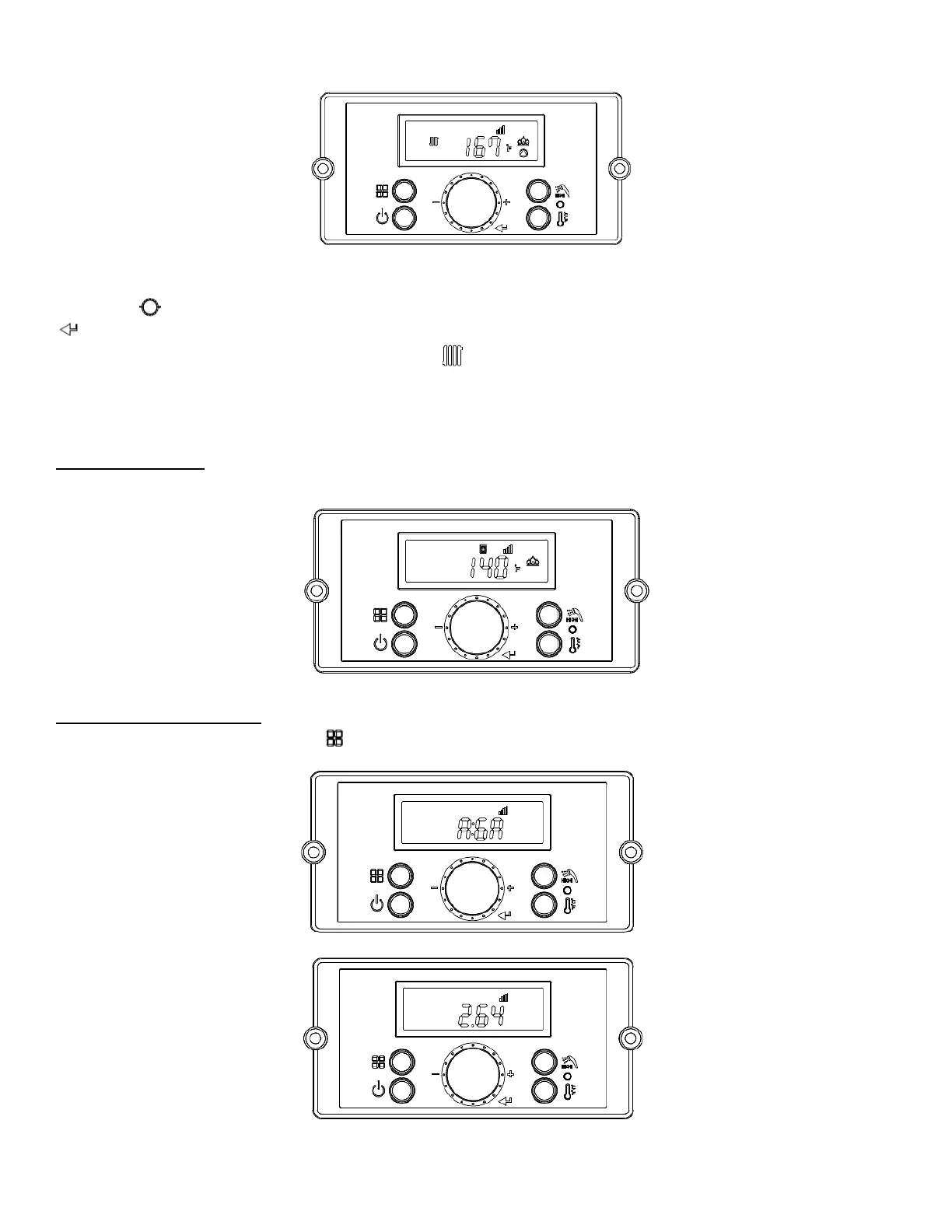

Figure 39 – CH Set-Point Screen
Factory CH Set-Point is 180
o
F (82
o
C). CH Set-Point range is 86 – 180
o
F (30 – 82
o
C).
Turn the dial counterclockwise to lower and clockwise to raise the current CH set-point. After changing the temperature, press the
button to save the setting.
NOTE: The CH Set-Point cannot be changed by pressing the button if an outdoor sensor or 0-10V is connected to the appliance.
When using an outdoor sensor, the appliance will automatically change the target temperature based on the outdoor reset curve. When
using 0-10V, the appliance will automatically change the target temperature based on input voltage.
NOTE: If input voltage is less than 1.5V the 0-10V will be ignored.
G. STORAGE MODE
Storage Mode indicates that the appliance is heating stored water in the internal storage tank. When Storage Mode is operating the
display appears as follows.
Figure 40 – Storage Mode Screen
H. STATUS DISPLAY MODE
Status Display Mode will activate when the button is pressed and held for five seconds when the display panel is powered ON.
Figure 41 – Status Mode Screens
To Next Page
