K. ERROR TREE ANALYSIS
1. FLAME DETECTION

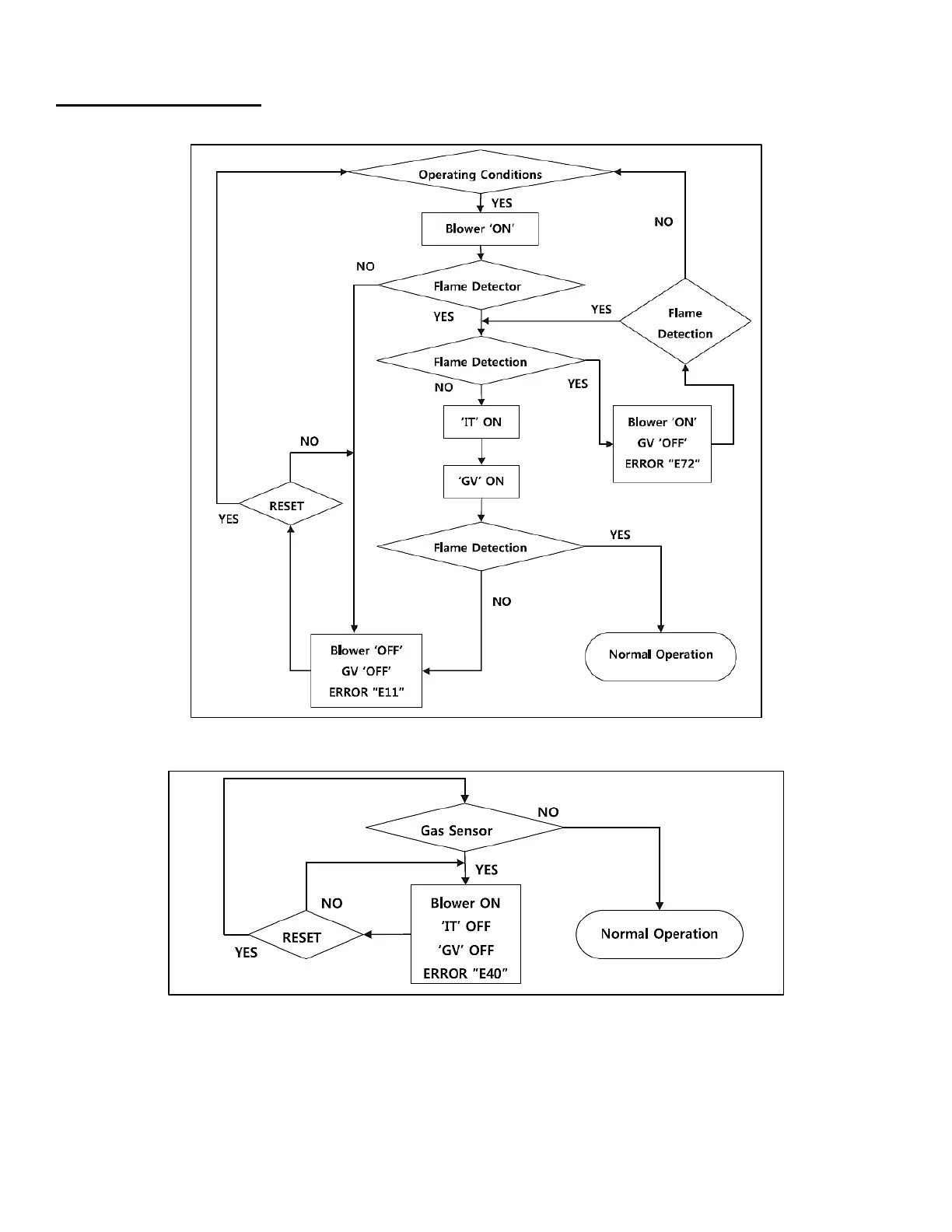

Figure 44 – Flame Detection Error Analysis Tree
2. GAS DETECTION
Figure 45 – Gas Detection Error Analysis Tree
