HTP EFTC-140W Installation & Startup

76
LP-520 REV. 5.1.17

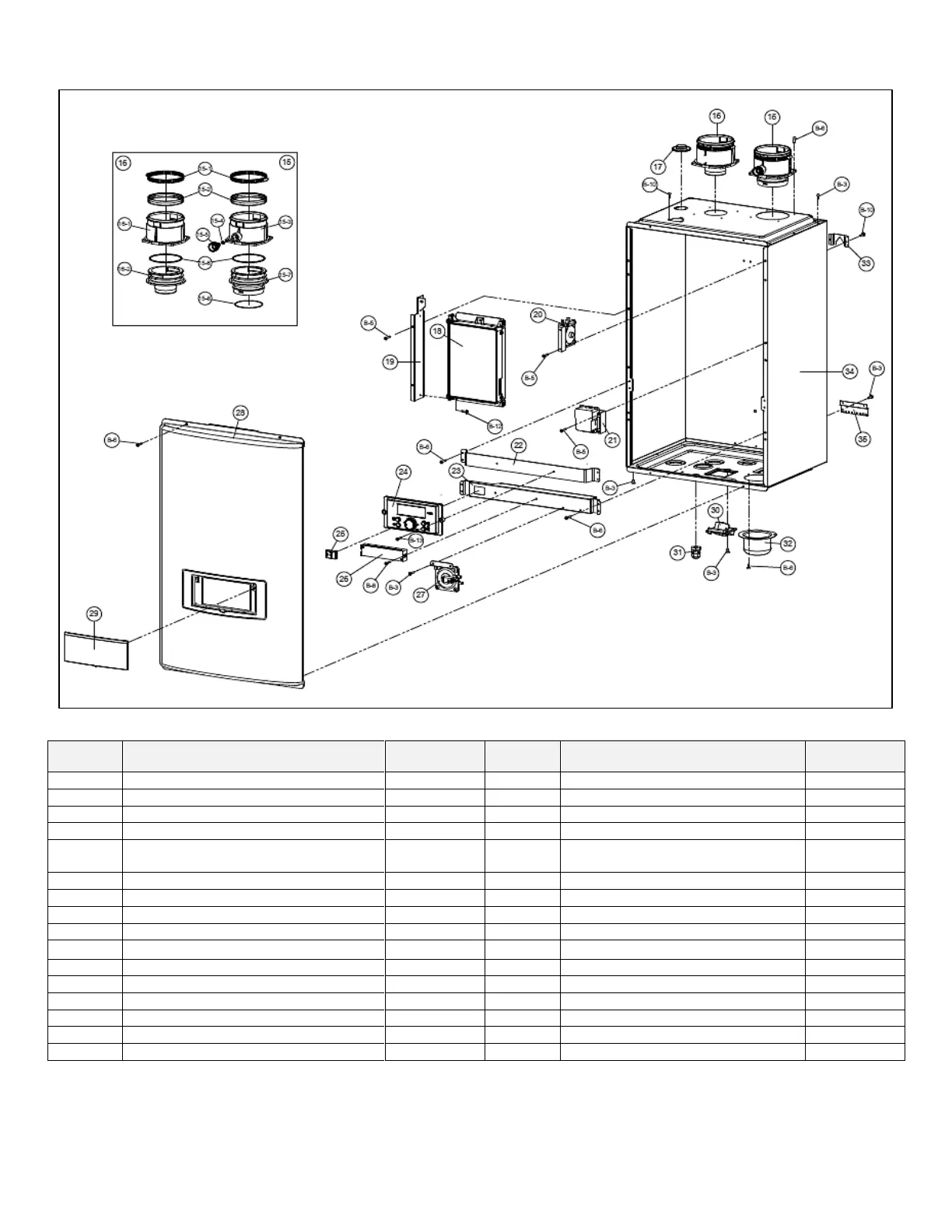

Figure 58 – Cabinet Replacement Parts – 140W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
15
Exhaust Duct (Assembly)
7855P-002
21
Ignition Transformer
7855P-007
15-1
Exhaust/Intake Duct Clamps (Φ100)
7855P-332
22
Control Panel Bracket
7855P-219
15-2
Exhaust/Intake Gaskets
7850P-210
23
Power Switch Bracket
7855P-220
15-3
Exhaust Duct
7855P-333
24
Display Panel
7855P-012
15-4
Combustion Analyzer port Plug
O-ring
7855P-334
25
Manual Power Switch
7855P-014
15-5
Combustion Analyzer port Plug
7855P-335
26
Terminal Block
7855P-015
15-6
Intake/Exhaust Adapter O-Ring (85 Φ)
7855P-256
27
Condensate Block APS
7855P-017
15-7
Exhaust Duct Inner Adapter
7855P-004
28
Front Cover
7855P-218
15-8
Exhaust Adapter O-Ring (75 Φ)
7855P-254
29
Display Panel Cover
7850P-023
16
Air Intake Cap (assembly)
7855P-003
30
CH Pressure Gauge
7855P-135
16-1
Air Intake Cap
7855P-337
31
Wire Gland
7855P-348
16-2
Air Intake Inner Adapter
7855P-338
32
Condensate Trap Cup
7855P-331
17
Air Vent Grommet
7855P-339
33
Top Wall Mount Bracket
7850P-068
18
Universal Control Board FT
7855P-217
34
Cabinet
7855P-226
19
Control Panel Bracket
7855P-219
35
Bottom Wall Mount Bracket
7850P-092
20
Air Pressure Switch
7855P-262
Table 34 – Cabinet Replacement Parts – 140W Models
