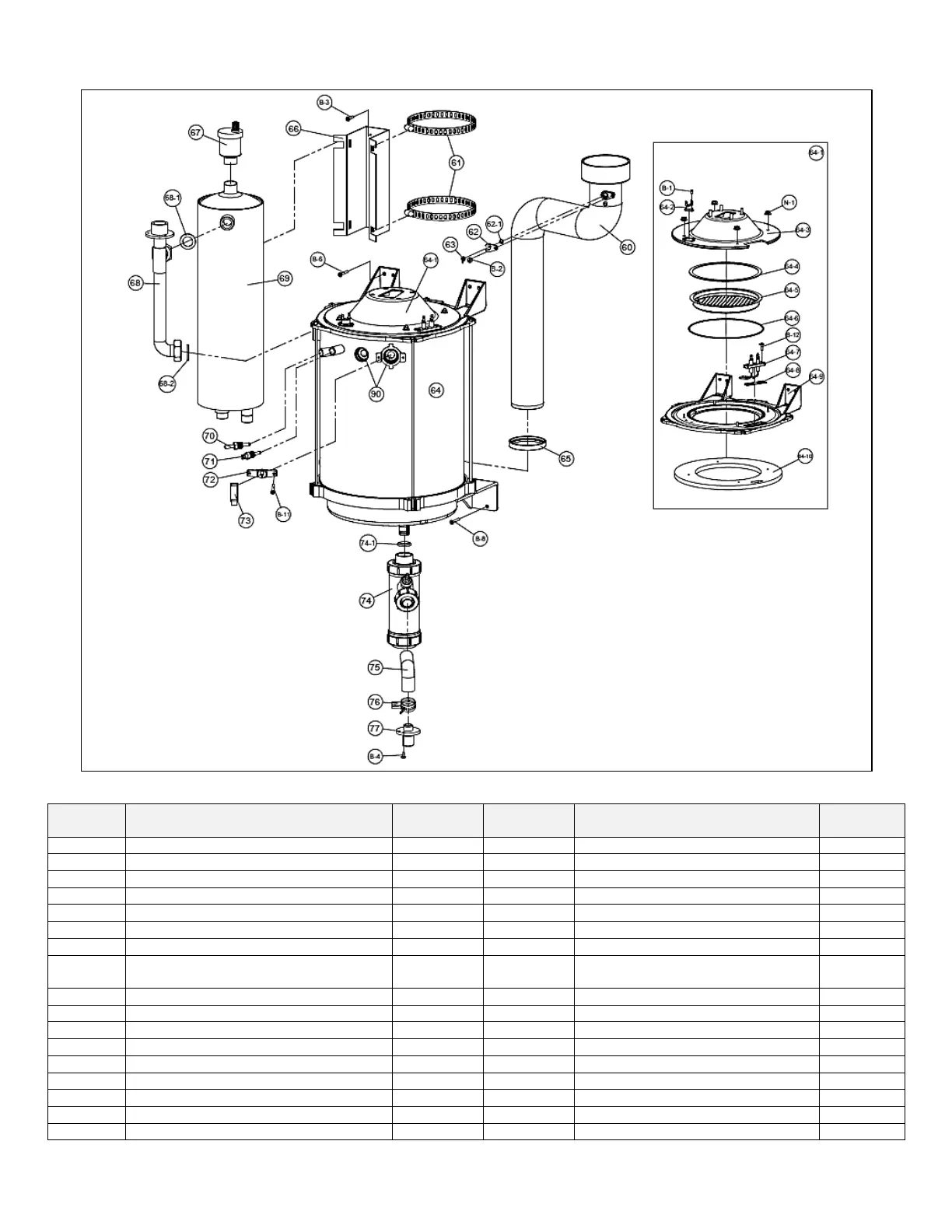

Figure 60 – Heat Exchanger Replacement Parts – 140W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
60
Exhaust Pipe
7855P-237
66
Storage Tank Bracket
7855P-298
61
Storage Tank Clamp
7855P-297
67
Air Vent
7855P-063
62
Exhaust Temperature Sensor Clip
7855P-349
68
CH Supply Upper Pipe
7855P-239
62-1
Exhaust Temperature Sensor O-ring
7855P-092
68-1
3/4" CH Supply Pipe Gasket
7855P-073
63
Exhaust Temperature Sensor
7855P-092
68-2
1" CH Supply Pipe Gasket
7855P-074
64
Heat Exchanger Assembly
7855P-353
69
Internal DHW Storage Tank
7855P-240
64-1
Burner Body Assembly
7855P-354
70
CH Supply Temperature Sensor
7855P-030
64-2
Burner Overheat Switch
7855P-066
71
Water Level Detection Sensor (Low
water Cutoff)
7855P-029
64-3
Burner Body
7855P-067
72
Flame sensor bracket
7855P-356
64-4
Burner Gasket
7855P-266
73
Flame sensor
7855P-031
64-5
Ceramic Fiber Burner
7855P-069
74
Condensate Trap Assembly
7855P-053
64-6
Burner plate O-Ring
7855P-249
74-1
Burner Body Assembly
7855P-354
64-7
Ignition Rod
7855P-068
75
Condensate Trap drain hose
7855P-255
64-8
Igniter Gasket
7855P-252
76
Condensate trap clamp (Φ23)
7855P-366
64-9
Heat Exchanger Top
7855P-355
77
Condensate Outlet Adapter
7855P-224
64-10
Burner Refractory
7855P-253
90
Sight Glass Assembly
7855P-401
65
Exhaust pipe Gasket
7855P-351
Table 36 – Heat Exchanger Replacement Parts – 140W Models
