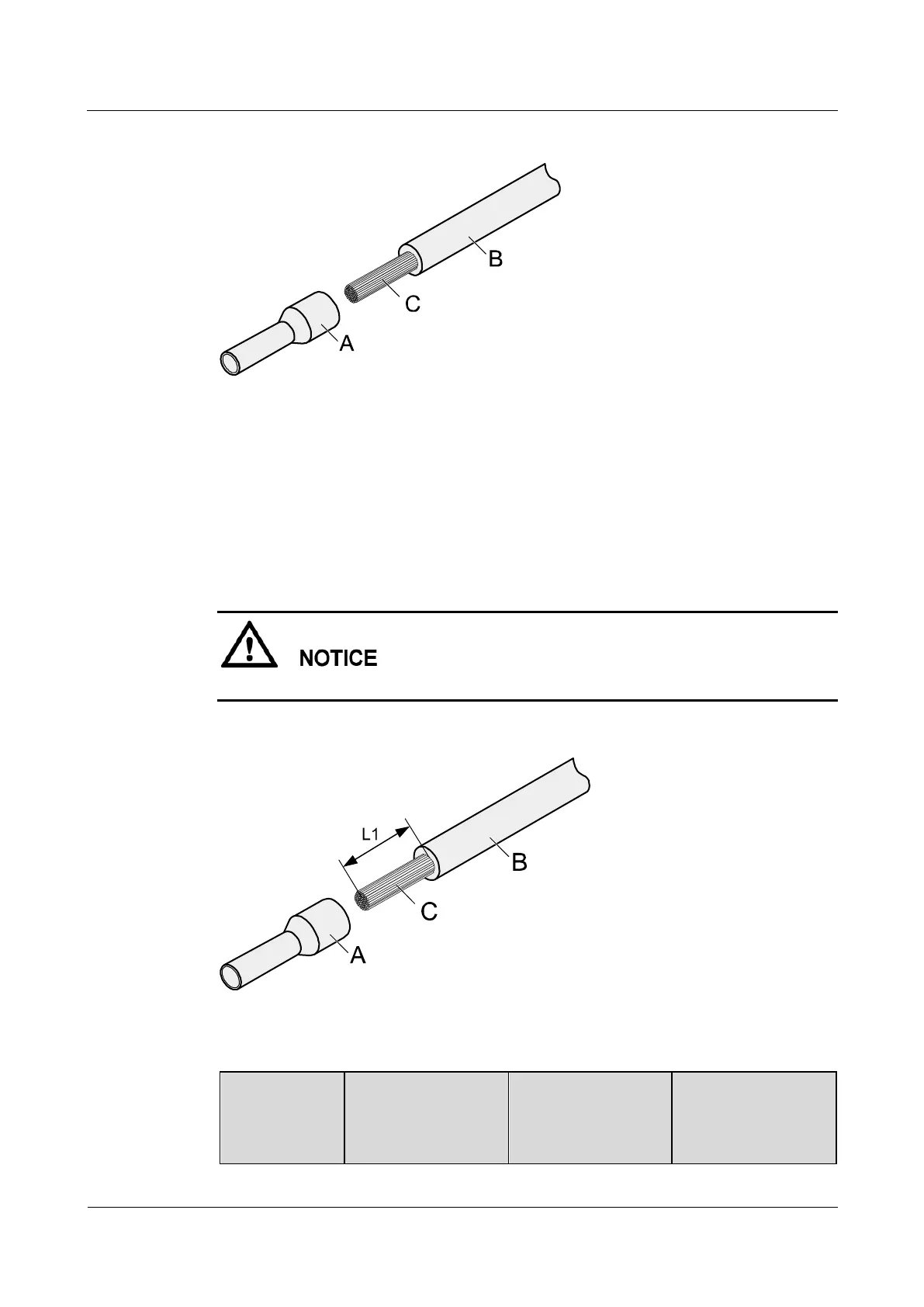

Figure 5-32 Components of a cord end terminal and a power cable
A. Cord end
terminal
B. Insulation layer of a power
cable
C. Conductor of a power
cable
Procedure
Step 1 Strip a part of the insulation to expose the cable conductor with a length of L1, as shown in
Figure 5-33. The recommended values of L1 are listed in Table 5-4.
When you strip a power cable, do not damage the conductor of the cable.
Figure 5-33 Stripping a power cable (cord end terminal)
Table 5-4 Mapping between the cross-sectional area of the conductor and the value of L1
Cross-Section
al Area of
Conductor
(mm
2
(in.
2
))
Value of L1
(mm(in.))
Cross-Sectional
Area of Conductor
(mm
2
(in.
2
))
Value of L1
(mm(in.))
