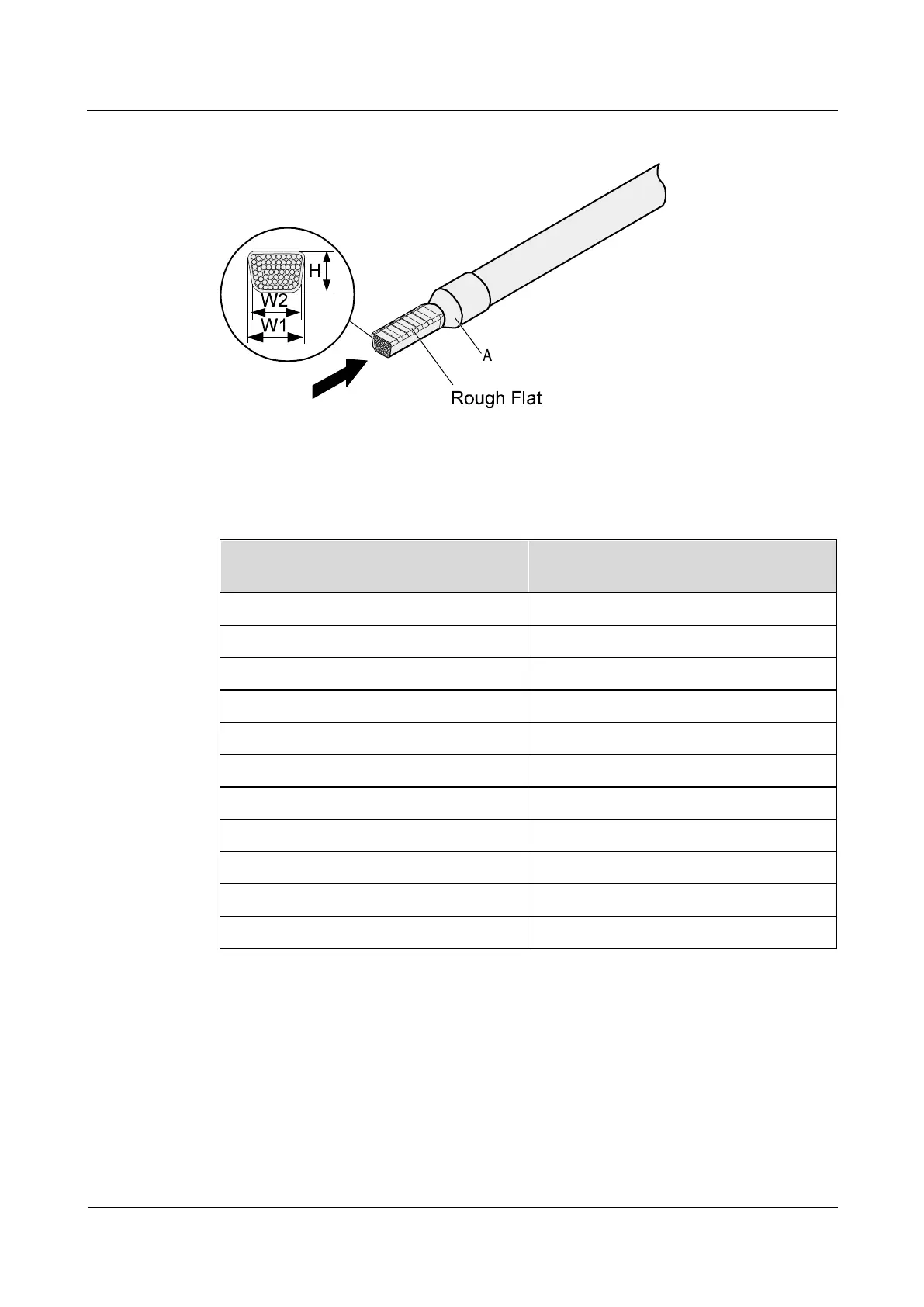

Figure 5-35 Crimping the cord end terminal and the conductor
Step 4 Check the maximum width of the tubular crimped terminal. The maximum width of a tubular
crimped terminal is listed in Table 5-5.
Table 5-5 Maximum width of a tubular crimped terminal
Cross-Sectional Area of Tubular
Terminal (mm
2
(in.
2
))
Maximum Width of Crimped Terminal
W1 (mm(in.))
0.25 (0.0004)
1 (0.04)
0.5 (0.0008)
1 (0.04)
1.0 (0.0015)
1.5 (0.06)
1.5 (0.0023)
1.5 (0.06)
2.5 (0.0039)
2.4 (0.09)
4 (0.006)
3.1 (0.12)
6 (0.009)
4 (0.16)
10 (0.015)
5.3 (0.21)
16 (0.025)
6 (0.24)
25 (0.039)
8.7 (0.34)
35 (0.054)
10 (0.39)
----End
