BoostLi Energy Storage Module ESM-48100B1
User Manual
4 Installation and Commissioning
Copyright © Huawei Technologies Co., Ltd.
Procedure
Step 1 Wear the protective gloves.
Step 2 Install the ESM ground cable.

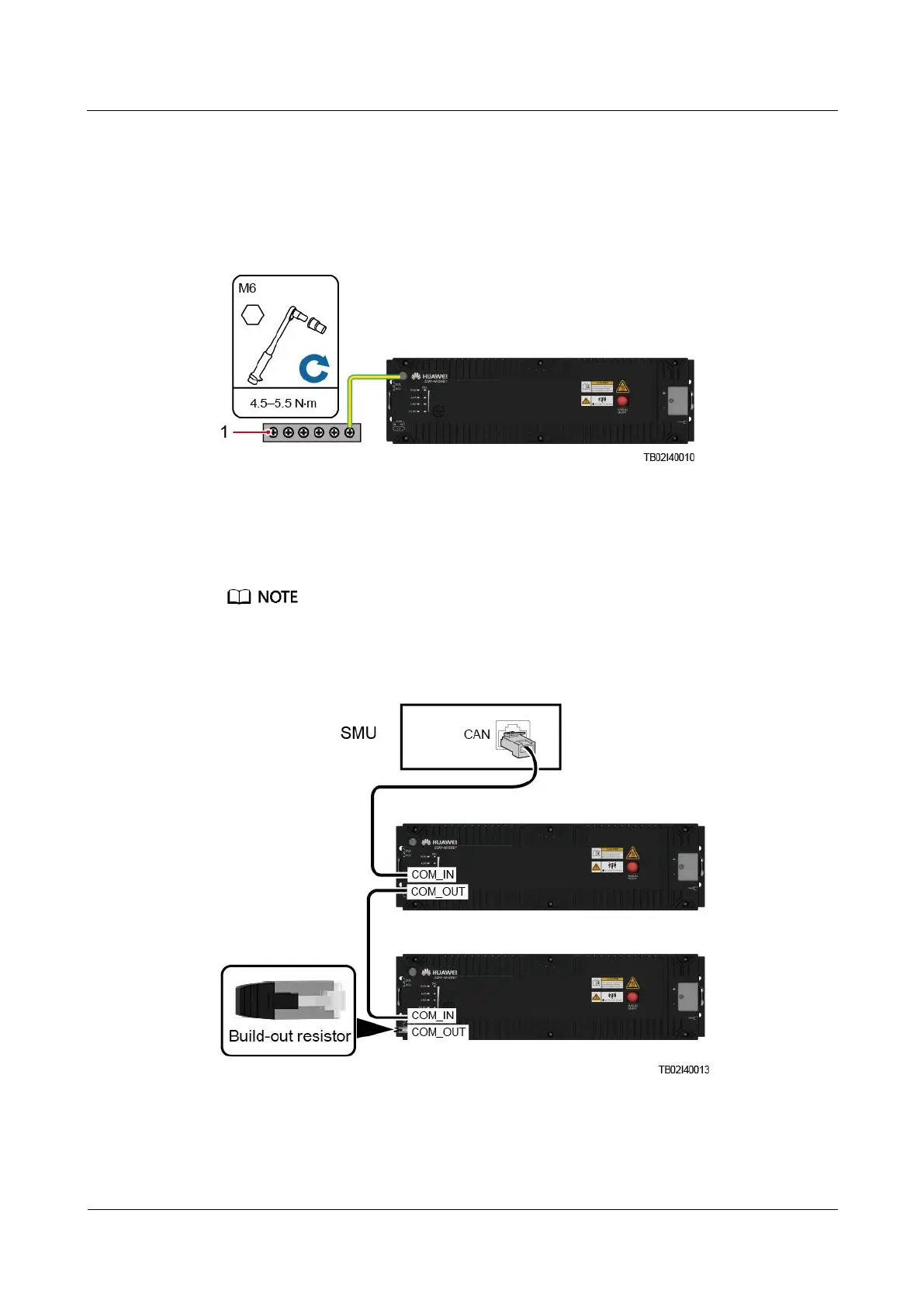

Figure 4-4 Installing the ESM ground cable
Step 3 Install the ESM communications cables.
After the ESM communications cables are installed, connect a build-out resistor to the COM_OUT port
of the last ESM.
Figure 4-5 Installing the ESM communications cables (Method 1)
