BoostLi Energy Storage Module ESM-48100B1
User Manual
4 Installation and Commissioning
Copyright © Huawei Technologies Co., Ltd.
The weight of an ESM-48100B1 is about 44 kg. Check the load-bearing capability of the
rack tray before installation.
ESM-48100B1 is 396 mm deep. Check the rack depth before installation.
The ESM can be installed in a 19-inch rack with guide rails and a tray. Check whether the
load-bearing capability meets requirements.
If multiple ESMs are installed, clearances should be reserved. The average space for each
ESM should be at least 3 U. It is not supported to stack ESMs or make an ESM land on its
back panel.
Install ESMs from bottom to top. You are advised to install ESMs on three layers.

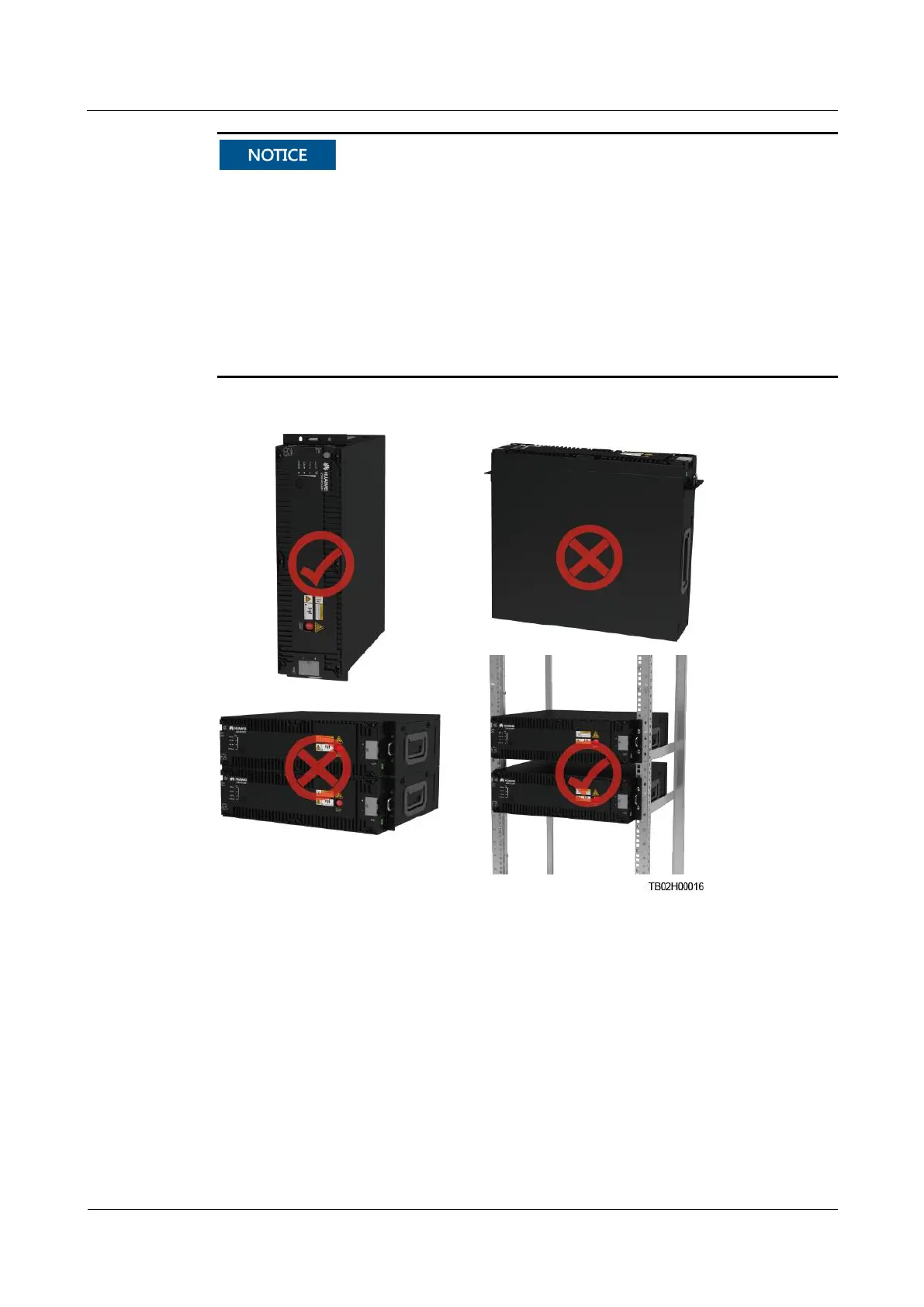

Figure 4-3 Correct installation diagram
----End
4.2 Cable Connections (Huawei Power System)
Prerequisite
The ESM has been correctly installed.
The protective gloves, socket wrench, and cabinet door key are available.
