When installing the ESM power cable, ensure that the protruding part of the OT terminal
on the cable faces outward.

Do not connect two or more cables to the positive and negative power ports of the ESM in
parallel.

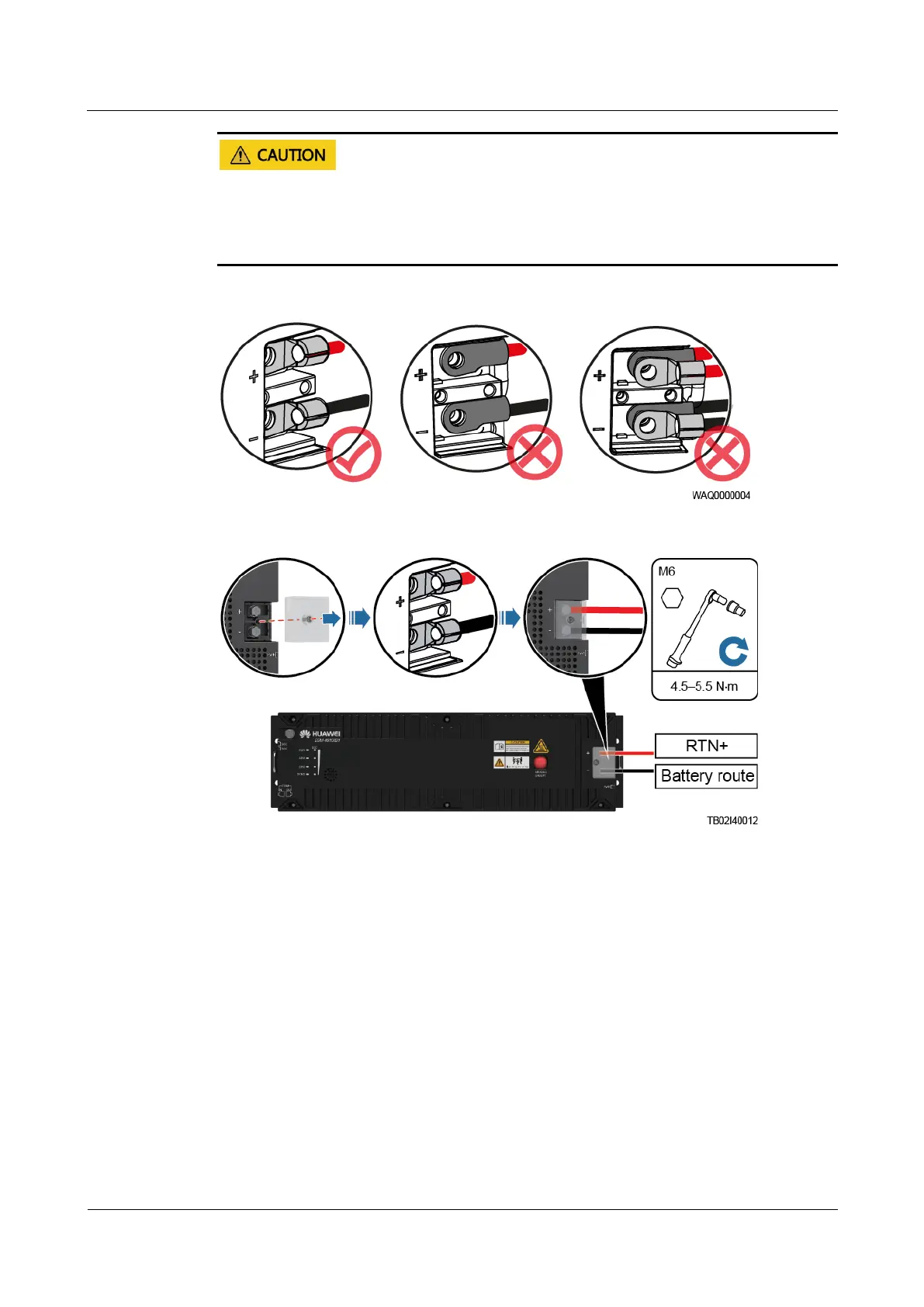

Figure 4-9 Connection of ESM power cables
Figure 4-10 Installing negative and positive power cables for the ESM
Step 7 Remove the protective gloves and pack up all tools.
----End
4.3 Cable Connections (Third-Party Power System)
Prerequisite
The ESM has been correctly installed.
The protective gloves, socket wrench, and cabinet door key are available.
