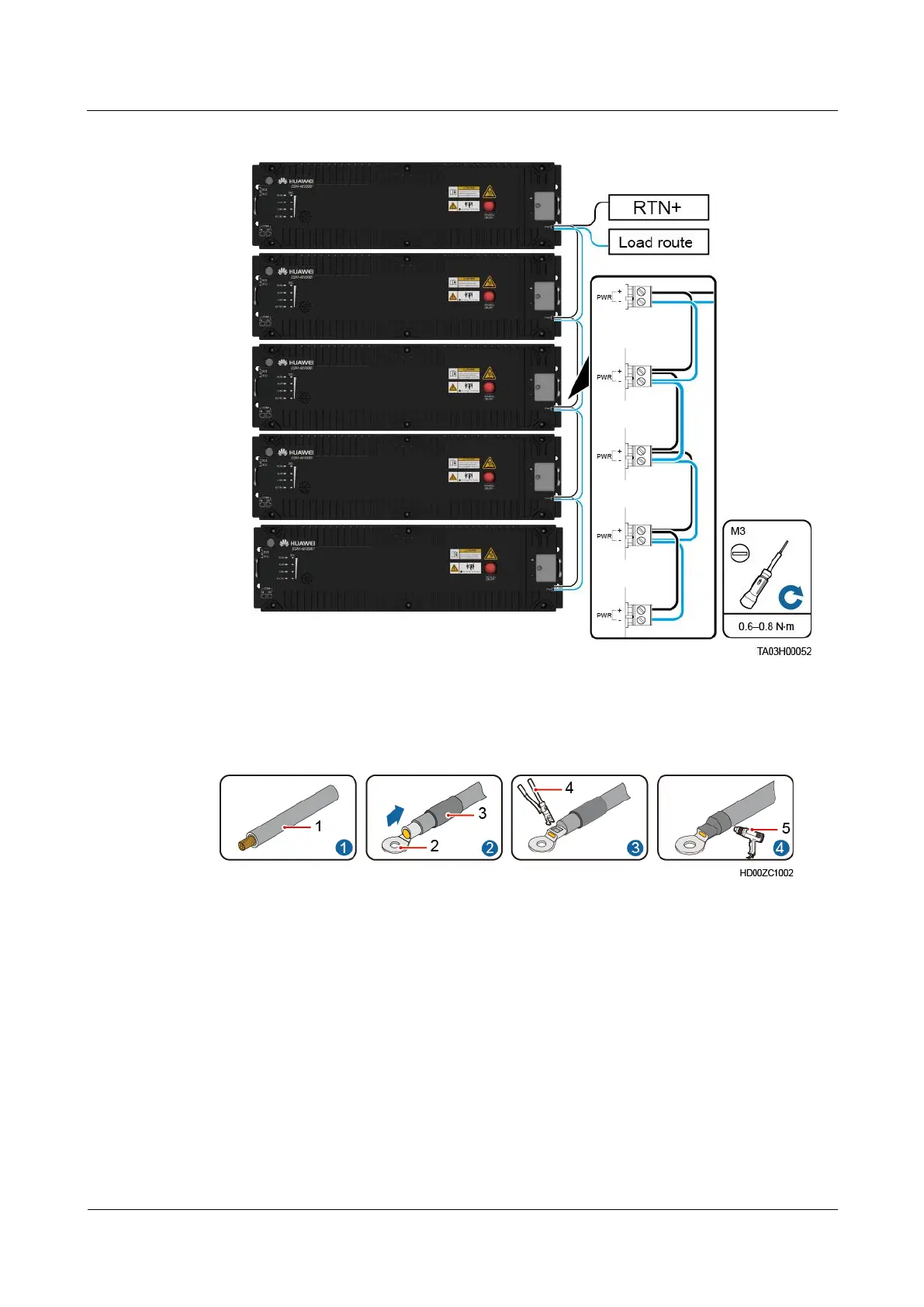

Figure 4-7 Installing the PWR activation cables for the ESM
Step 5 Assemble an OT terminal with the ESM power cable.
Figure 4-8 Preparing an OT terminal
(1) Cable
(2) OT terminal
(3) Heat shrink tubing
(4) Hydraulic pliers
(5) Heat gun
Step 6 Install negative and positive power cables of the ESM.
