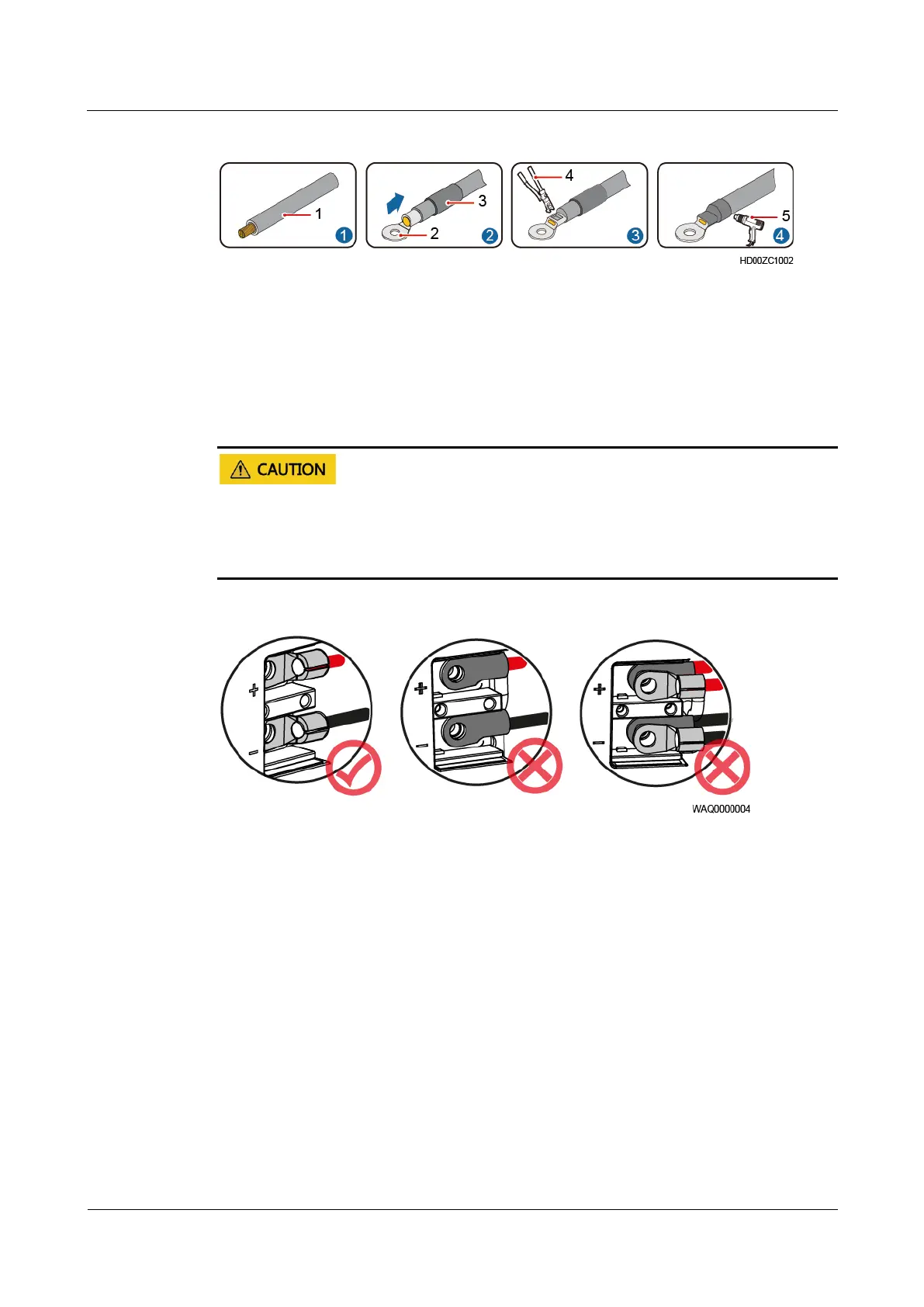

Figure 4-13 Preparing an OT terminal
(1) Cable
(2) OT terminal
(3) Heat shrink tubing
(4) Hydraulic pliers
(5) Heat gun
Step 5 Install negative and positive power cables of the ESM.

When installing the ESM power cable, ensure that the protruding part of the OT terminal
on the cable faces outward.

Do not connect two or more cables to the positive and negative power ports of the ESM in
parallel.
Figure 4-14 Connection of ESM power cables
