eA660 Series CPE
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

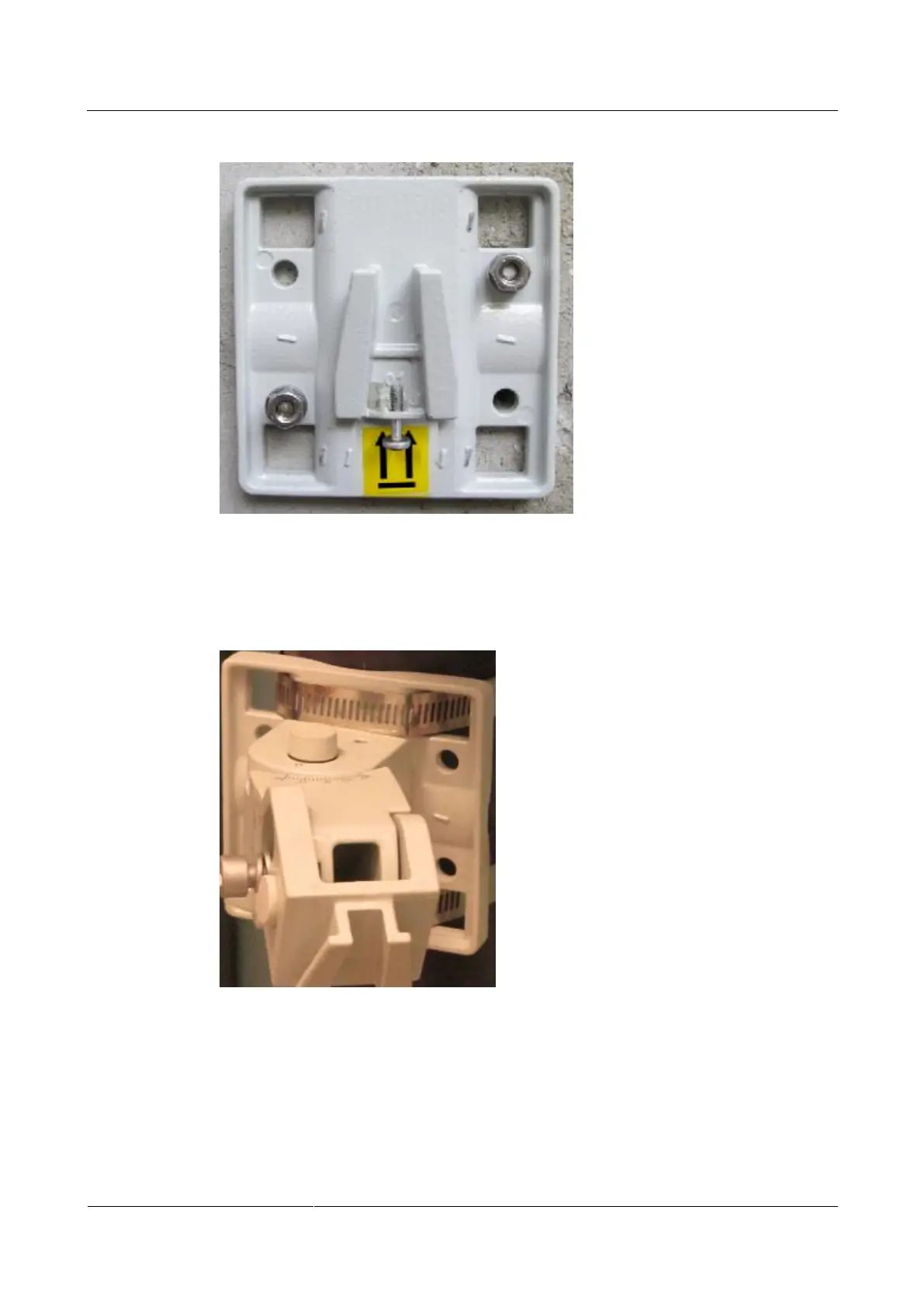

Figure 3-37 Fixing the wall-mounting frame
Step 5 Fix the angel adjusting component onto the mounting frame using the dovetail groove, as
shown in Figure 3-38.
Figure 3-38 Fixing the angle adjusting component onto the mounting frame
Step 6 Adjusting the vertical angle and horizontal angle.
Use the M8 hex key to loosen the the hex screws on the left of the angle adjusting
component, and adjust the vertical angle by rotating the front end of the angle adjusting
component, as shown in Figure 3-39. Then tighten the hex screws.
