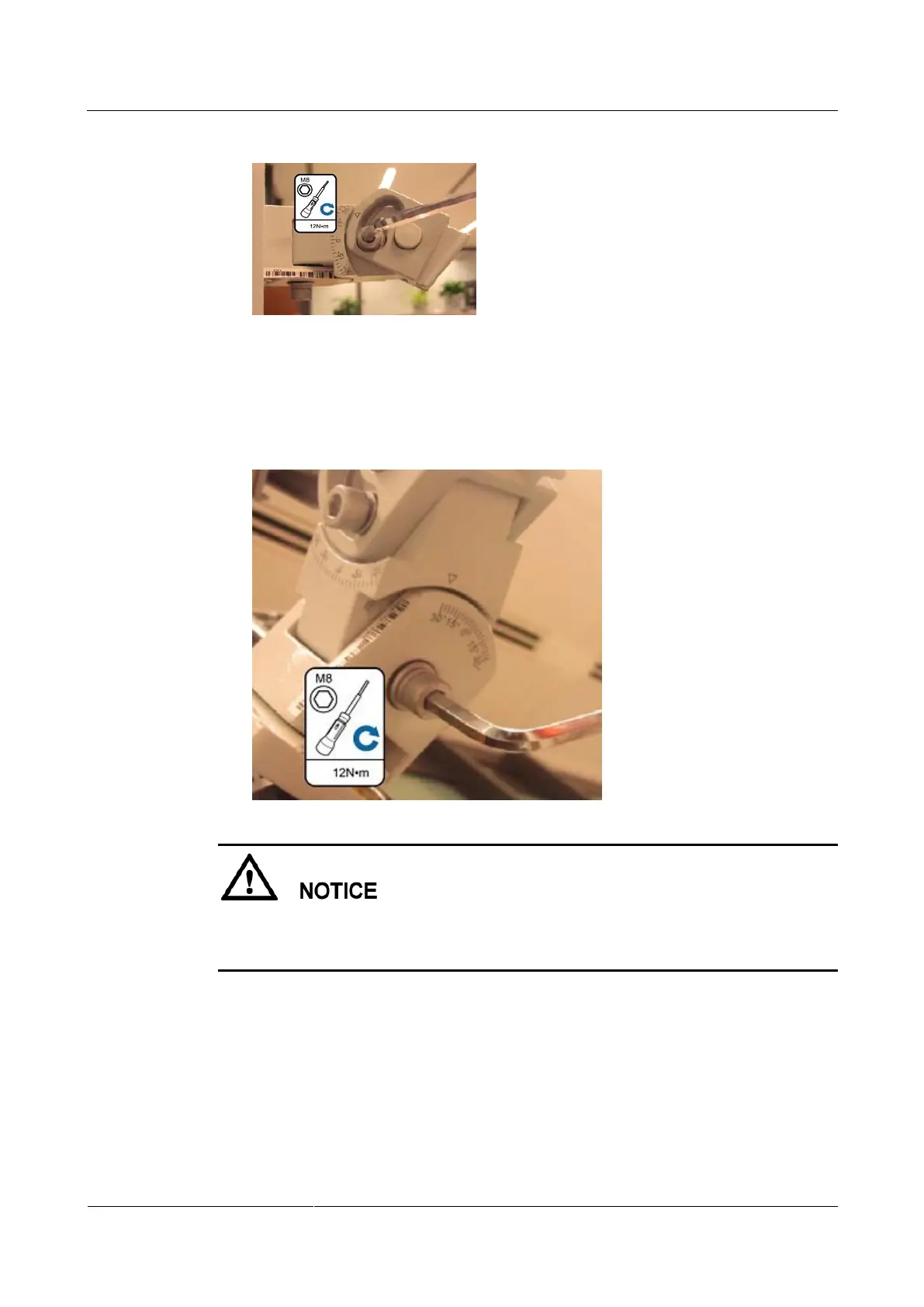

Figure 3-39 Adjusting the vertical angle
Use the M8 hex key to loosen the the hex screws on the left of the angle adjusting
component, and adjust the vertical angle by rotating the front end of the angle adjusting
component, as shown in Figure 3-40. Then tighten the hex screws.
Figure 3-40 Adjusting the horizontal angle
The gears of the horizontal angle adjusting part is tightly fit in. Consequently, the horizontal
angle is difficult to adjust. When adjusting the horizontal angle, after you loosen the hex
screws, you must lift the front end of the angle adjusting component to separate the gears.
Step 7 Tighten the angle adjusting component's screw, as shown in Figure 3-41.
