eA660 Series CPE
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

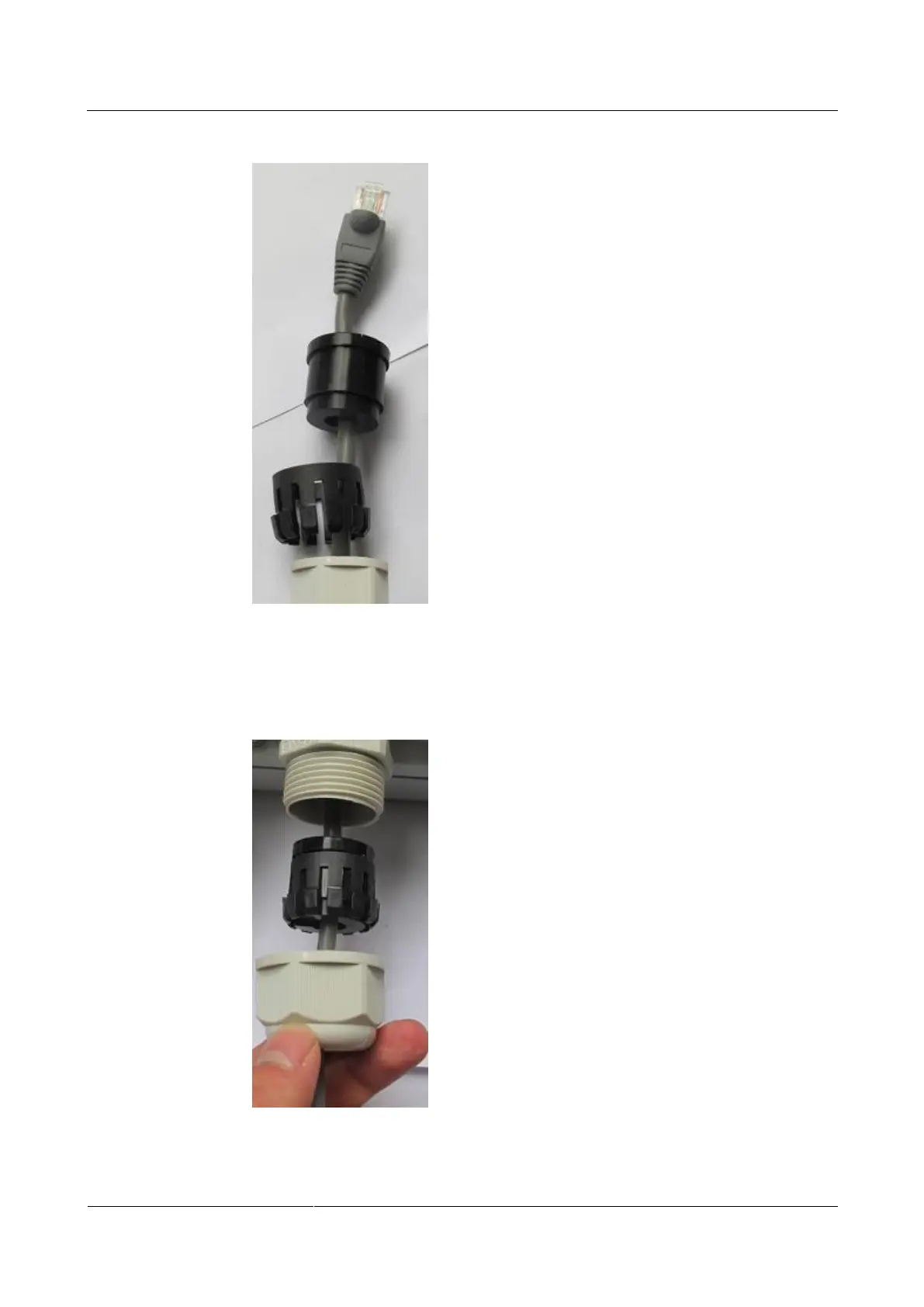

Figure 3-46 Passing the network cable through the PG-head screw cap and air-proof block
Connect the network cable to the network adapter, and manually rotate the screw cap to
ensure that the lock block adheres to the network cable, as shown in Figure 3-47.
Figure 3-47 Installing the PG-head screw cap and air-proof block
Step 4 Connect the PoE adapter.
