4
1.2.2 Rear Panel

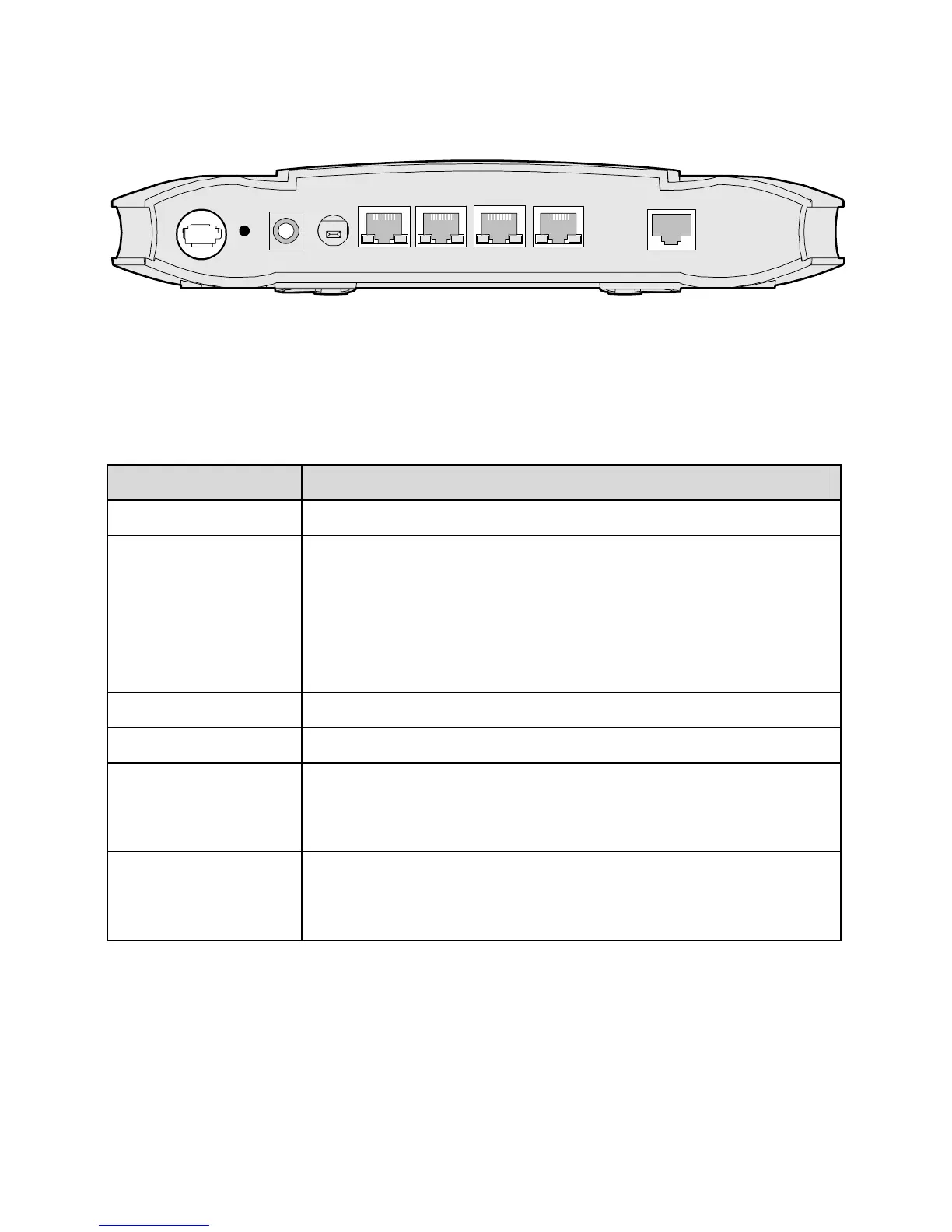

Figure 1-2 shows the rear panel of the HG520s.
ADSL
LAN1 LAN2 LAN3 LAN4
ON/ OFF
POWER
RESET
Figure 1-2 Rear panel of the HG520s
Table 1-2 shows interfaces and buttons in the rear panel.
Table 1-2 Interfaces and Buttons in the rear panel
Interface/Button Description
Antenna Antenna for wireless Internet access.
RESET
To restart the HG520s, press the RESET button and
release it within three seconds. To restore the default
settings of the HG520s, press the RESET button and
release it after three seconds. Once you use this
function, all your custom settings will be lost. Therefore,
please be careful when using it.
POWER Connect to the power adapter.
ON/OFF Power on/off the HG520s.
LAN 1–4
Ethernet interfaces.
To connect LAN network devices (such as a computer
and a switch).
ADSL
ADSL interface.
To connect the telephone jack or a splitter through a
telephone line.
1.2.3 Splitter
The external splitter can efficiently reduce the signal disturbance
on the telephone line. When voice and data are transmitted through the
