e. Click Done.

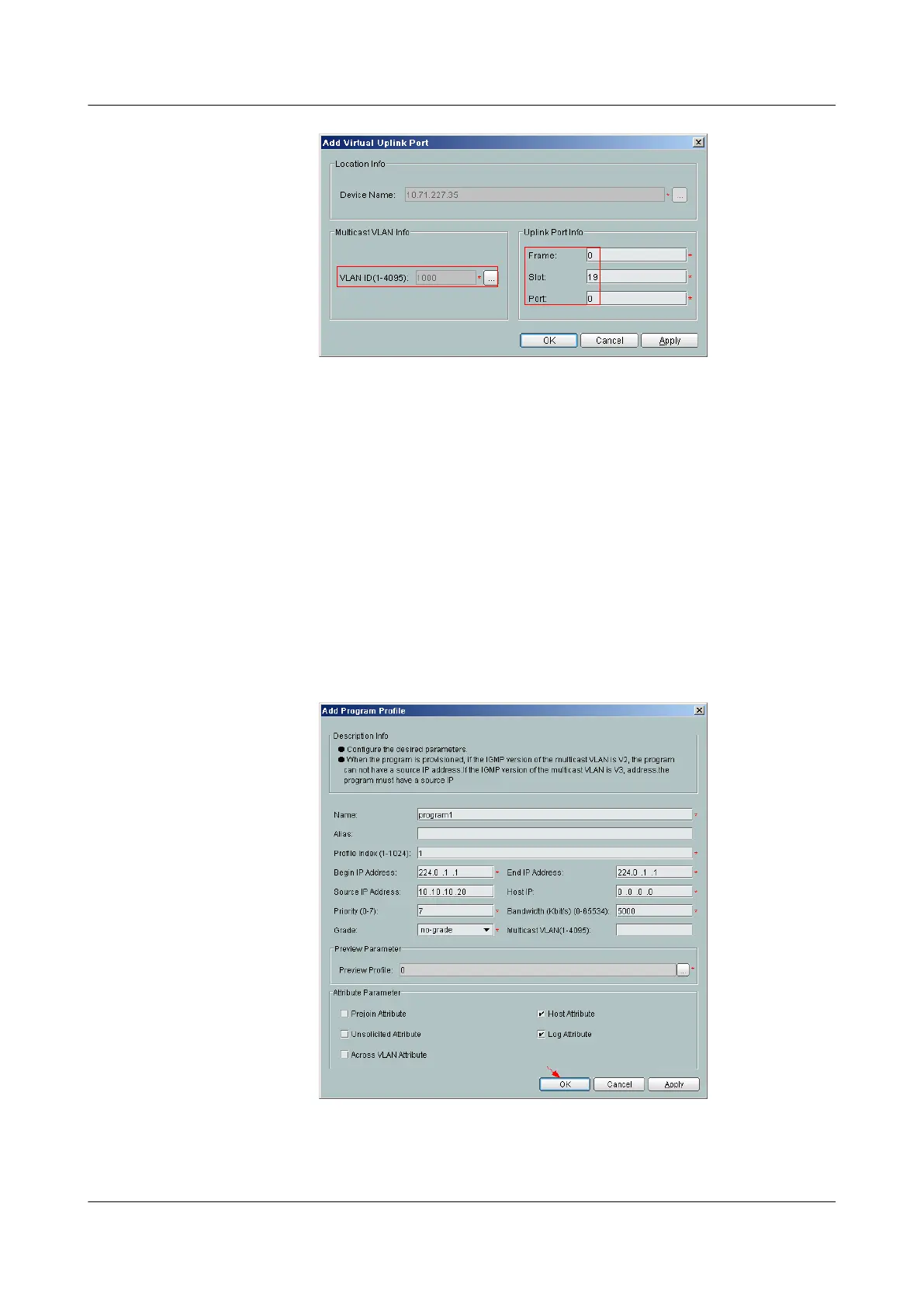

6. Configure a program profile on the OLT side.
a. Choose Configuration > Access Profile Management from the main menu. In
the dialog box that is displayed, choose IGMP Profile from the navigation tree.
b. Click the Program Profile tab, and select the required device type from the
Device Type drop-down list.
c. Right-click and choose Add Global Profile from the shortcut menu.
d. In the dialog box that is displayed, set the parameters.
– Name: program1
– Start IP Address: 224.0.1.1 (IP address of the multicast program)
– End IP Address: 224.0.1.1
– Source IP Address: 10.10.10.20 (IP address of the multicast server)
– Preview Profile: 0 (the default value)
e. Click OK.
f. In the information list, right-click the record and choose Download to NE from
the shortcut menu.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
108
