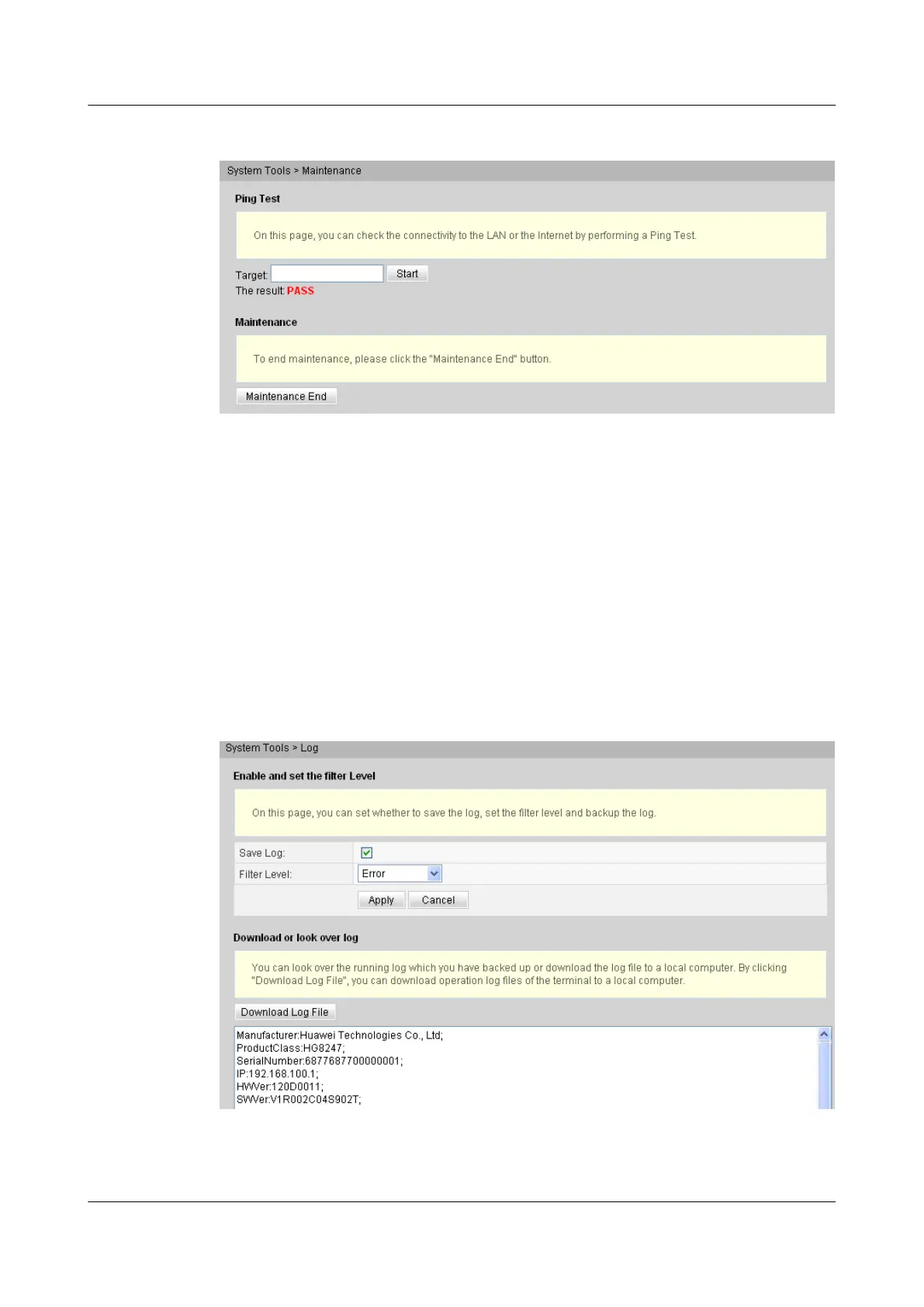

Figure 5-48 Ping test
l If the ping test is successful, The result is displayed as PASS, that is, the ONT can interwork
with the device with the destination IP address.
l If the ping test fails, The result is displayed as FAIL, that is, the ONT cannot interwork
with the device with the destination IP address.
5.10.7 Log
In the navigation tree on the left, choose System Tools > Log. In the pane on the right, click
Download log File. In the dialog box that is displayed, click Save, specify the path of saving
the log file, and save the file to the local disk, as shown in Figure 5-49.
Figure 5-49 Log
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 5 Web Page Reference
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
346
