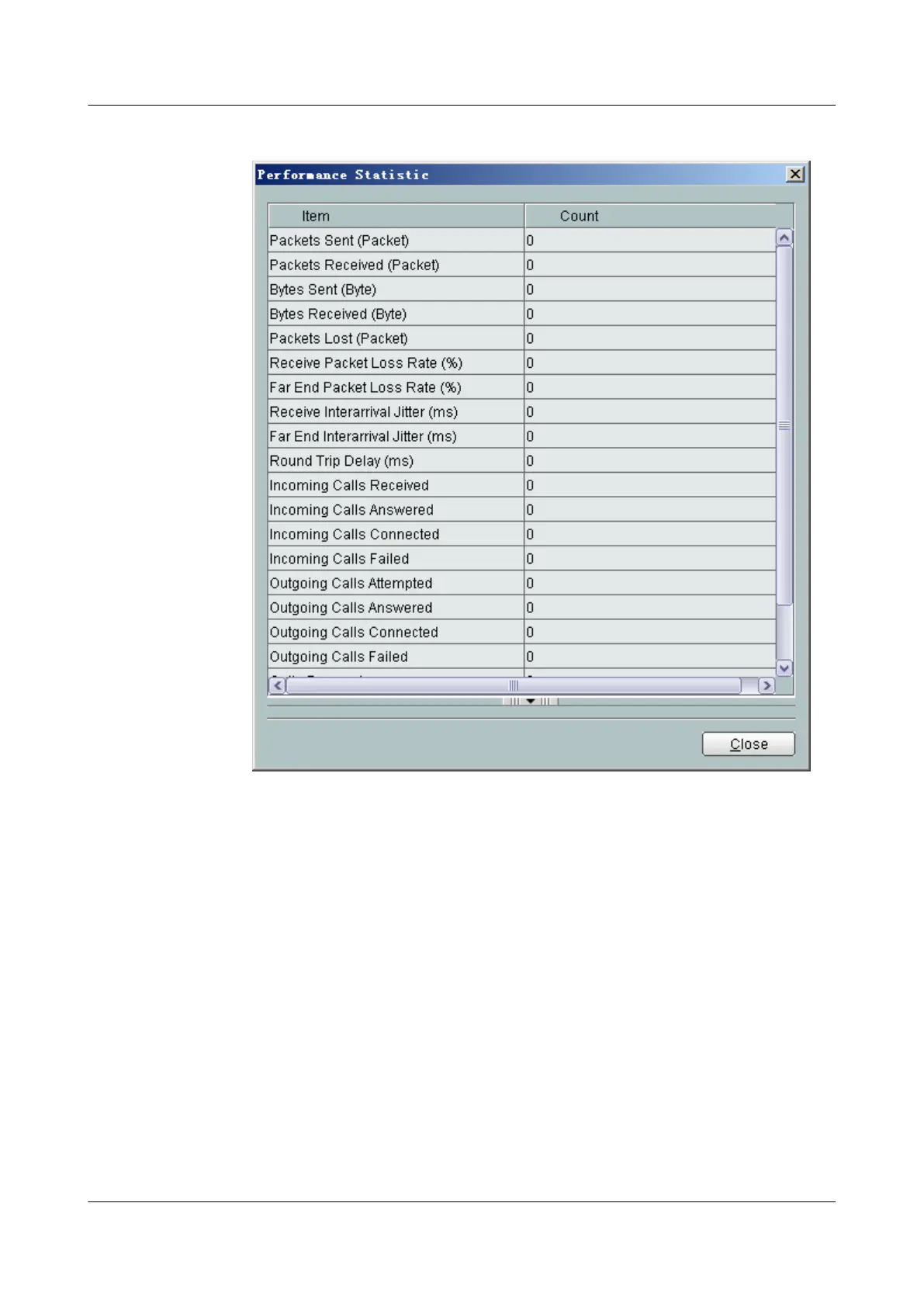

Figure 4-11 Querying VoIP statistics
Step 7 Delete VoIP statistics.
1. Select a record from the list, right-click, and then choose Clear Performance Statistic.
2. In the dialog box that is displayed, click Yes.
3. Perform step 2 to check whether VoIP statistics are deleted.
----End
4.5.5 Caller Emulation Test
The caller emulation test verifies the basic calling services and preliminarily locates a fault.
Prerequisite
l The OLT and the NMS communicate with each other properly.
l The NMS is able to discover an online ONT and VoIP service parameters are configured.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 4 Maintenance and Troubleshooting
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
290
