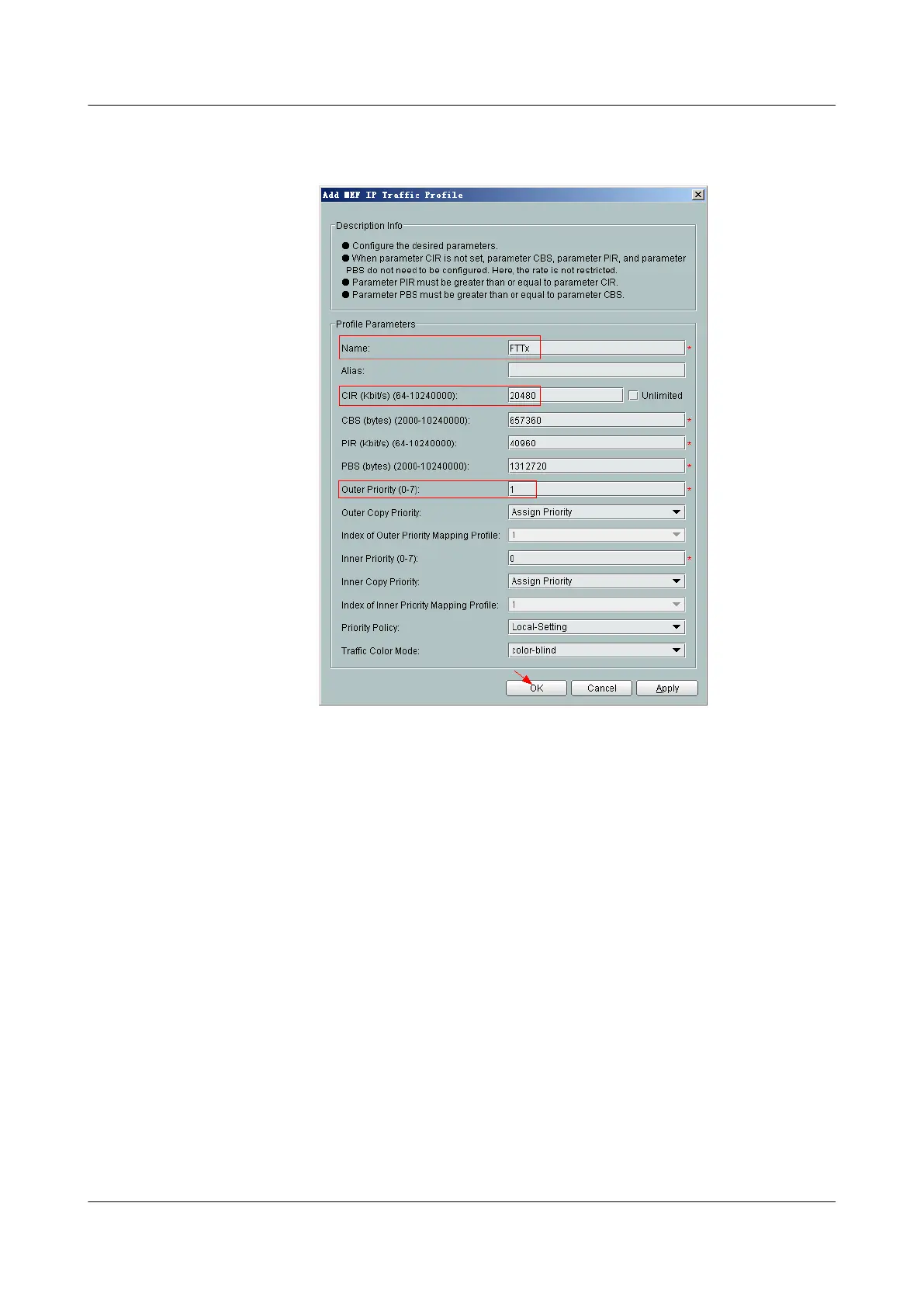

– CIR: 20480
– Outer Priority: 1
e. Click OK.
f. In the information list, right-click the record and choose Download to NE from
the shortcut menu.
g. In the dialog box that is displayed, select the required NE(s), and click OK.
2. Configure a DBA profile.
a. Choose Configuration > Access Profile Management from the main menu. In
the dialog box that is displayed, choose PON Profile > GPON Profile from the
navigation tree.
b. Click the DBA Profile tab.
c. Right-click and choose Add Global Profile from the shortcut menu.
d. In the dialog box that is displayed, set the parameters.
– Name: FTTx
– T-CONT type: Maximum Bandwidth
– Maximum Bandwidth: 32768
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
64
