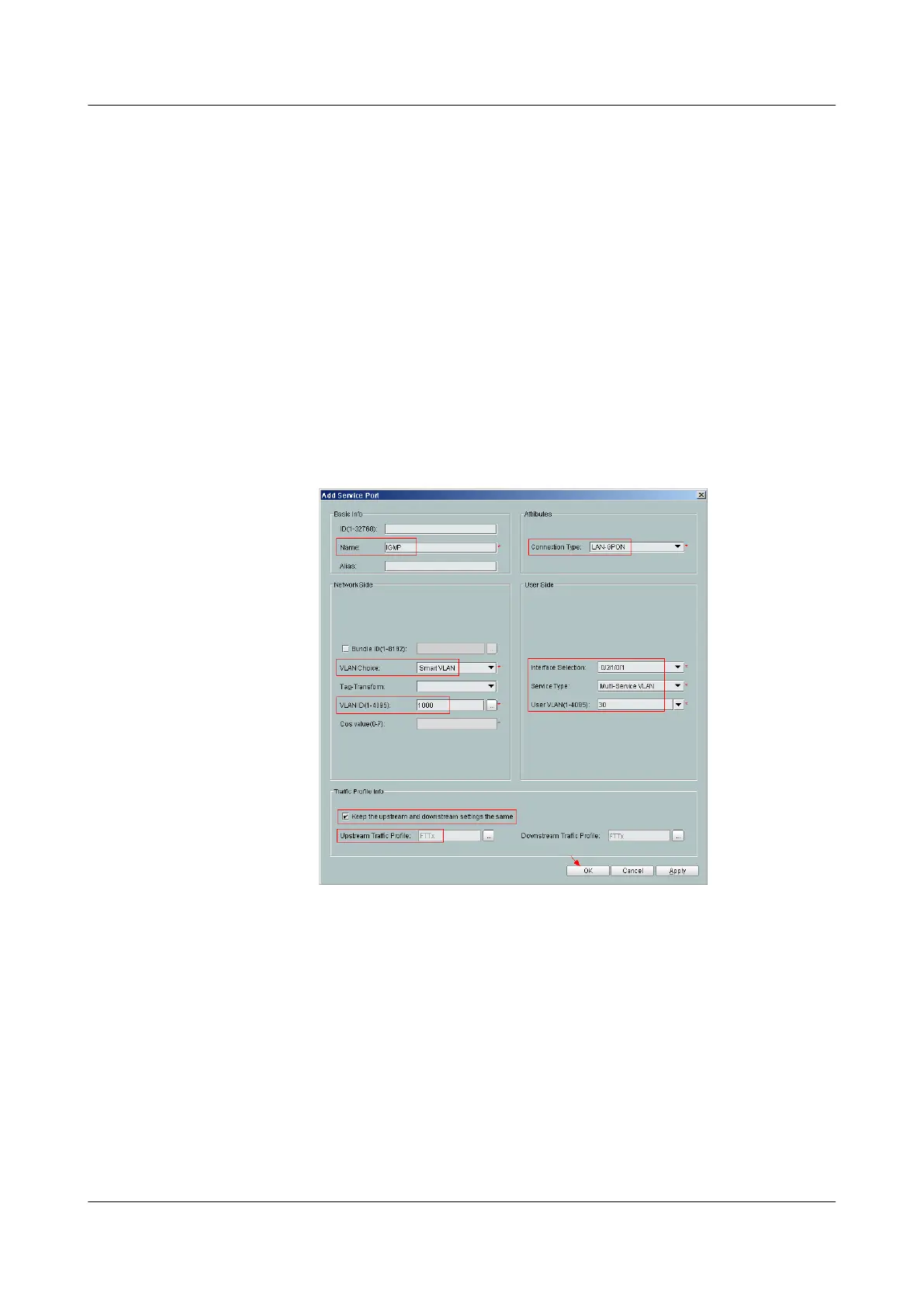

c. In the dialog box that is displayed, set the parameters.
– Name:IGMP
– VlAN Choice: Smart VLAN
– Connection Type: LAN-GPON (when the physical port is a GPON port) or
LAN-EPON (when the physical port is an EPON port)
– Interface Selection: 0/2/1/0/1 (when the connection type is LAN-GPON) or
0/2/1/0 (when the connection type is LAN-EPON)
– Vlan ID: 1000 (SVLAN ID)
– Service Type: Multi-Service VLAN
– User VLAN: 30 (CVLAN ID)
– Keep the upstream and downstream settings the same: selected
– Upstream Traffic Name: ip-traffic-table_6 (it is recommended that you use
the default profile ip-traffic-table_6 because the OLT does not limit the rates
of service streams)
d. Click OK.
3. Add a multicast VLAN on the OLT side.
a. Choose Multicast > Multicast VLAN from the navigation tree.
b. On the Multicast VLAN tab page, set the filter criteria to display the required
multicast VLANs.
c. In the information list, right-click and choose Add from the shortcut menu.
d. In the dialog box that is displayed, set the parameters.
– IGMP Version: IGMP V3
– Work Mode: igmp_proxy
– VLAN ID: 1000
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
120
