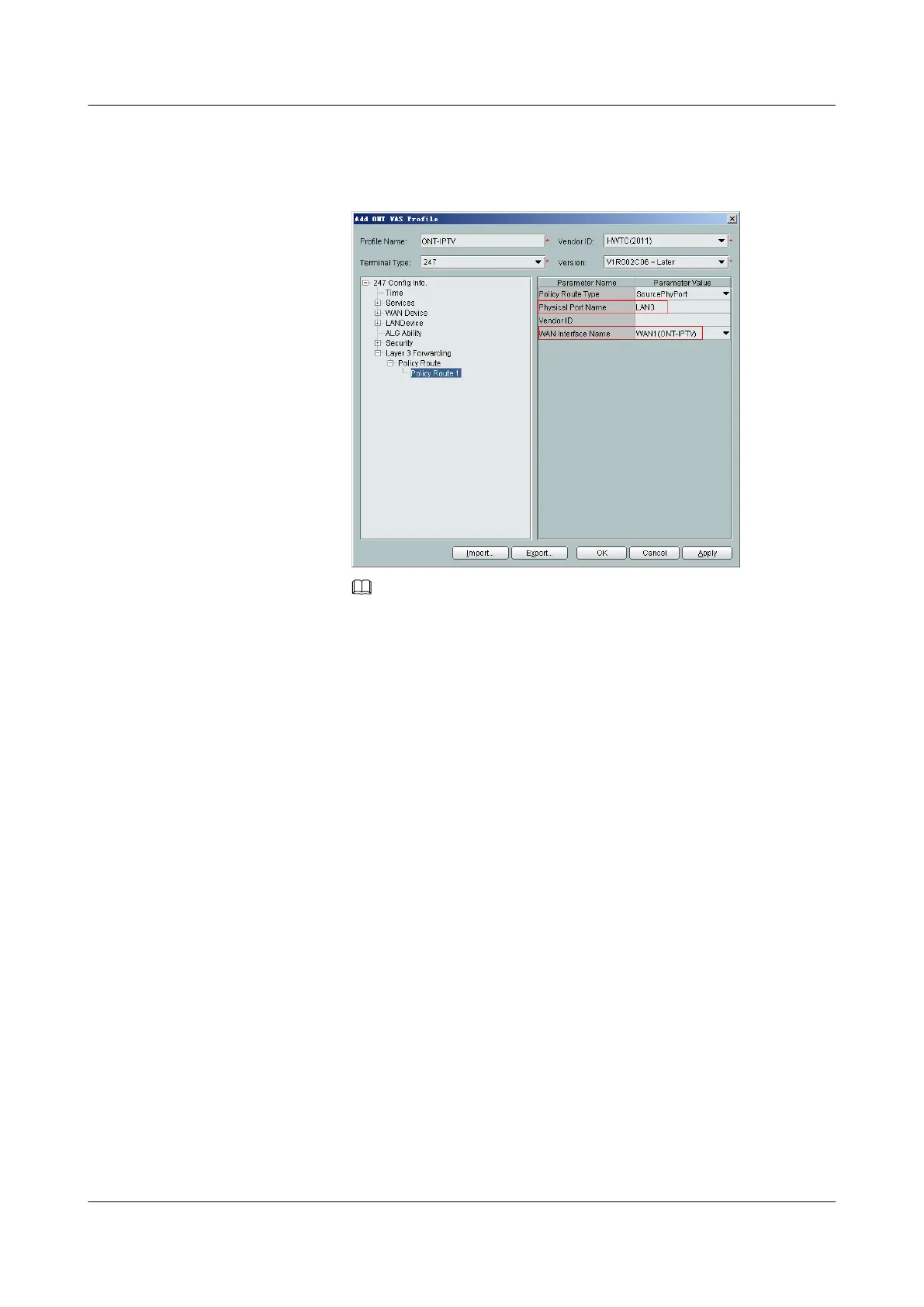

b. Select Policy Route 1 and enter proper values.
– Physical Port Name: LAN3
– WAN Interface Name: WAN1(ONT-IPTV)
NOTE
To bind a LAN port to a WAN port, set Physical Port Name and WAN Interface
Name. The preceding figure shows that WAN 1 is bound to LAN 3.
To bind a WAN port to multiple LAN ports, set Physical Port Name to
LAN1,...,LANx. For example, to bind WAN 1 to LAN 1 and LAN 2, set Physical Port
Name to LAN1,LAN2.
h. Click OK to complete the configuration of the new profile.
3. Bind the value-added service profile.
a. In the Physical Map navigation tree on the Main Topology tab page, double-
click the target OLT, or select the target OLT, right-click, and choose NE
Explorer.
b. In the navigation tree, choose GPON > GPON Management.
c. In the window on the right, choose GPON ONU.
d. On the GPON ONU tab page, set the search criteria to find the GPON ONU
records.
e. Select an ONT from the list, right-click, and choose Bind VAS Profile from the
shortcut menu. In the dialog box that is displayed, choose the created profile, and
click OK to complete profile binding.
----End
Result
The user can watch program1 on the TV.
Configuration File
vlan 1000 smart
port vlan 1000 0/19 0
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
202
