Procedure
Step 1 Configure parameters of the voice WAN port.

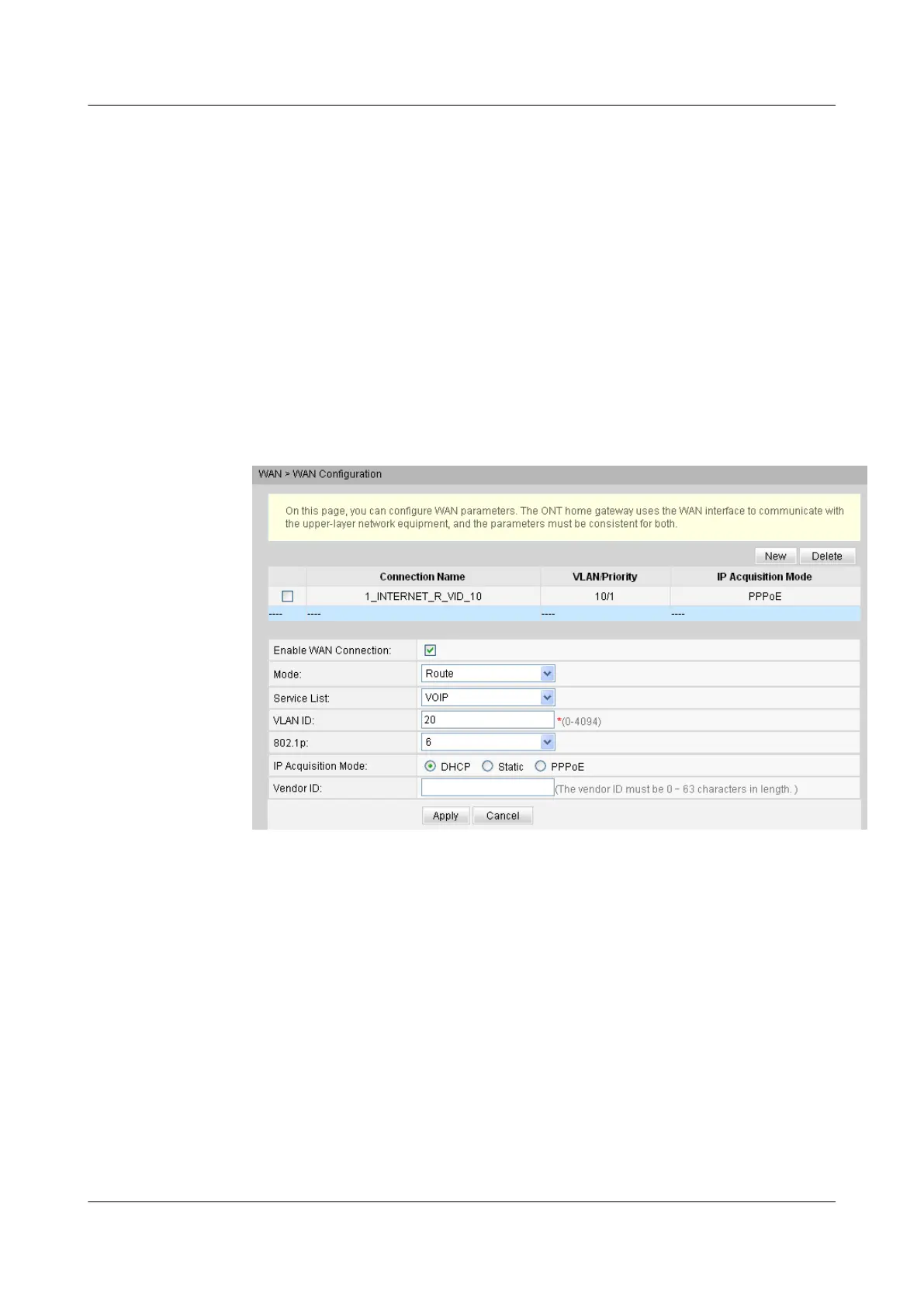

1. In the navigation tree, choose WAN > WAN Configuration.
2. In the right pane, click New. In the dialog box that is displayed, configure parameters of
the WAN port as follows:
l WAN Connection: Enable
l Service List: VoIP (For configuring the VoIP service, VoIP or a combination containing
VoIP needs to be selected.)
l Mode: Route
l VLAN ID: 20 (The VLAN ID of the ONT must be the same as the user-side VLAN ID
configured on the OLT.)
l 802.1p: 6
l IP Acquisition Mode: DHCP
3. Click Apply to apply the configuration.
Step 2 Configure the parameters of the H.248-based voice interface.
1. In the navigation tree, choose Voice > VoIP Interface Configuration.
2. In the right pane, configure the parameters of the H.248-based voice interface as follows
(other parameters use the default settings):
l Set MGC Address below Primary Server to 200.200.200.200.
l MID Format: DomainName
l MG Domain: 6877687714852901
l Signaling Port: 1_VOIP_R_VID_20
l Region: CN – China
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
225
