l The ONT is connected to the GPBC card of the OLT through an optical fiber.
l The broadband remote access server (BRAS) provides the authentication, authorization,
and accounting (AAA) functions.

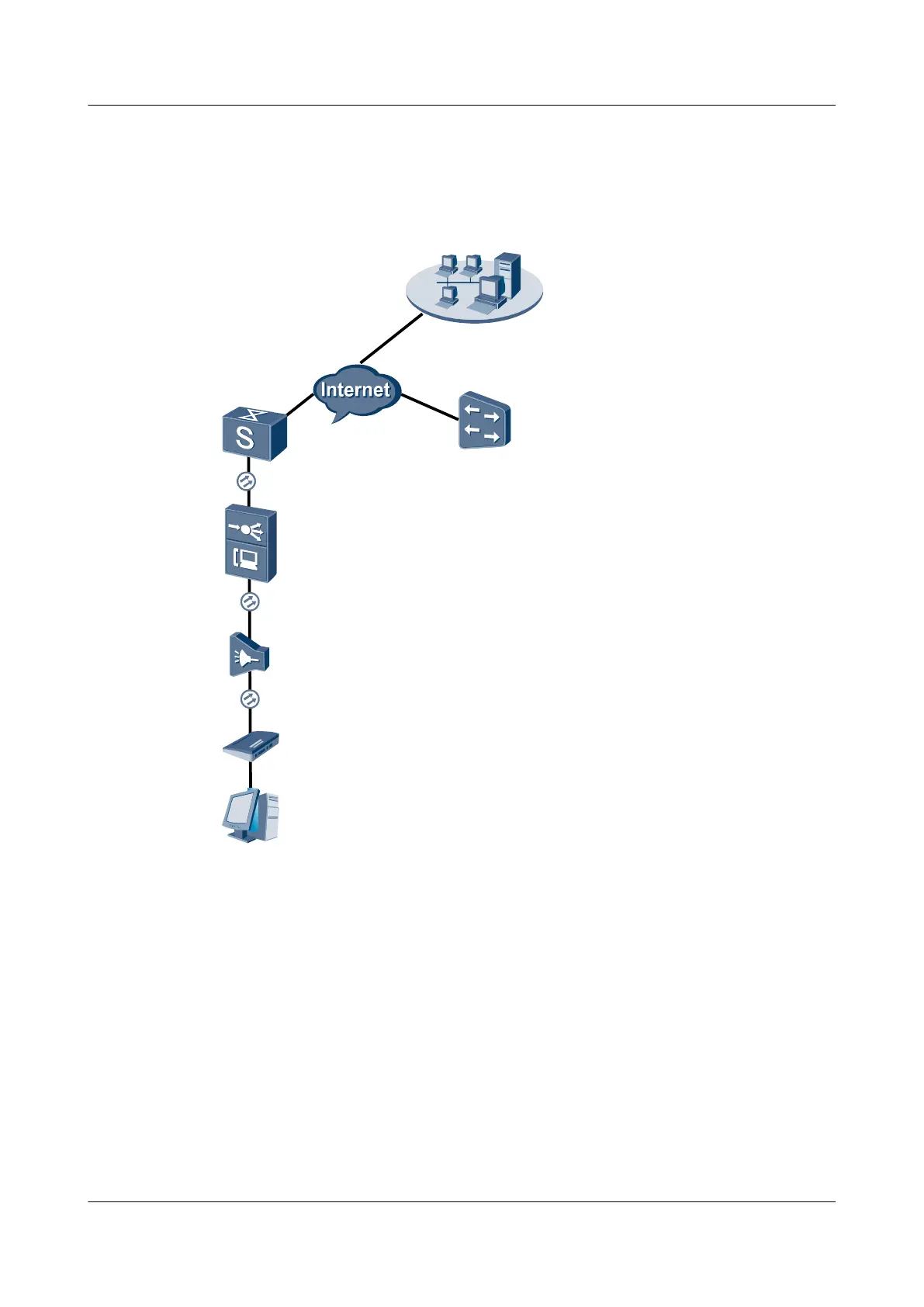

Figure 3-1 Configuring the GPON FTTH Internet service
OLT
ONT
PC
BRAS
LAN Switch
Optical splitter
U2000
Procedure
l Add the ONT to the U2000 in profile mode.
1. Configure an MEF IP traffic profile.
a. Choose Configuration > Access Profile Management from the main menu. In
the dialog box that is displayed, choose Traffic Profile from the navigation tree.
b. Click the MEF IP Traffic Profile tab.
c. Right-click and choose Add Global Profile from the shortcut menu.
d. In the dialog box that is displayed, set the parameters.
– Name: FTTx
– CIR: 20480
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
