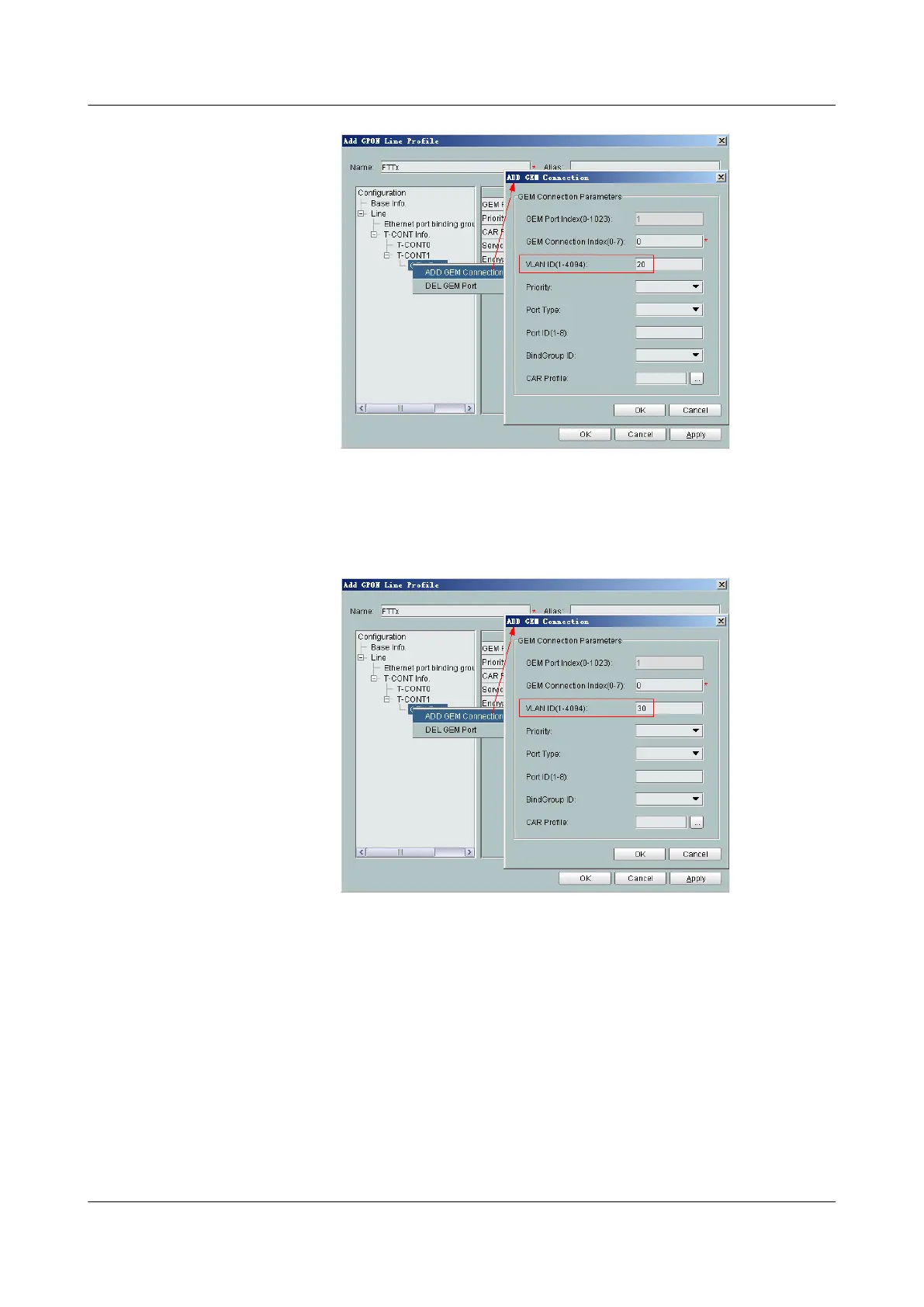

– Right-click GEM Port1 in the navigation tree and choose Add GEM
Connection from the shortcut menu. In the dialog box that is displayed, set
the parameter.
– GEM Connection Index: 2 (this parameter is set to 2 automatically)
– VLAN ID: 30 (Multicast user-side VLAN ID)
e. Click OK.
f. In the information list, right-click the record and choose Download to NE from
the shortcut menu.
g. In the dialog box that is displayed, select the required NE(s), and click OK.
4. Configure a service profile.
The service profile type should be consistent with the actual ONT type.
The number of ports configured in the service profile must be the same as the actual
number of ONT ports. The flowing table lists the port capabilities ofHG8010/HG8110/
HG8240/HG8245/HG8247/HG8447. The HG8247 is used as an example.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
68
