NOTE
If the upper-layer network requires isolation of media streams from signaling streams, create
different traffic streams for the media streams and signaling streams on the OLT, create a
WAN port named WAN-RTP on the ONT, and set this WAN port to a media WAN port.

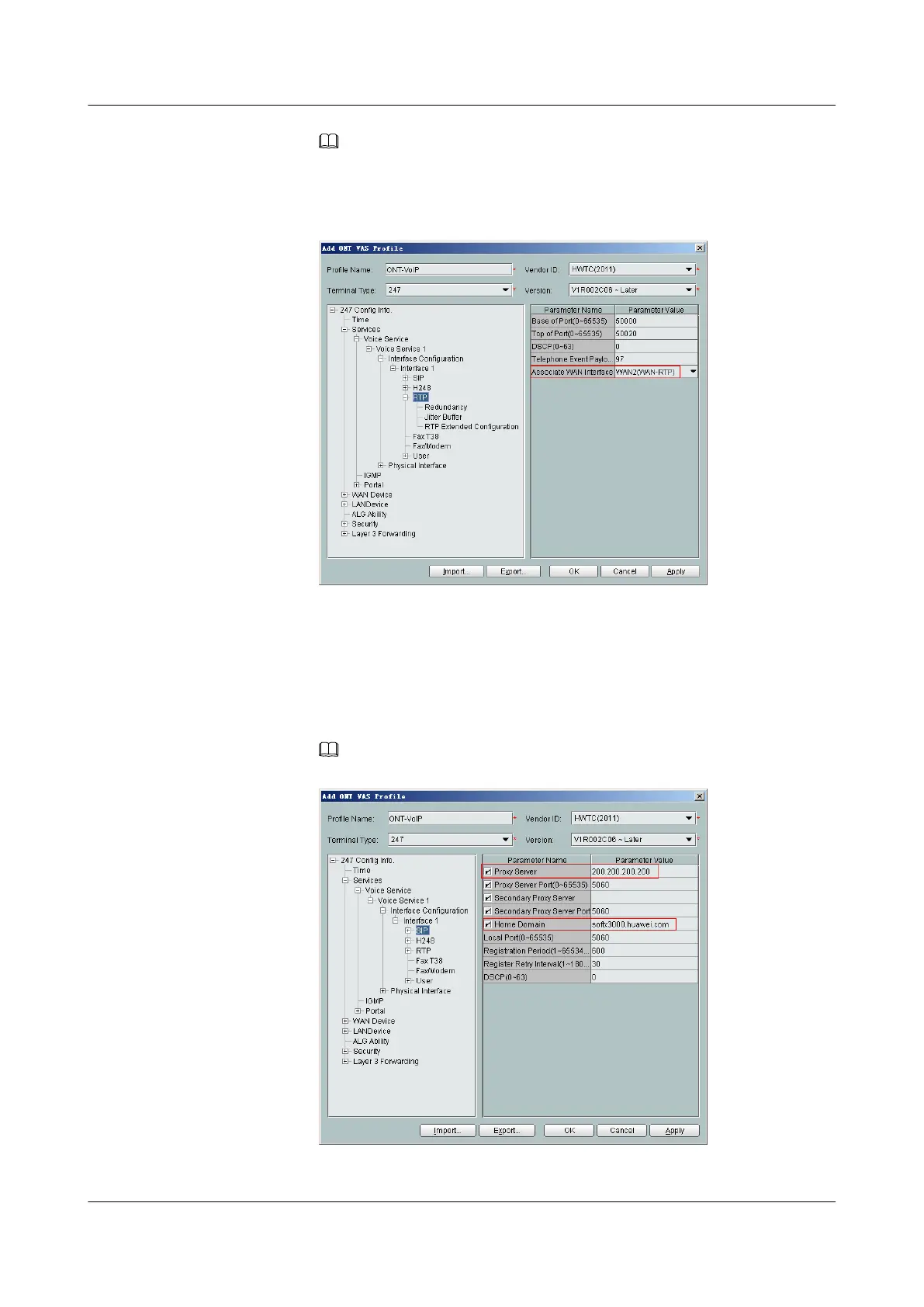

Specifically, choose Interface 1 > RTP and set Associate WAN Interface to WAN2(WAN-
RTP).
f. Configure SIP protocol parameters.
In the navigation tree, choose Services > Voice Service > Voice Service 1 >
Interface configuration > Interface 1 > SIP. Select SIP and enter (or select) a
proper value.
– Proxy Server: 200.200.200.200
– Home Domain: softx3000.huawei.com
NOTE
If dual-homing is configured, Secondary Proxy Server must be set.
g. Configure the voice users.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 3 Configuration
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
91
