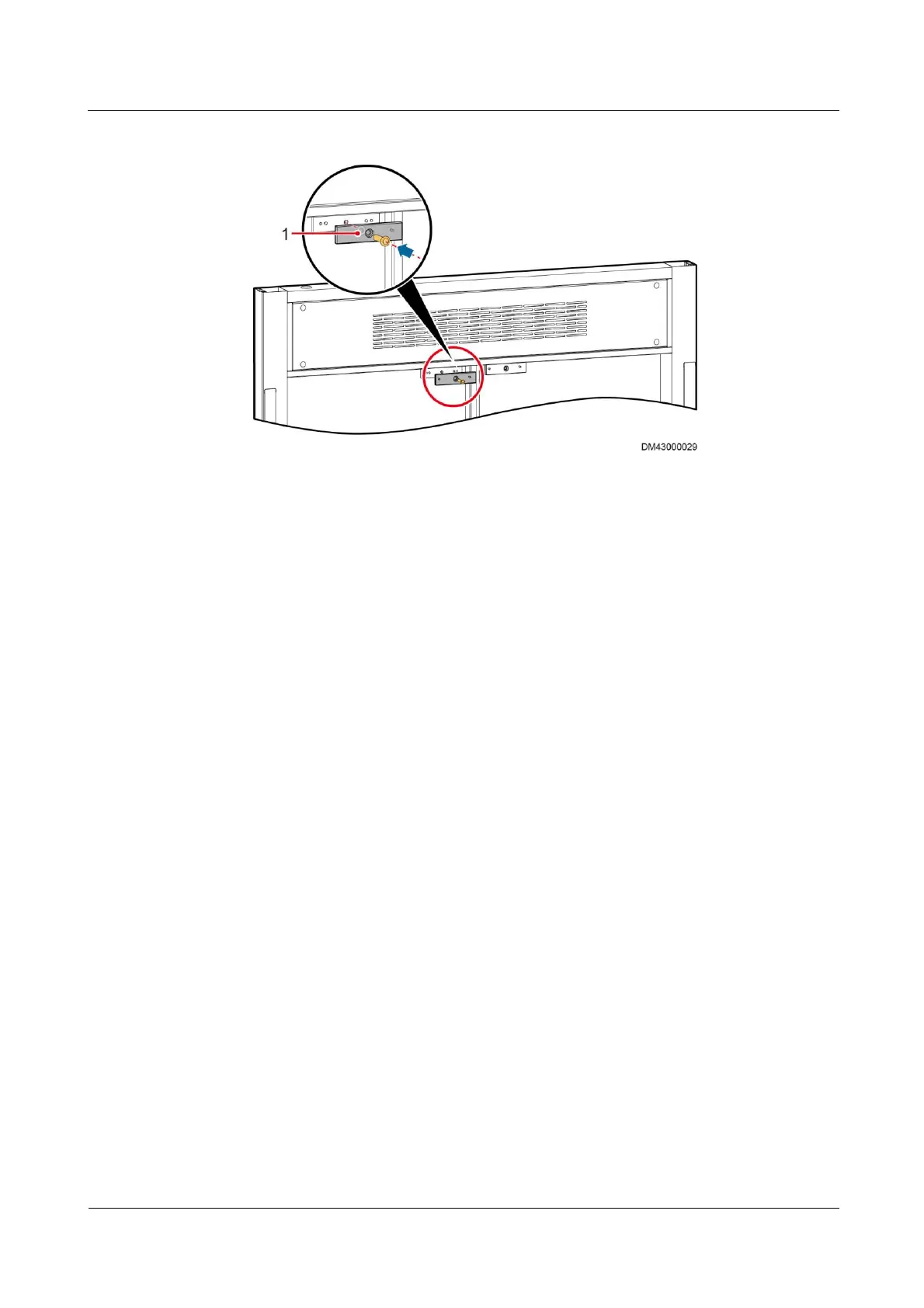

Figure 5-84 Installing a magnet
Step 7 (Optional) Adjust the magnet.
If the magnet does not work properly after power-on, check that:
1. The magnet provides magnetic force by attaching magnetizable iron parts to it.
2. The double-door magnetic lock is aligned with the magnet face-to-face.
3. No gap exists between the double-door magnetic lock and the magnet.
If any of the preceding conditions is not met, troubleshoot the magnet as follows:
1. Check the circuit and rectify any circuit fault.
2. Adjust the magnet base and the door panel to align the magnetic lock with the magnet
face-to-face. Ensure that the deviation is minimum.
3. If a gap exists between the double-door magnetic lock and the magnet, rectify the fault as
shown by (1) in Figure 5-85.
4. If the magnet is not level, use a spacer shown by (2) in Figure 5-85 to adjust the magnet
levelness.
