● The PSUs are protected against short circuit. Double-pole fuse is provided for
the PSUs with dual input live wires.
● Contact your local Huawei sales representative or use the Computing
Product Compatibility Checker to determine the components to be used.
For a server congured with one or two 1500 W Platinum AC PSUs:
● When the input voltage is from 100 V AC to 132 V AC, the output power drops to 1000
W.
● Two 1500 W AC Platinum PSUs can serve as 1700 W PSUs.

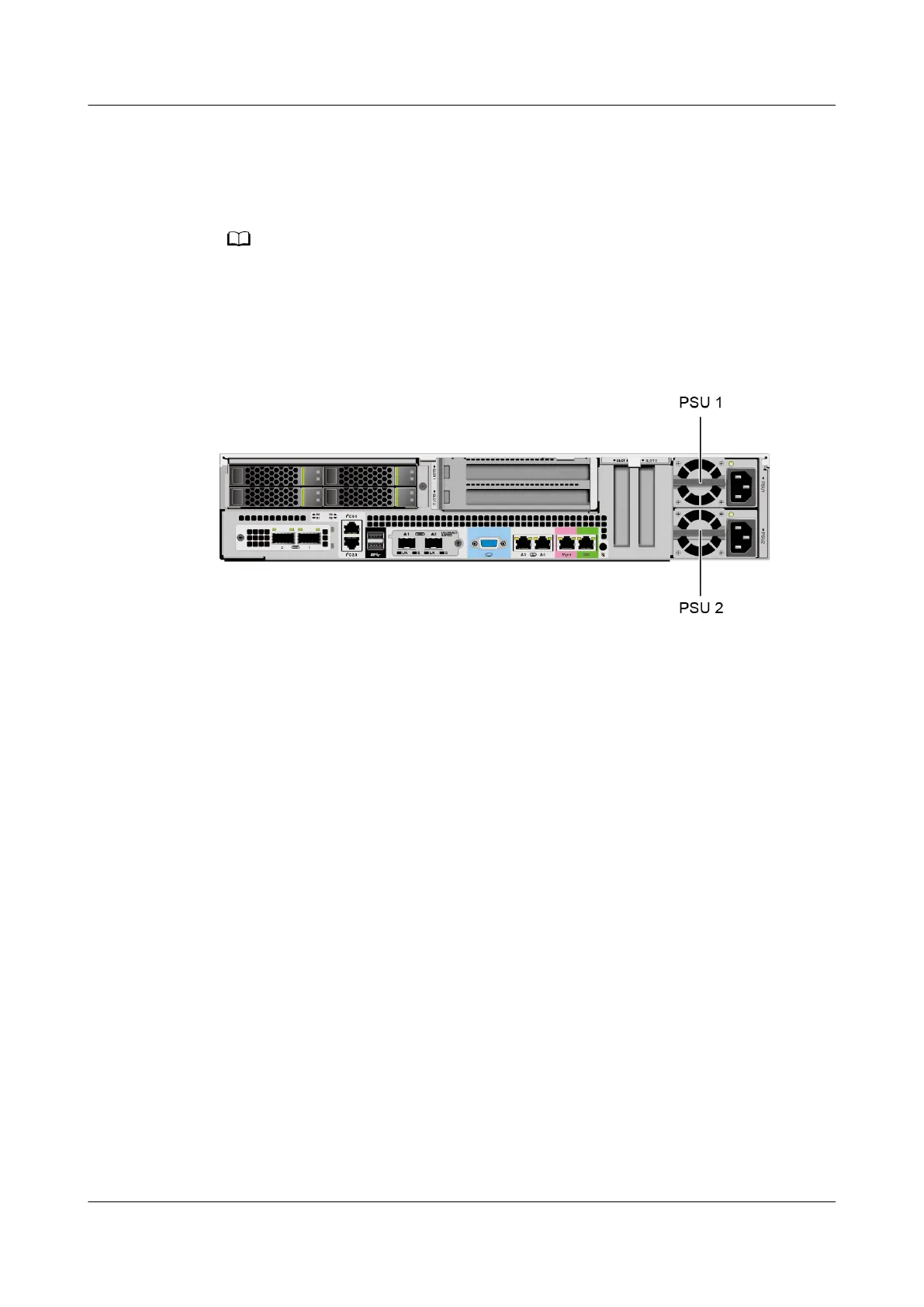

Figure 5-23 PSU positions
5.9 Fans
● The server supports
ve fan modules.
● The fan modules are hot-swappable.
● The server tolerates failure of a single fan.
● The fan speed can be adjusted.
● The same model of fan modules must be used in a server.
Huawei FusionServer Pro 2298 V5 Server
Technical White Paper 5 Hardware Description
Issue 05 (2020-09-03) Copyright © Huawei Technologies Co., Ltd. 38
