5.6.2 OCP 2.0 Mezzanine Cards
OCP 2.0 mezzanine cards provide network expansion capabilities.
● Supports on-demand
conguration.
● Contact your local Huawei sales representative or use the Computing
Product Compatibility Checker to determine the components to be used.
Table 5-15 OCP 2.0 mezzanine card supported by the 2298 V5
NIC Type Chip
Model
Port
Type
Number
of Ports
NC-SI WOL PXE
OCP 2.0
mezzanin
e card
CX5 25GE
optical
port
2 √ √ √
Indicator Positions
● OCP 2.0 mezzanine card indicators (2 x 25GE optical ports)

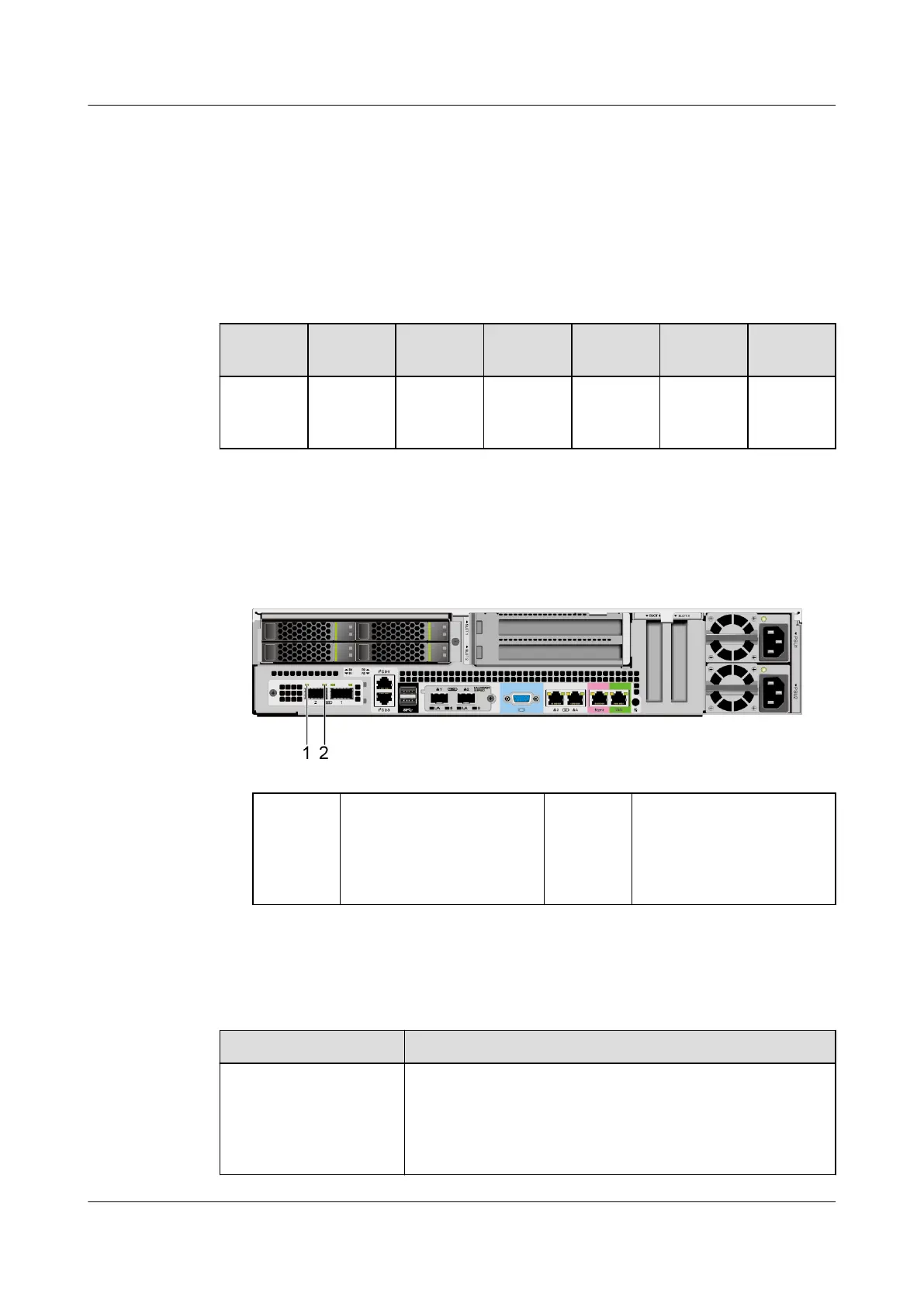

Figure 5-20 OCP 2.0 mezzanine card indicators (2 x 25GE optical ports)
1
Connection status
indicator/Data
transmission status
indicator for a 25GE
optical port
2 Data transmission rate
indicator for a 25GE
optical port
Indicator Description
Table 5-16 OCP 2.0 mezzanine card indicators
Indicator
Description
Connection status
indicator/Data
transmission status
indicator for a 25GE
optical port
● O: The network port is not connected.
● Blinking green: Data is being transmitted.
● Steady green: The network port is properly
connected.
