5.2.1 Appearance

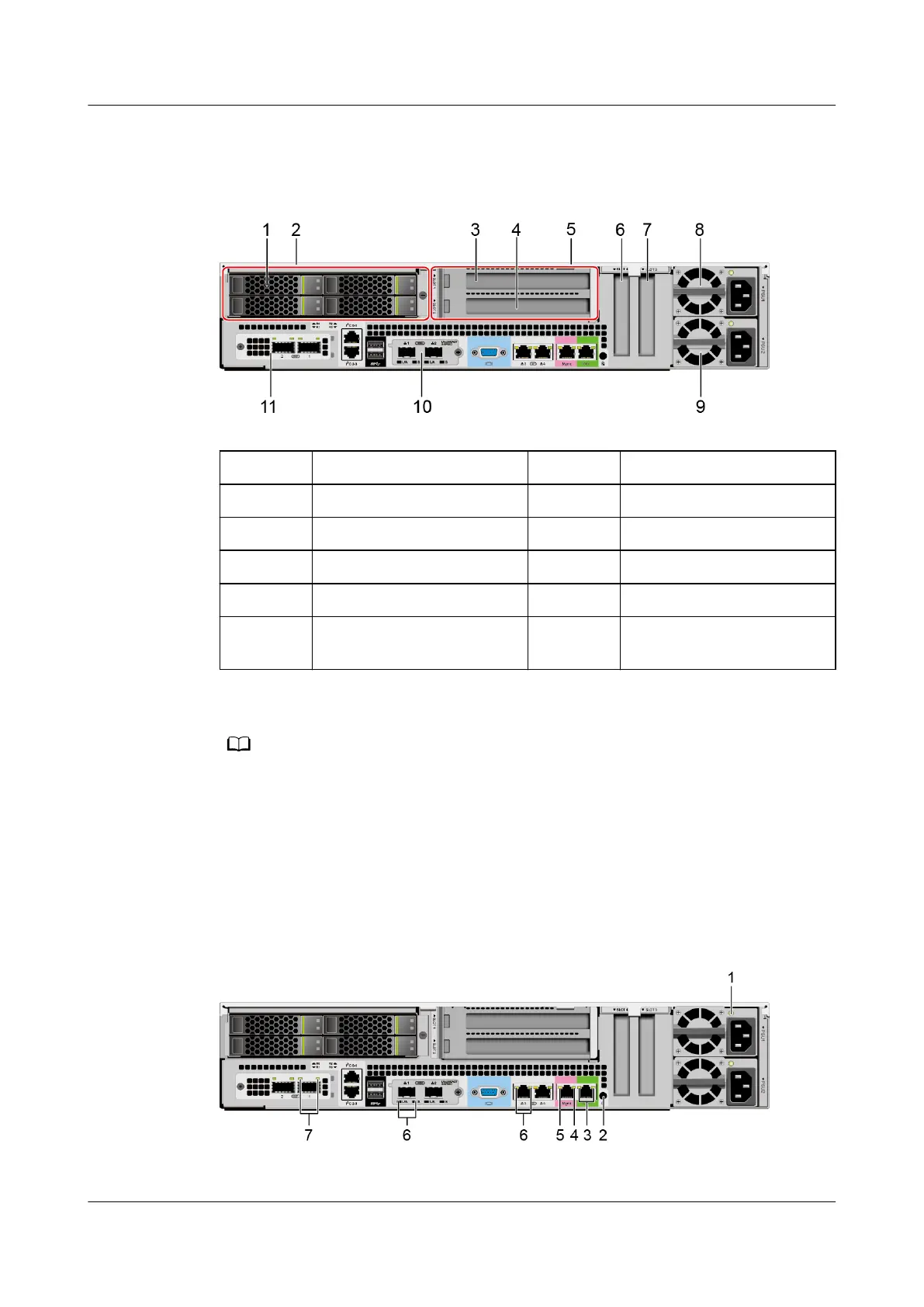

Figure 5-4 Rear view
1 SAS/SATA/NVMe drives 2 Rear drive module
3 PCIe Slot1 4 PCIe Slot2
5 PCIe riser module 6 PCIe Slot4
7 PCIe Slot3 8 PSU 1
9 PSU 2 10 LOM
11 (Optional) OCP 2.0
mezzanine card
- -
NO TE
● For details about the LOM and OCP 2.0 mezzanine card, see 5.6 Network.
● The preceding gure is for reference only.
5.2.2 Indicators
Indicator Positions
Figure 5-5 Indicators on the rear panel
